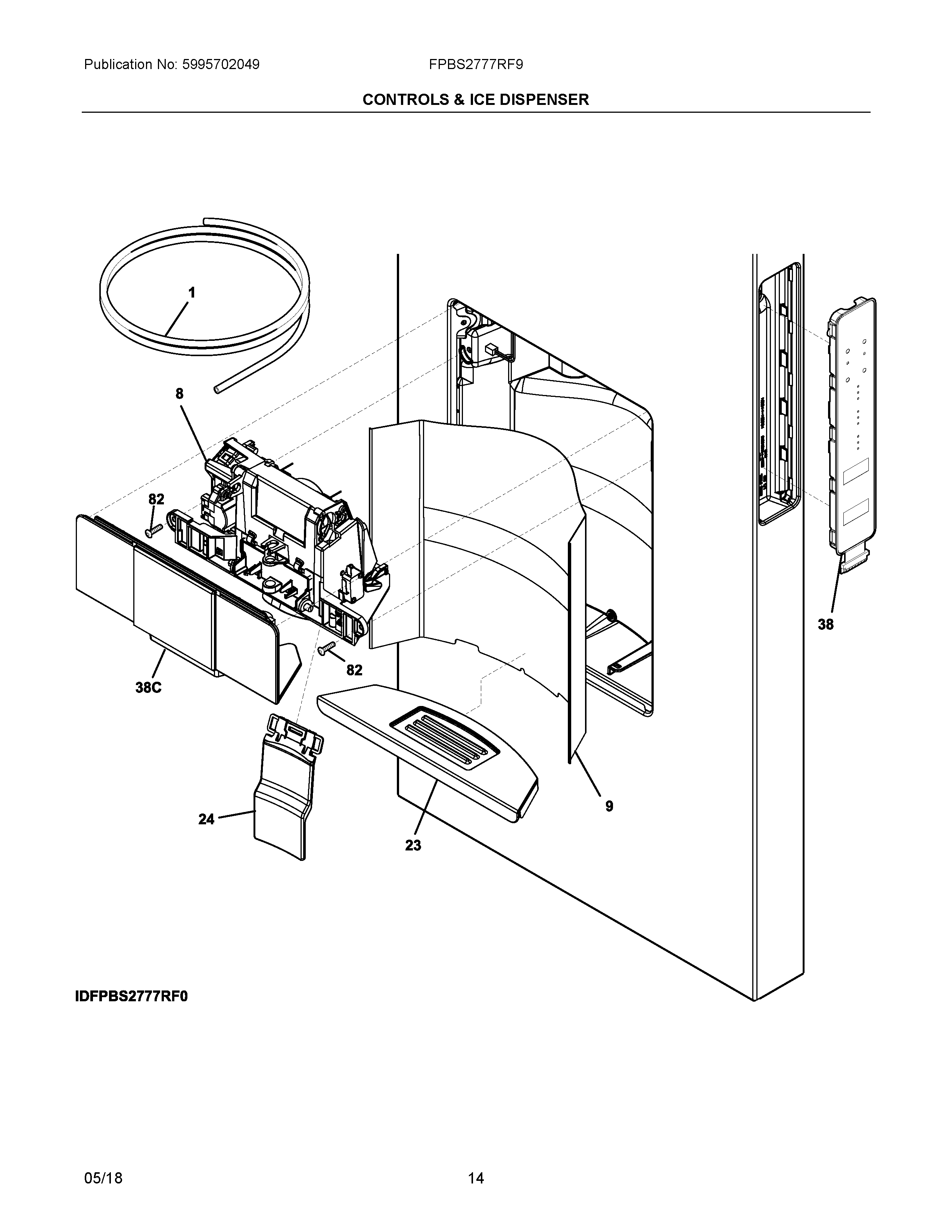

FPBS2777RF9 07 – CONTROLS & ICE DISPENSER

Products

Position	Product
NI	5304501175 Frigidaire Harness
NI	242040806 Frigidaire Refrigerator Wiring Harness
NI	5303918744 Frigidaire Refrigerator Kit
NIC	241965906 Frigidaire Refrigerator Water Tube
NI	241503901 Frigidaire Refrigerator P-1 Tube Adapter
NID	5303918602 Frigidaire Refrigerator Water Tube Kit
NIB	241964707 Frigidaire Refrigerator Water Tube
NIA	241920106 Frigidaire Fill Tube Kit
NIE	242200102 Frigidaire Refrigerator Clip
NI	241806601 Frigidaire Refrigerator Water Connector
NIF	242220119 Frigidaire Refrigerator Water Tube
NI	241510904 Frigidaire Refrigerator Dispenser Harness
1	218976436 Frigidaire Refrigerator Water Inlet Tube
8	5303918773 Frigidaire Refrigerator Dispenser and Paddle
9	809089801 Frigidaire Refrigerator Liner
23	5304501179 Frigidaire Sump Assembly
24	5304501181 Frigidaire Refrigerator Actuator
38C	809091203 Frigidaire Refrigerator Control Assembly
38	242048229 Frigidaire Refrigerator Black User Interface Assembly
82	241953902 Frigidaire Refrigerator Screw
