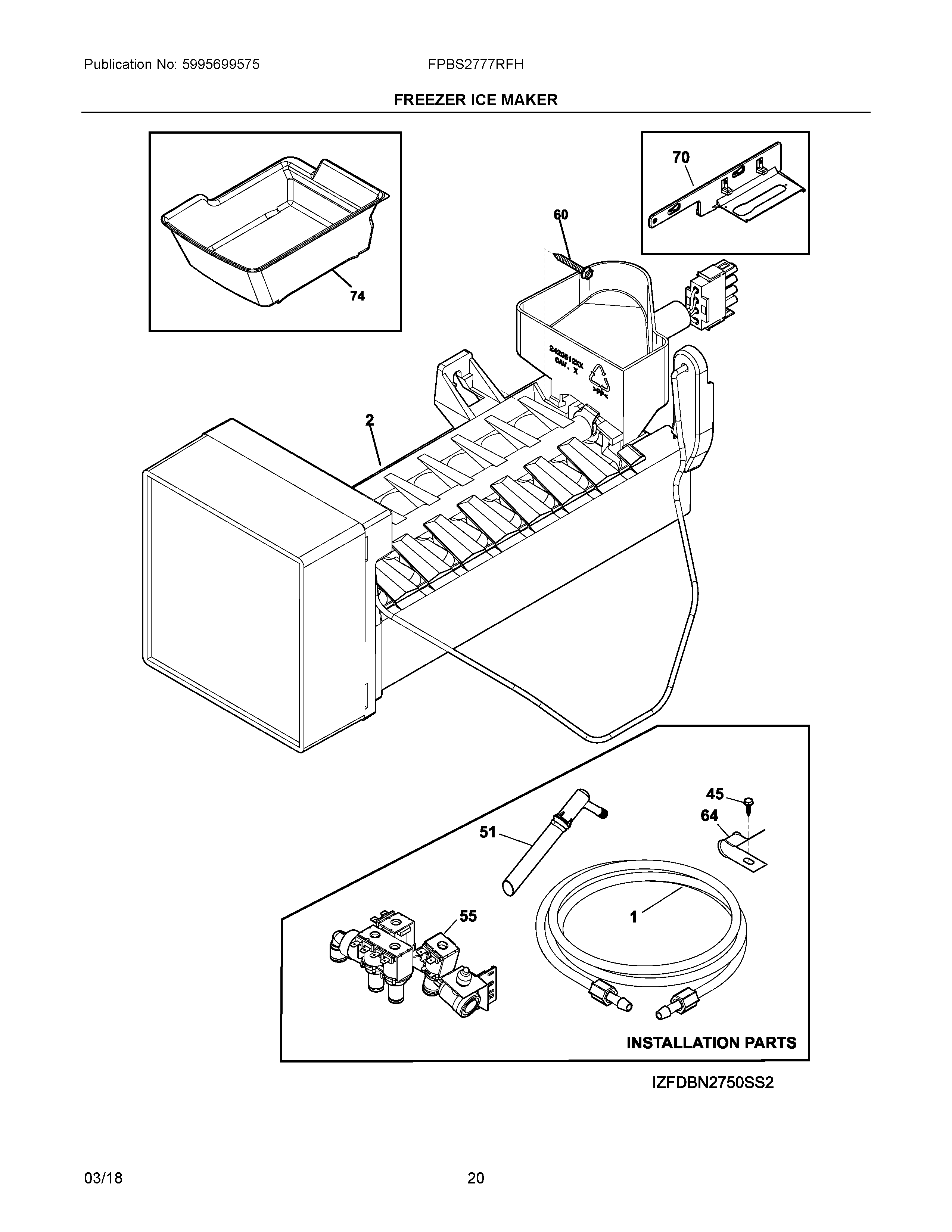

FPBS2777RFH 10 – FREEZER ICE MAKER

FPBS2777RFH 10 – FREEZER ICE MAKER

Written by

in

FPBS2777RFH 10 – FREEZER ICE MAKER

Products

PositionProduct
NI240396801 Frigidaire Refrigerator Tube Clamp
NI241503901 Frigidaire Refrigerator P-1 Tube Adapter
NIB241964707 Frigidaire Refrigerator Water Tube
NIA241920106 Frigidaire Fill Tube Kit
NIB240363602 Frigidaire Refrigerator Shoulder Screw
NIC241965906 Frigidaire Refrigerator Water Tube
NIA218709101 Frigidaire Refrigerator Handle Mounting Screw
NIA240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
1218976436 Frigidaire Refrigerator Water Inlet Tube
2241798233 Frigidaire Refrigerator Ice Maker
455304455650 Frigidaire Refrigerator Screw
515303918602 Frigidaire Refrigerator Water Tube Kit
55QUAD WATER VALVE
605304455852 Frigidaire Refrigerator Screw
645304455846 Frigidaire Refrigerator Clamp
70242041701 Frigidaire Refrigerator Ice Maker Bracket
745304504277 Frigidaire Refrigerator Ice Container
