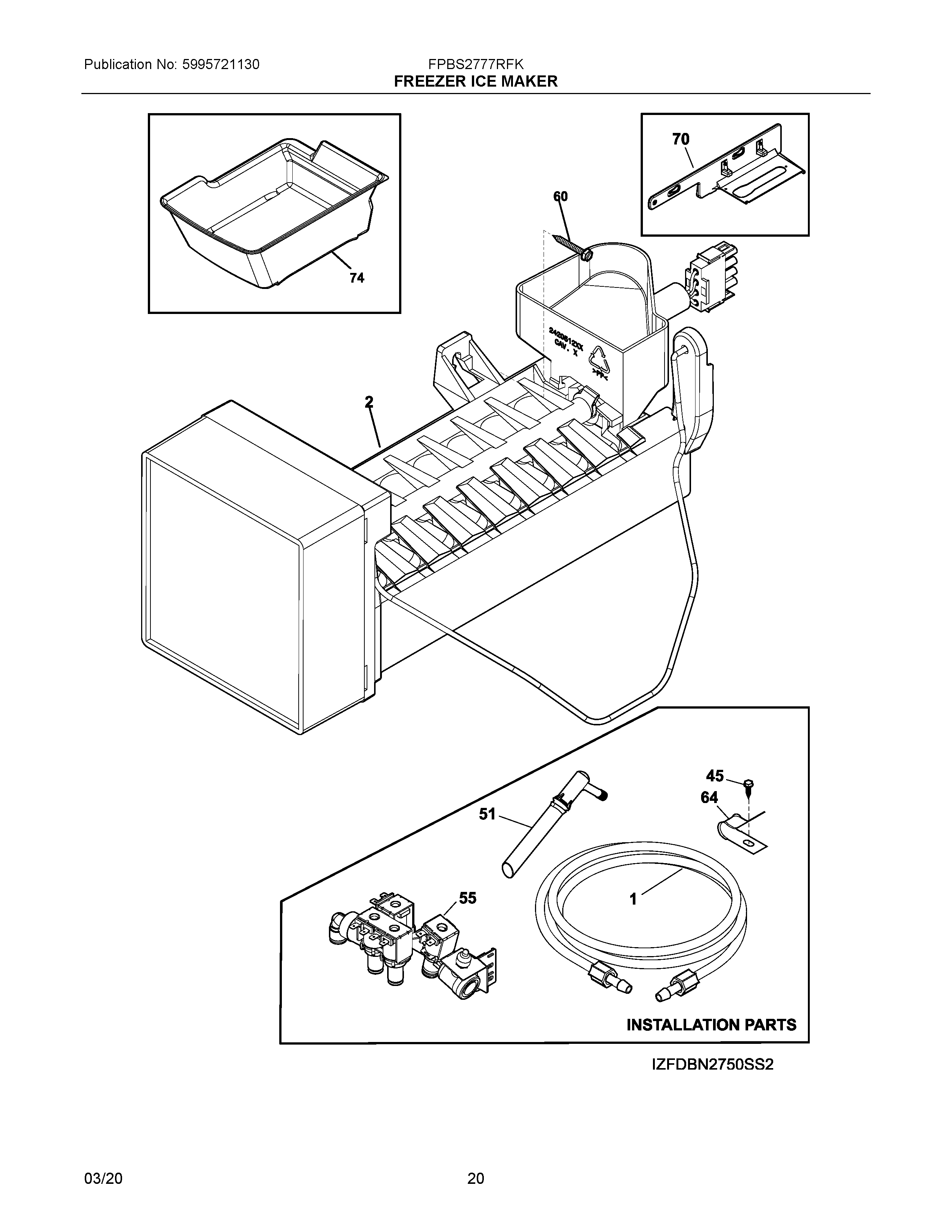

FPBS2777RFK 10 – FREEZER ICE MAKER

FPBS2777RFK 10 – FREEZER ICE MAKER

Written by

in

FPBS2777RFK 10 – FREEZER ICE MAKER

Products

PositionProduct
NIB241965906 Frigidaire Refrigerator Water Tube
NI241503901 Frigidaire Refrigerator P-1 Tube Adapter
NIA241964707 Frigidaire Refrigerator Water Tube
NIC242200102 Frigidaire Refrigerator Clip
NIB240363602 Frigidaire Refrigerator Shoulder Screw
NI241806601 Frigidaire Refrigerator Water Connector
NIA218709101 Frigidaire Refrigerator Handle Mounting Screw
NIA240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
1218976436 Frigidaire Refrigerator Water Inlet Tube
2241798233 Frigidaire Refrigerator Ice Maker
455304455650 Frigidaire Refrigerator Screw
515303918602 Frigidaire Refrigerator Water Tube Kit
55QUAD WATER VALVE
605304455852 Frigidaire Refrigerator Screw
64240396801 Frigidaire Refrigerator Tube Clamp
70242041701 Frigidaire Refrigerator Ice Maker Bracket
745304504277 Frigidaire Refrigerator Ice Container
