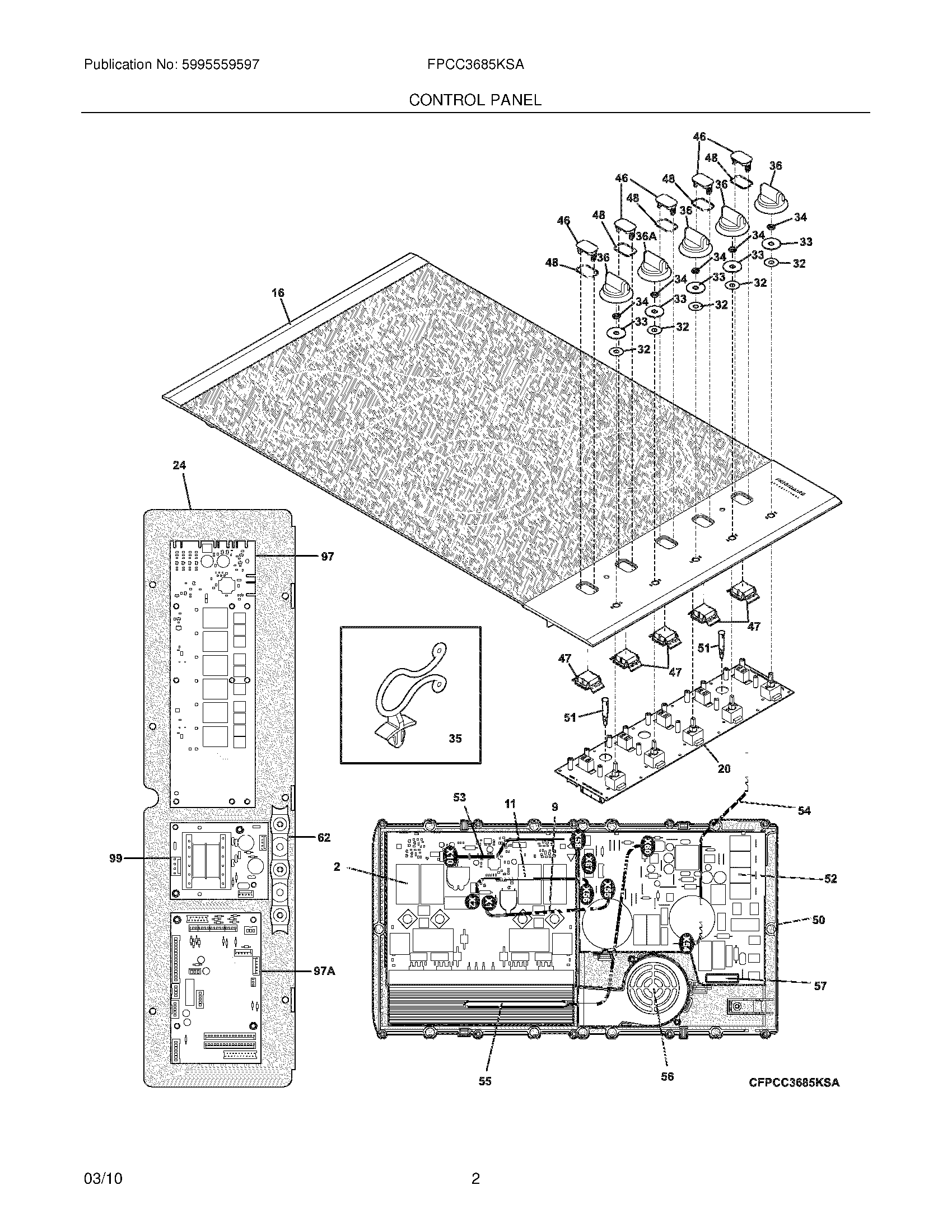

FPCC3685KSA 03 – CONTROL PANEL

Products

Position	Product
NI	SCREW,TRUSS HEAD,8-18 X 0.375
NI	WCI 5304475958
NI	WCI 5304475957
NI	WCI 318402376
NI	WCI 318402374
NI	WCI 318532141
NI	Screw,7-19 x 1/2`` ,(11) ,housing ring
NI	SCREW, 6-32 X 3/8", (4)
NI	5303323140 Frigidaire Oven Screw
NI	NUT, KEPS, 8-32, (2)
NI	5304517813 Frigidaire Harness
NI	316205500 Frigidaire Oven Nut
NI	5304462994 Frigidaire Oven Screw
2	318347100 Frigidaire Oven Generator
9	WCI 318052580
11	WCI 318052579
16	WCI 318079242
20	WCI 316543605
24	WCI 318567500
32	318086007 Frigidaire Washer Assembly
33	318146012 Frigidaire Oven Bushing
34	316247700 Frigidaire Oven Nut
35	216273000 Frigidaire Refrigerator Strap
36	WCI 316564609
36A	WCI 316564612
46	318319020 Frigidaire Oven Lens
47	CLAMP, LENS
48	GASKET, O'RING
50	WCI 318329620
51	WCI 318250409
52	WCI 318347010
53	WCI 318348002
54	Groung Wire,X54/6
55	WCI 318349910
56	WCI 318346910
57	318373300 Frigidaire Oven Fuse
62	5304409888 Frigidaire Oven Terminal Block with Hardware
97	WCI 318388400
97A	WCI 316442070
99	316435703 Frigidaire Oven Board
