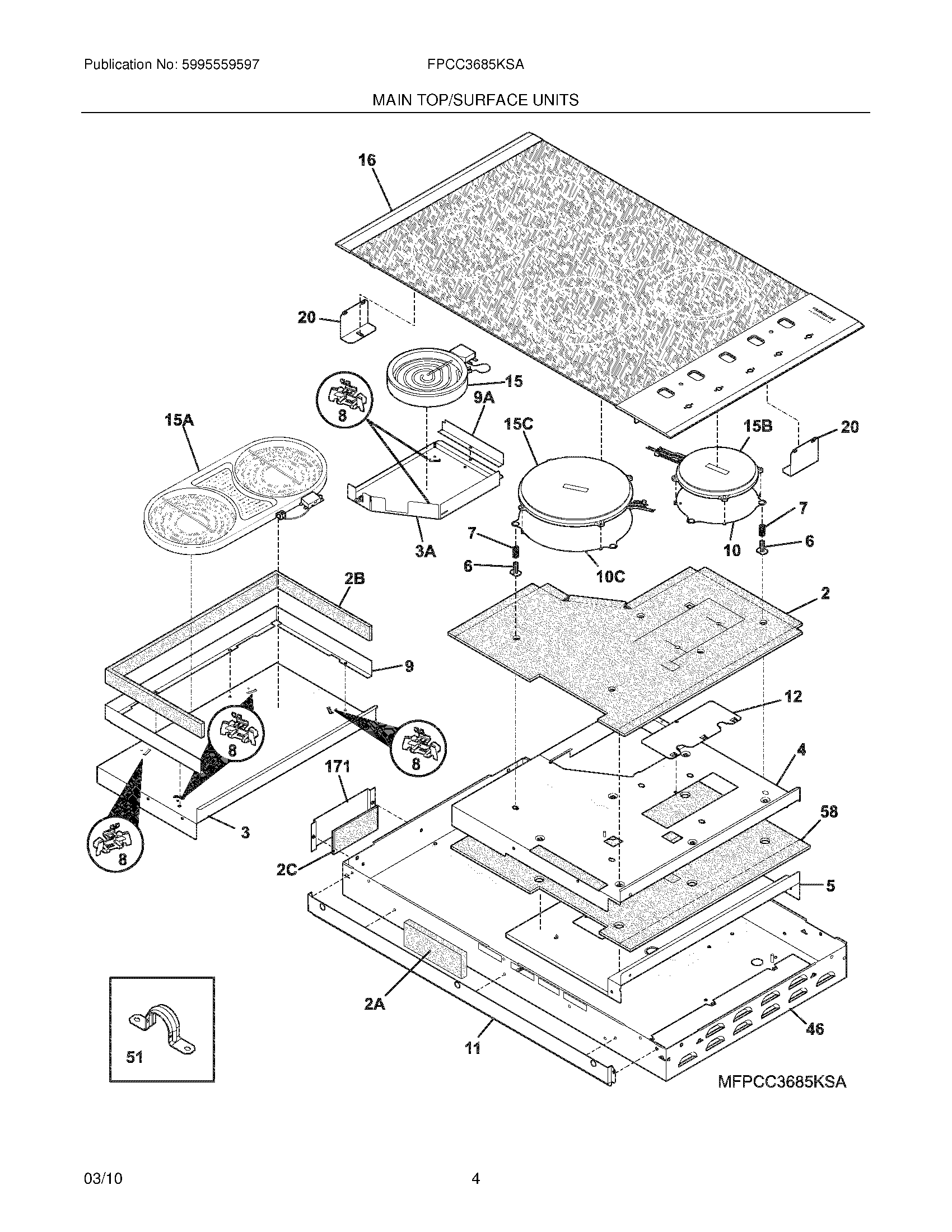

FPCC3685KSA 05 – MAINTOP/SURFACE UNITSadmin2025-04-26T08:52:30+00:00FPCC3685KSA 05 – MAINTOP/SURFACE UNITS
Products
| Position | Product |
|---|
| NI | 5303300265 Frigidaire Oven Screw |
| NI | WCI 318394491 |
| NI | WCI 318402414 |
| NI | 5304424462 Frigidaire Foam Tape |
| NI | NUT, KEPS, 8-32, (2) |
| NI | 5304462994 Frigidaire Oven Screw |
| NI | WCI 316459400 |
| NI | WCI 318163602 |
| NI | SCREW,TRUSS HEAD,8-18 X 0.375 |
| NI | 5305511218 Frigidaire Ceramabryte C12 18O |
| 2 | WCI 318330536 |
| 2B | WCI 318346064 |
| 2C | WCI 318346071 |
| 2A | WCI 318346063 |
| 3A | WCI 318568600 |
| 3 | WCI 318567200 |
| 4 | WCI 318567303 |
| 5 | WCI 318567601 |
| 6 | 318405000 Frigidaire Oven Pin |
| 7 | 318534300 Frigidaire Spring |
| 8 | Spring,radiant heater ,(4) |
| 9A | WCI 318576501 |
| 9 | WCI 318576500 |
| 10 | WCI 318330405 |
| 10C | WCI 318330408 |
| 11 | DEFLECTOR, OUTER |
| 12 | WCI 318577900 |
| 15B | Element,induction coil ,145MM ,right rear |
| 15C | Element,induction coil ,260MM ,right front |
| 15A | 318258203 Frigidaire Oven Element |
| 15 | 318178110 Frigidaire Oven Range 6" Surface Element |
| 16 | WCI 318079242 |
| 20 | 318121902 Frigidaire Oven Bracket Assembly |
| 46 | WCI 318225451 |
| 51 | 318389600 Frigidaire Bracket Assembly |
| 58 | WCI 318330537 |
| 171 | WCI 318124912 |
