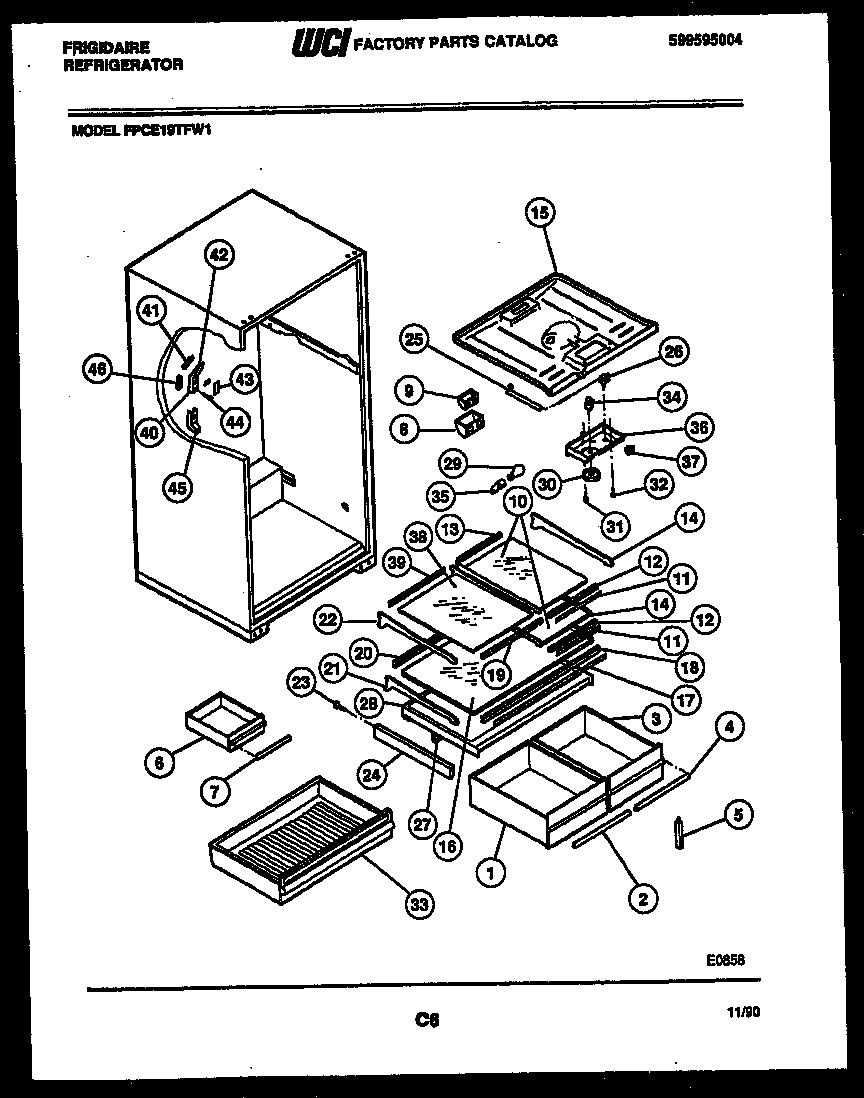

FPCE19TFA1 04 – SHELVES AND SUPPORTSadmin2025-04-26T08:52:11+00:00FPCE19TFA1 04 – SHELVES AND SUPPORTS
Products
| Position | Product |
|---|
| *39186 | EXTENSION, AIR DEFLECTOR, WITH INSULATION |
| *39186 | WCI 3200653 |
| *39186 | WCI 3200589 |
| 1 | PAN, CRISPER, LH |
| 2 | TRIM-PAN |
| 3 | WCI 3200571 |
| 4 | TRIM-PAN |
| 5 | SUPPORT, COVER |
| 6 | WCI 3200572 |
| 7 | WCI 3018986 |
| 8 | WCI 5303001448 |
| 9A | 5303001449 Frigidaire Refrigerator Seal |
| 9 | DEFLECTRO, AIR, W/SEAL |
| 10 | WCI 3200315 |
| 11 | TRIM-HALF SHELF (2) |
| 13 | WCI 3200317 |
| 14 | WCI 3200318 |
| 15 | TOP - REFRIGERATOR |
| 16 | WCI 3200573 |
| 17 | WCI 3200575 |
| 18 | WCI 3200321 |
| 19A | TRIM, MEAT SHELF |
| 19 | RETAINER-MEAT SHELF |
| 20 | WCI 3200576 |
| 21 | WCI 3200577 |
| 22 | WCI 3200328 |
| 23 | WCI 08014528 |
| 25 | WCI 3018891 |
| 26 | 215846604 Frigidaire Refrigerator Defrost Timer |
| 27 | GASKET-CRISPER COVER (NON-ILLUSTRATED) |
| 28A | WCI 3200579 |
| 28B | WCI 3200389 |
| 28C | WCI 5303200580 |
| 28 | WCI 5303018983 |
| 29 | 316538904 Frigidaire Oven Lamp Light |
| 30 | KNOB, TEMP CONTROL |
| 31 | 5304455649 Frigidaire Refrigerator Screw |
| 32 | WCI 5303001260 |
| 33 | WCI 3200584 |
| 33A | WCI 3200585 |
| 33B | HANGER-PAN LH |
| 33C | HANGER-PAN RH (NON-ILLUSTRATED) |
| 34 | WCI 5303018894 |
| 35 | 218906802 Frigidaire Light Lamp Socket |
| 36 | CONTROL BOX |
| 37 | WCI 5303018896 |
| 38 | WCI 3200330 |
| 39 | WCI 3200331 |
| 40 | CONTROL-DAMPER, MEAT KPR DUCT |
| 41 | INSULATION-AIR DUCT, UPPER |
| 42 | WCI 08009767 |
| 43 | WCI 3200588 |
| 44 | WCI 5308016568 |
| 45 | DUCT-MEAT KEEPER, LOWER |
| 46 | INSULATION-BULK (NON-ILLUSTRATED) |
