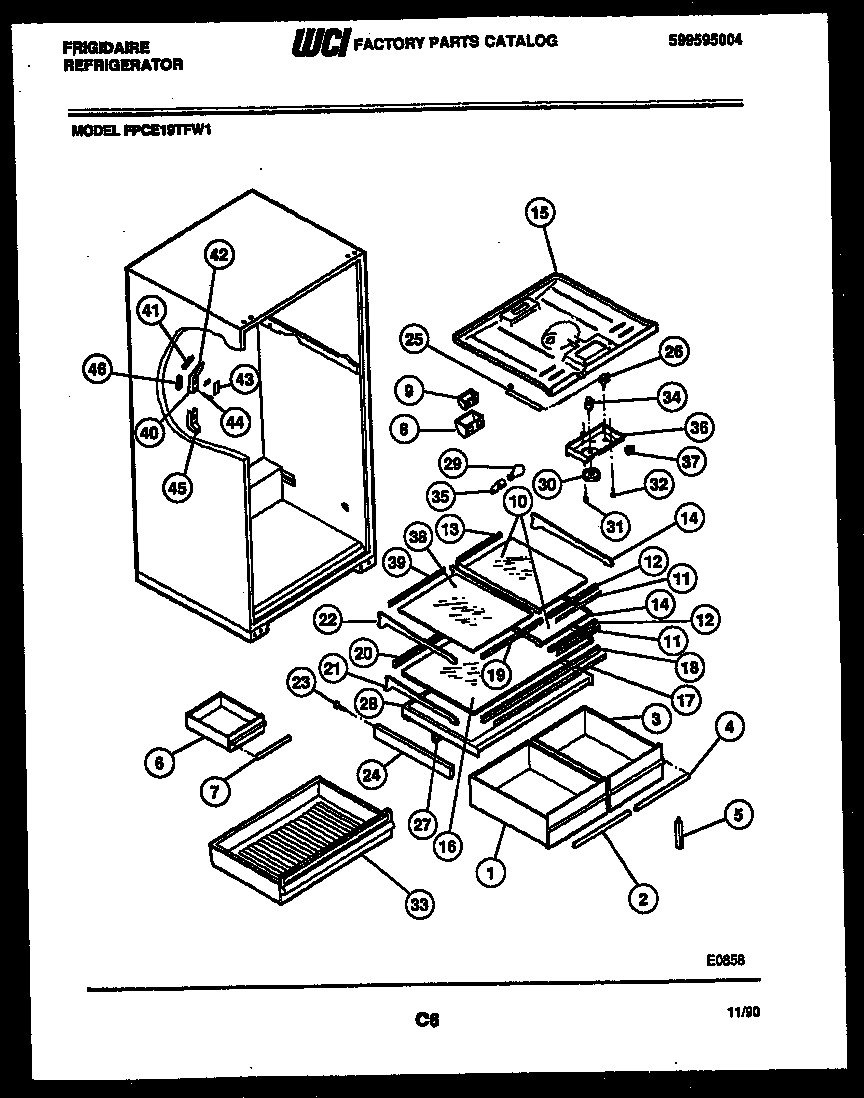

FPCE19TFF1 04 – SHELVES AND SUPPORTS

Products

Position	Product
*39186	EXTENSION, AIR DEFLECTOR, WITH INSULATION
*39186	WCI 3200653
*39186	WCI 3200589
1	PAN, CRISPER, LH
2	TRIM-PAN
3	WCI 3200571
4	TRIM-PAN
5	SUPPORT, COVER
6	WCI 3200572
7	WCI 3018986
8	WCI 5303001448
9A	5303001449 Frigidaire Refrigerator Seal
9	DEFLECTRO, AIR, W/SEAL
10	WCI 3200315
11	TRIM-HALF SHELF (2)
13	WCI 3200317
14	WCI 3200318
15	TOP – REFRIGERATOR
16	WCI 3200573
17	WCI 3200575
18	WCI 3200321
19A	TRIM, MEAT SHELF
19	RETAINER-MEAT SHELF
20	WCI 3200576
21	WCI 3200577
22	WCI 3200328
23	WCI 08014528
25	WCI 3018891
26	215846604 Frigidaire Refrigerator Defrost Timer
27	GASKET-CRISPER COVER (NON-ILLUSTRATED)
28A	WCI 3200579
28B	WCI 3200389
28C	WCI 5303200580
28	WCI 5303018983
29	316538904 Frigidaire Oven Lamp Light
30	KNOB, TEMP CONTROL
31	5304455649 Frigidaire Refrigerator Screw
32	WCI 5303001260
33	WCI 3200584
33A	WCI 3200585
33B	HANGER-PAN LH
33C	HANGER-PAN RH (NON-ILLUSTRATED)
34	WCI 5303018894
35	218906802 Frigidaire Light Lamp Socket
36	CONTROL BOX
37	WCI 5303018896
38	WCI 3200330
39	WCI 3200331
40	CONTROL-DAMPER, MEAT KPR DUCT
41	INSULATION-AIR DUCT, UPPER
42	WCI 08009767
43	WCI 3200588
44	WCI 5308016568
45	DUCT-MEAT KEEPER, LOWER
46	INSULATION-BULK (NON-ILLUSTRATED)
