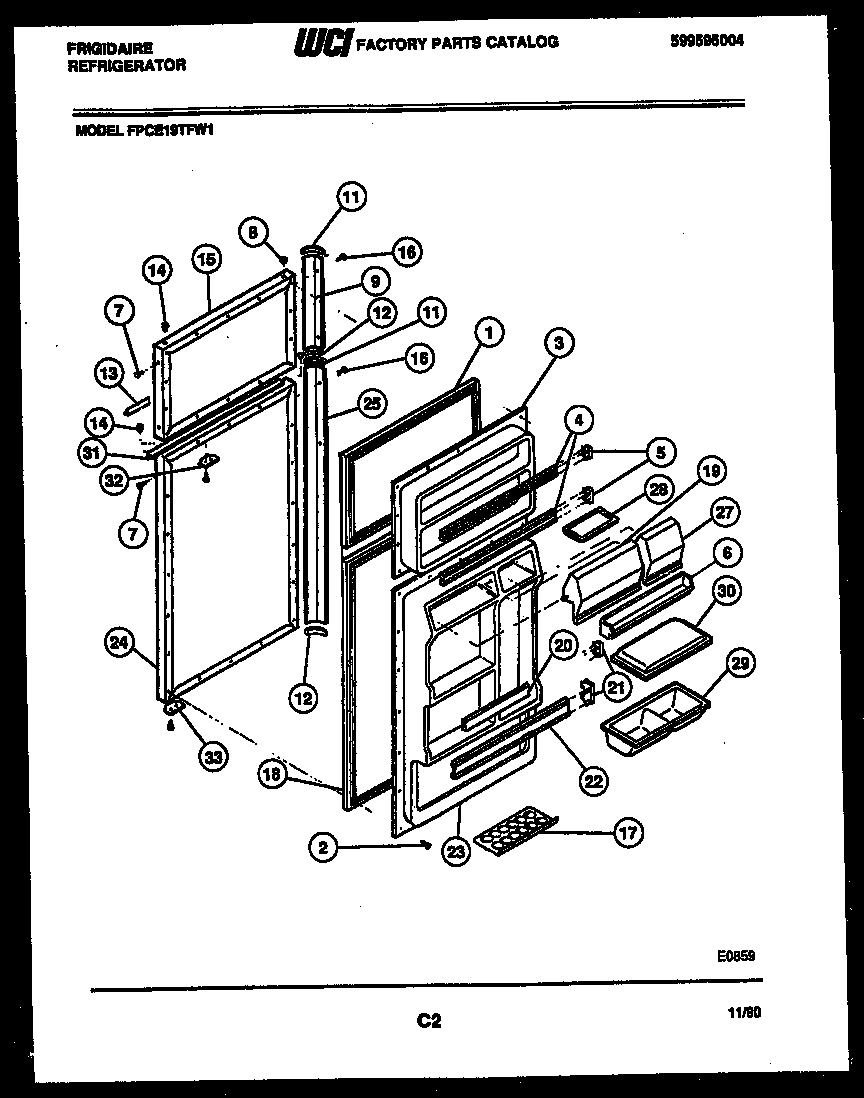

FPCE19TFW1 02 – DOOR PARTS

FPCE19TFW1 02 – DOOR PARTS

Written by

in

FPCE19TFW1 02 – DOOR PARTS

Products

PositionProduct
1GASKET-FRZR DOOR, BROWN, MAGNETIC
25304455651 Frigidaire Refrigerator Screw
3WCI 3018971
4WCI 3018972
5A5303323480 Frigidaire Refrigerator Door Bar End Cap Rh
55303323481 Frigidaire Refrigerator Left Hand Door Bar End Cap
6WCI 5303200412
7240494001 Frigidaire Refrigerator Plug Button
8PLUG-BUTTON, WHITE, HINGE BRG HOLE
9HANDLE-COMPLETE
11WCI 5308010239
12WCI 5303010238
13WCI 3201581
14BEARING-HINGE
15WCI 5308009931
16SCREW-HANDLE MTG, 8 CR TRUSS HD, 10(D) X 1/2
17215817806 Frigidaire Refrigerator Egg Tray
18GASKET-REFR DOOR, BROWN, MAGNETIC
19WCI 3018868
22A5303325990 Frigidaire Refrigerator Door Bar End Cap
22B5303325991 Frigidaire Refrigerator Door Bar Endcap
22215516220 Frigidaire Refrigerator Door Rack
23WCI 3200310
23AINSULATION-BULK (NON-ILLUSTRATED)
24WCI 5308009928
25HANDLE-COMPLETE
27DOOR-DAIRY
285308000716 Frigidaire Refrigerator Dish
29WCI 5303200413
30WCI 5303200414
31WCI 3200570
31ASNUGGER FINGER (NON-ILLUSTRATED)
32WCI 5308000255
33DOOR STOP, REFR SECTION
