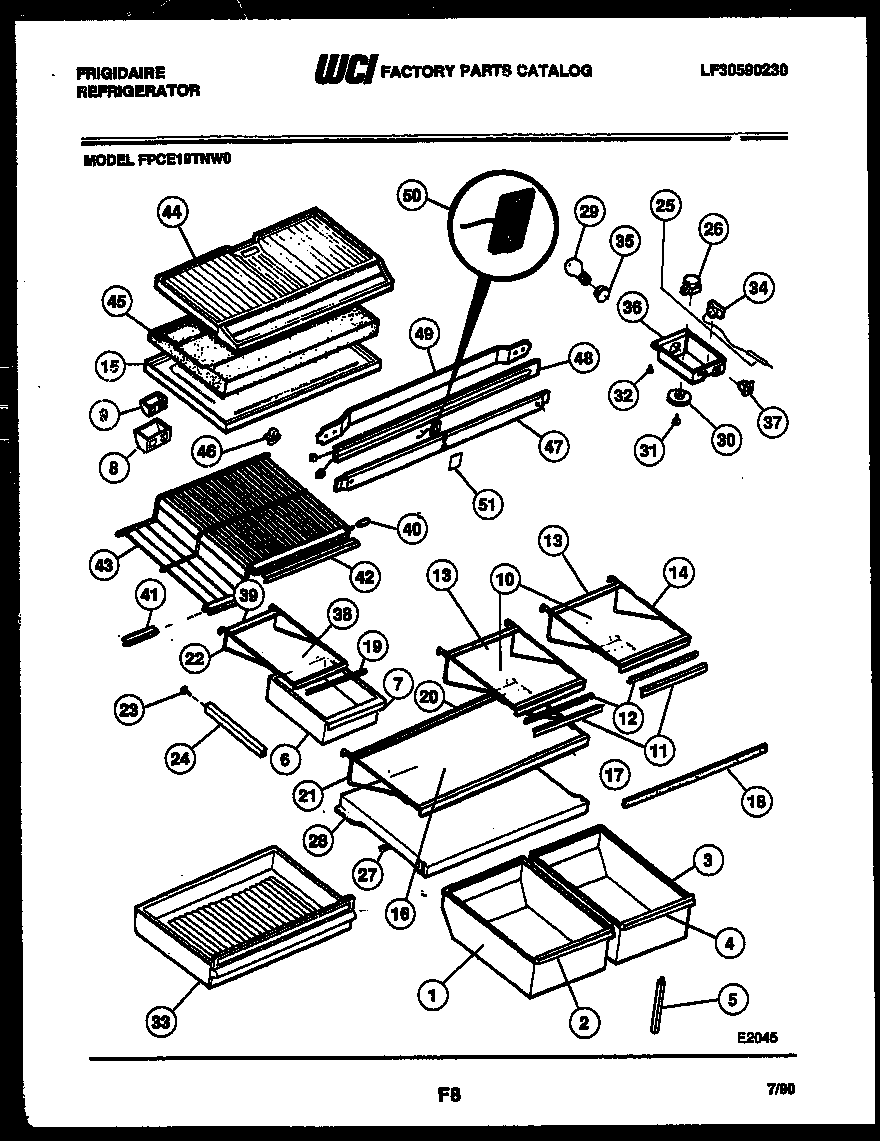

FPCE19TNF0 04 – SHELVES AND SUPPORTS

FPCE19TNF0 04 – SHELVES AND SUPPORTS

Written by

in

FPCE19TNF0 04 – SHELVES AND SUPPORTS

Products

PositionProduct
*368165303212918 Frigidaire Refrigerator Cont
*36816WCI 01121808
*36816WCI 08009824
1WCI 3200571
2WCI 3017222
3PAN, CRISPER, LH
4TRIM-PAN
5SUPPORT, COVER
6WCI 3200572
7WCI 3018986
8WCI 5303001448
9DEFLECTRO, AIR, W/SEAL
9AEXTENSION, AIR DEFLECTOR, WITH INSULATION
9B5303001449 Frigidaire Refrigerator Seal
15TOP – REFRIGERATOR
15AWCI 5303001380
16WCI 5303211964
17WCI 3200575
18WCI 5303211965
19RETAINER-GLASS, (3) (NON-ILLUSTRATED)
19ATRIM, MEAT SHELF
20WCI 5303211962
20AWCI 5303211966
21FRAME-FULL SHELF
22FRAME-SHELF (2)
23WCI 5308014528
25WCI 3018891
26215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
27GASKET-CRISPER COVER (NON-ILLUSTRATED)
28CWCI 5303200580
28WCI 5303018983
28AWCI 3200579
28BWCI 5303211968
29316538904 Frigidaire Oven Lamp Light
30WCI 53018893
31WCI 5303001260
325304455649 Frigidaire Refrigerator Screw
33BHANGER-PAN LH
33CHANGER-PAN RH (NON-ILLUSTRATED)
33WCI 3200584
33AWCI 53200585
34WCI 5303018894
35218906802 Frigidaire Light Lamp Socket
36CONTROL BOX
37WCI 5303018896
38GLASS, MEAT SHELF
39AWCI 3200589
39TRIM-HALF SHELF, MEAT KPR SHELF, REAR
40END CAP-SHELF,PROTECTOR
41TRIM-SHELF-FREEZER
42TRIM-SHELF-FREEZER
43SHELF-FREEZER-STEP
44WCI 5303211427
45WCI 03018994
45A3205266 Frigidaire Refrigerator Edge Protector
465309918806 Frigidaire Refrigerator Light Switch Door
48WCI 5303210351
49BWCI 5308012258
49ASPACER-MULLION MTG, STEEL
49WCI 5308010008
49CWASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
50AWCI 5303211925
50WCI 5303211924
