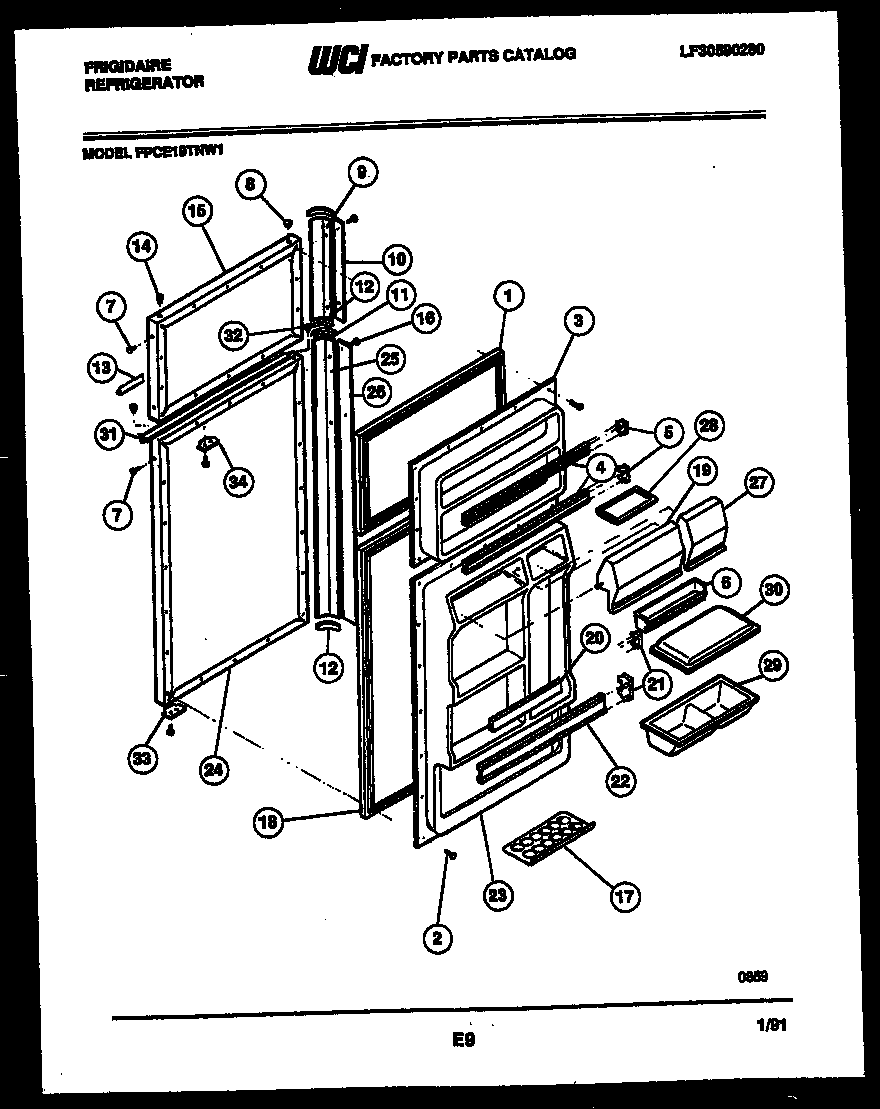

FPCE19TNL1 02 – DOOR PARTS

FPCE19TNL1 02 – DOOR PARTS

Written by

in

FPCE19TNL1 02 – DOOR PARTS

Products

PositionProduct
1GASKET-FRZR DOOR, BROWN, MAGNETIC
2218843801 Frigidaire Refrigerator Screw
3WCI 3018971
4WCI 3018972
55303323480 Frigidaire Refrigerator Door Bar End Cap Rh
5A5303323481 Frigidaire Refrigerator Left Hand Door Bar End Cap
6WCI 5303200412
7PLUG-BUTTON, ALMOND, HANDLE/DR STOP
8PLUG-BUTTON, ALMOND, HINGE BRG HOLE
9HANDLE-COMPLETE
11WCI 5308010239
12END CAP-BOTTOM (2)
13WCI 3201581
14BEARING-HINGE
15WCI 5308009933
16SCREW-HANDLE MTG, 8 CR TRUSS HD, 10(D) X 1/2
17215817806 Frigidaire Refrigerator Egg Tray
18GASKET-REFR DOOR, BROWN, MAGNETIC
19WCI 3018868
21A5303325990 Frigidaire Refrigerator Door Bar End Cap
215303325991 Frigidaire Refrigerator Door Bar Endcap
22215516220 Frigidaire Refrigerator Door Rack
23WCI 3200310
23AINSULATION-BULK (NON-ILLUSTRATED)
24WCI 5308009930
25HANDLE-COMPLETE
26WCI 5308010229
27DOOR-DAIRY
285308000716 Frigidaire Refrigerator Dish
29WCI 5303200413
30WCI 5303200414
31BWCI 5308011745
31ASNUGGER-FINGER (NON-ILLUSTRATED)
31WCI 5308009857
32WCI 5308009601
33DOOR STOP, REFR SECTION
34WCI 5308000255
