FPCE19TNL1 03 – CABINET PARTS

FPCE19TNL1 03 – CABINET PARTS

Written by

in

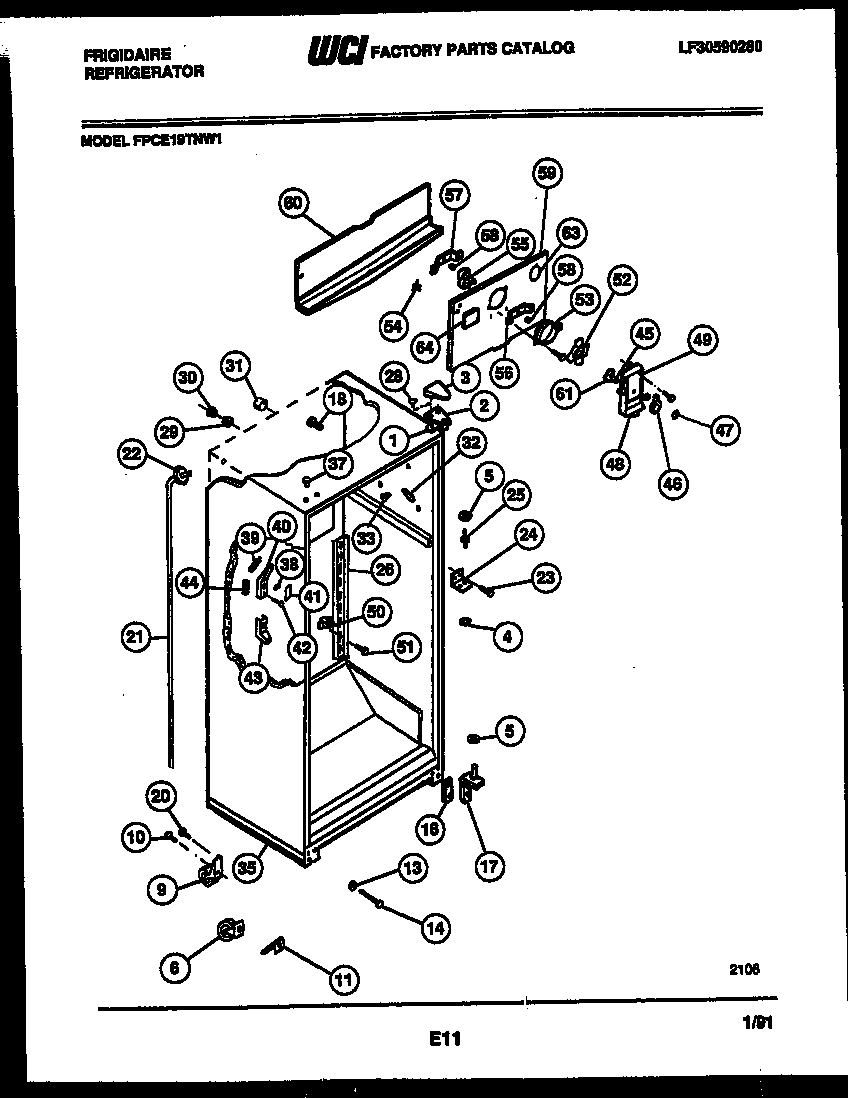

FPCE19TNL1 03 – CABINET PARTS

Products

PositionProduct
*40091TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
*40091TAPPING PLATE, GUSSET, RH (NOT ILLUSTRATED)
*40091TAPPING PLATE, GUSSET, LH (NOT ILLUSTRATED)
1SHIM – UPPER HINGE
2BRACKET-UPPER HINGE
3COVER-UPPER HINGE, ALMOND
4WCI 5308000186
5WASHER, .34 X .62 X .05, NYLON
6WCI 5303212490
9WCI 5308009773
10BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
11WCI 5308009790
13WCI 5308011326
14WCI 5303212598
16WCI 5303212488
17BRACKET-LOWER HINGE, W/ HINGE PIN
17A241710601 Frigidaire Refrigerator Screw
18APLUG, BUTTON, CABINET LINER (NI)
18SUPPORT-COIL COVER
205304455651 Frigidaire Refrigerator Screw
21WCI 5303210377
22WCI 5303207353
24BRACKET-CTR HINGE
25WCI 5308000184
26BWCI 5303015409
26CHANNEL, RH & LH
26A5304455852 Frigidaire Refrigerator Screw
28WCI 5308012258
29WCI 5303001286
30WCI 5303001287
31TUBE-RUBBER
32TRIM-CABINET CORNER, ALMOND
33A5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
335304509705 Frigidaire Refrigerator Grommet
35WCI 5303212487
37PLUG-BUTTON, ALMOND, UPR HINGE HOLES
38CONTROL-DAMPER, MEAT KPR DUCT
39INSULATION-AIR DUCT, LOWER
40WCI 08009767
41WCI 3200588
42WCI 5308016568
43DUCT-MEAT KEEPER, LOWER
44INSULATION-AIR DUCT, UPPER
45Nut,push-on
46KNOB, DAMPER
47LABEL, KNOB
48FAN COVER
49WCI 08009924
50WCI 5308000056
51WCI 5503001361
525308000010 Frigidaire Refrigerator Evaporator Fan Blade
53RING-FAN ORIFICE
54WCI 5308000107
555300158289 Frigidaire Evaporator Fan Motor
56WCI 5303001226
57BRACKET-MOTOR MTG, REAR
58G187559 Frigidaire Refrigerator Bushing
59ANUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
59WCI 5308009771
60WCI 5303001470
61DAMPER-FAN COVER
61A5304455650 Frigidaire Refrigerator Screw
635303208309 Frigidaire Refrigerator Plug Hole
64BUTTON – DECORATIVE PLUG
