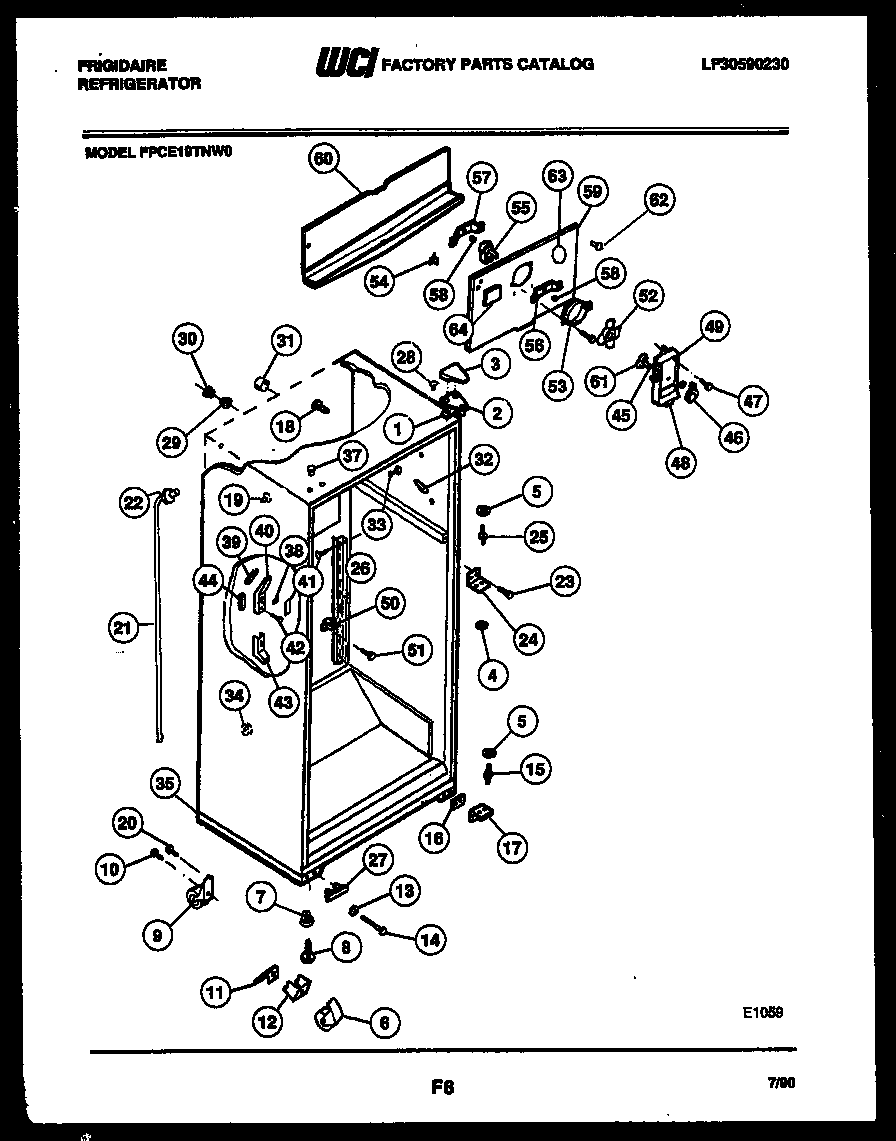

FPCE19TNW0 03 – CABINET PARTSadmin2025-04-26T08:52:24+00:00FPCE19TNW0 03 – CABINET PARTS
Products
| Position | Product |
|---|
| *36811 | TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED) |
| 1 | SHIM - UPPER HINGE |
| 2 | BRACKET-UPPER HINGE |
| 3 | COVER-UPPER HINGE, WHITE |
| 4 | WCI 5308000186 |
| 5 | WASHER, .34 X .62 X .05, NYLON |
| 6 | WCI 5308009760 |
| 7 | WCI 5308003584 |
| 8 | SCREW-LEVELING (4) |
| 9 | WCI 5308009773 |
| 11 | WCI 5308009790 |
| 12 | SUPPORT, BASE (2) |
| 13 | WCI 5308011326 |
| 14 | BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2) |
| 15 | 5303001321 Frigidaire Refrigerator Lower Hinge Pin |
| 16 | SHIM-LOWER HINGE |
| 17 | HINGE BRACKET - BOTTOM |
| 17A | 241710601 Frigidaire Refrigerator Screw |
| 18 | SUPPORT-COIL COVER |
| 19 | PLUG, BUTTON, CABINET LINER (NI) |
| 20 | 5304455651 Frigidaire Refrigerator Screw |
| 21 | WCI 5303210377 |
| 22 | WCI 5303207353 |
| 24 | BRACKET-CTR HINGE |
| 25 | WCI 5308000184 |
| 26A | 5304455852 Frigidaire Refrigerator Screw |
| 26B | WCI 5303015409 |
| 26 | CHANNEL, RH & LH |
| 27 | COVER-HOLE, LOWER HINGE |
| 28 | WCI 5308012258 |
| 29 | WCI 5303001286 |
| 30 | WCI 5303001287 |
| 31 | TUBE-RUBBER |
| 32 | TRIM-CABINET CORNER, WHITE |
| 33 | 5304509705 Frigidaire Refrigerator Grommet |
| 34 | 5304500407 Frigidaire Refrigerator Shelf Mounting Grommet |
| 35 | CABINET BASE |
| 37 | PLUG-BUTTON, WHITE |
| 38 | CONTROL-DAMPER, MEAT KPR DUCT |
| 39 | INSULATION-AIR DUCT, LOWER |
| 40 | WCI 08009767 |
| 41 | WCI 3200588 |
| 42 | WCI 5308016568 |
| 43 | DUCT-MEAT KEEPER, LOWER |
| 44 | INSULATION-AIR DUCT, UPPER |
| 45 | Nut,push-on |
| 46 | KNOB, DAMPER |
| 47 | LABEL, KNOB |
| 48 | FAN COVER |
| 49 | WCI 08009924 |
| 50 | WCI 5308000056 |
| 51 | WCI 5303001361 |
| 52 | 5308000010 Frigidaire Refrigerator Evaporator Fan Blade |
| 53 | RING-FAN ORIFICE |
| 54 | WCI 5308000107 |
| 55 | 5300158289 Frigidaire Evaporator Fan Motor |
| 56 | WCI 5303001226 |
| 57 | WCI 5303001227 |
| 58 | G187559 Frigidaire Refrigerator Bushing |
| 59A | NUT, ``U`` TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED) |
| 59 | WCI 5308009771 |
| 60 | WCI 5303001470 |
| 61 | DAMPER-FAN COVER |
| 62 | 5304455650 Frigidaire Refrigerator Screw |
| 63 | 5303208309 Frigidaire Refrigerator Plug Hole |
| 64 | BUTTON - DECORATIVE PLUG |
