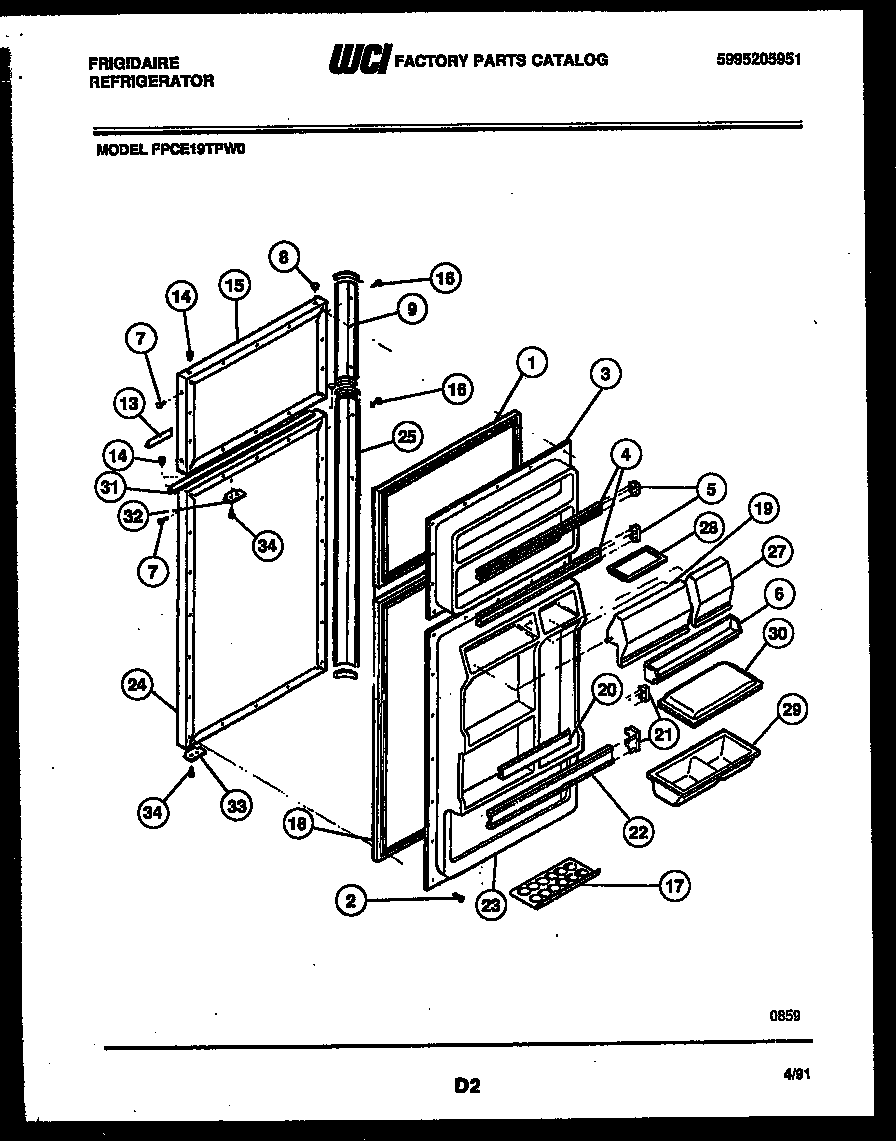

FPCE19TPL0 02 – DOOR PARTS

FPCE19TPL0 02 – DOOR PARTS

Written by

in

FPCE19TPL0 02 – DOOR PARTS

Products

PositionProduct
1GASKET-FRZR DOOR, BROWN, MAGNETIC
25304455651 Frigidaire Refrigerator Screw
3WCI 3018971
4WCI 3018972
55303323481 Frigidaire Refrigerator Left Hand Door Bar End Cap
5A5303323480 Frigidaire Refrigerator Door Bar End Cap Rh
6WCI 5303272525
7PLUG-BUTTON, ALMOND, HANDLE/DR STOP
8PLUG-BUTTON, ALMOND, HINGE BRG HOLE
9HANDLE-DOOR, ALMOND, FRZR
13WCI 3201581
14BEARING-HINGE
15WCI 5303916056
16SCREW-HANDLE MTG, CR OVAL HEAD, 10-24(D) X 5/8, ALMOND,
17215817806 Frigidaire Refrigerator Egg Tray
18GASKET-REFR DOOR, BROWN, MAGNETIC
19WCI 3018868
22215516220 Frigidaire Refrigerator Door Rack
22A5303325990 Frigidaire Refrigerator Door Bar End Cap
22B5303325991 Frigidaire Refrigerator Door Bar Endcap
23WCI 3200310
23AINSULATION-BULK (NON-ILLUSTRATED)
24PANEL-REFR DOOR, ALMOND
25HANDLE-DOOR, ALMOND, REFR
27DOOR-DAIRY
285308000716 Frigidaire Refrigerator Dish
29WCI 5303200413
30WCI 5303200414
31ASNUGGER-FINGER (NON-ILLUSTRATED)
31WCI 3200570
32WCI 5308000255
33DOOR STOP, REFR SECTION
34WCI 5308011745
