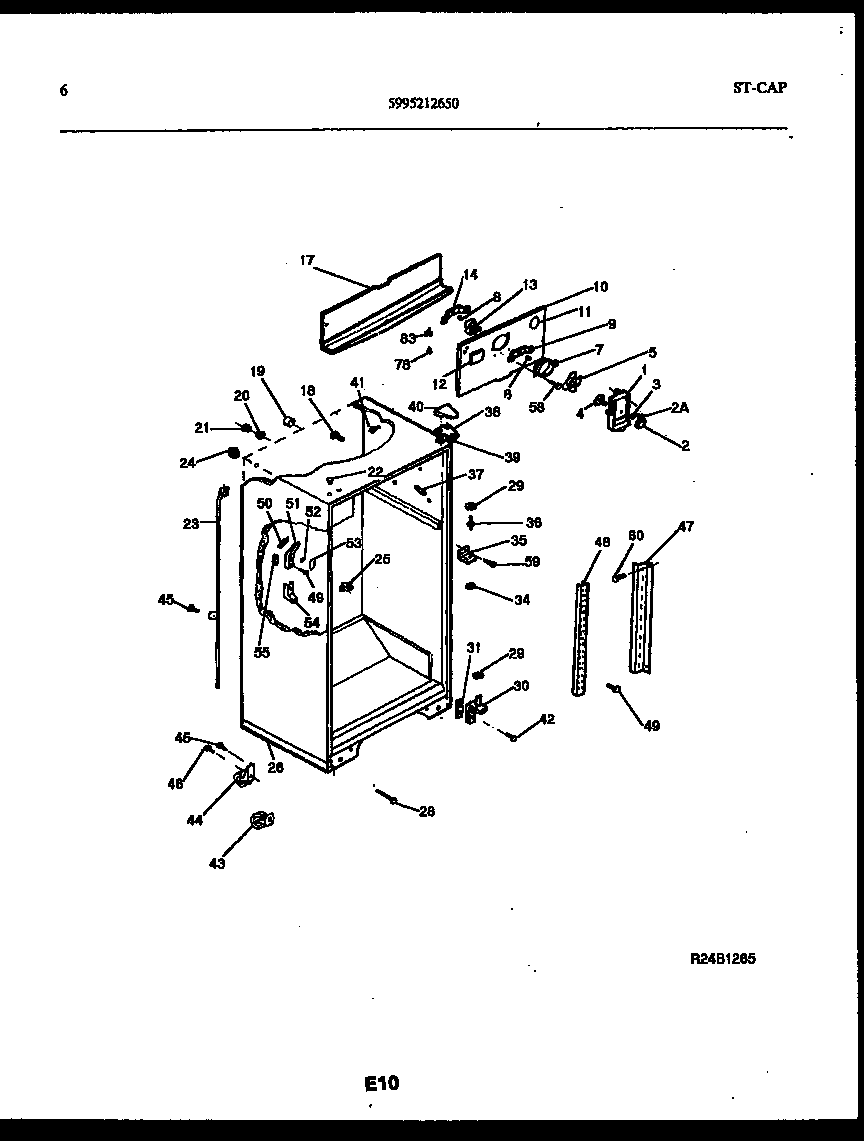

FPCE19TPL1 04 – CABINET PARTS

Products

Position	Product
1A	WCI 08009924
1B	5304455650 Frigidaire Refrigerator Screw
1	FAN COVER
2A	LABEL, KNOB
2	KNOB, DAMPER
3	Nut,push-on
4	DAMPER-FAN COVER
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
7	RING-FAN ORIFICE
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 5303205118
10	WCI 5308009771
10A	NUT, ``U`` TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
11	5303208309 Frigidaire Refrigerator Plug Hole
12	BUTTON - DECORATIVE PLUG
13	5300158289 Frigidaire Evaporator Fan Motor
14	BRACKET-MOTOR MTG, REAR
17	WCI 5303001470
18	SUPPORT-COIL COVER
19	TUBE-RUBBER
20	WCI 5303001286
21	WCI 5303001287
22	PLUG-BUTTON, ALMOND, UPR HINGE HOLES
23	WCI 5303210377
24	WCI 5303207353
25A	WCI 5303001361
25	WCI 5308000056
26	WCI 5303212487
28	BOLT-ROLLER ADJ, HEX HD, 1/4-28 X 2.750
29	WASHER, .34 X .62 X .05, NYLON
30A	TAPPING PLATE, GUSSET, RH (NOT ILLUSTRATED)
30B	TAPPING PLATE, GUSSET, LH (NOT ILLUSTRATED)
30	BRACKET-LOWER HINGE, W/ HINGE PIN
31	WCI 5303212488
34	WCI 5308000186
35	BRACKET-CTR HINGE
36	WCI 5308000184
41	5304509705 Frigidaire Refrigerator Grommet
