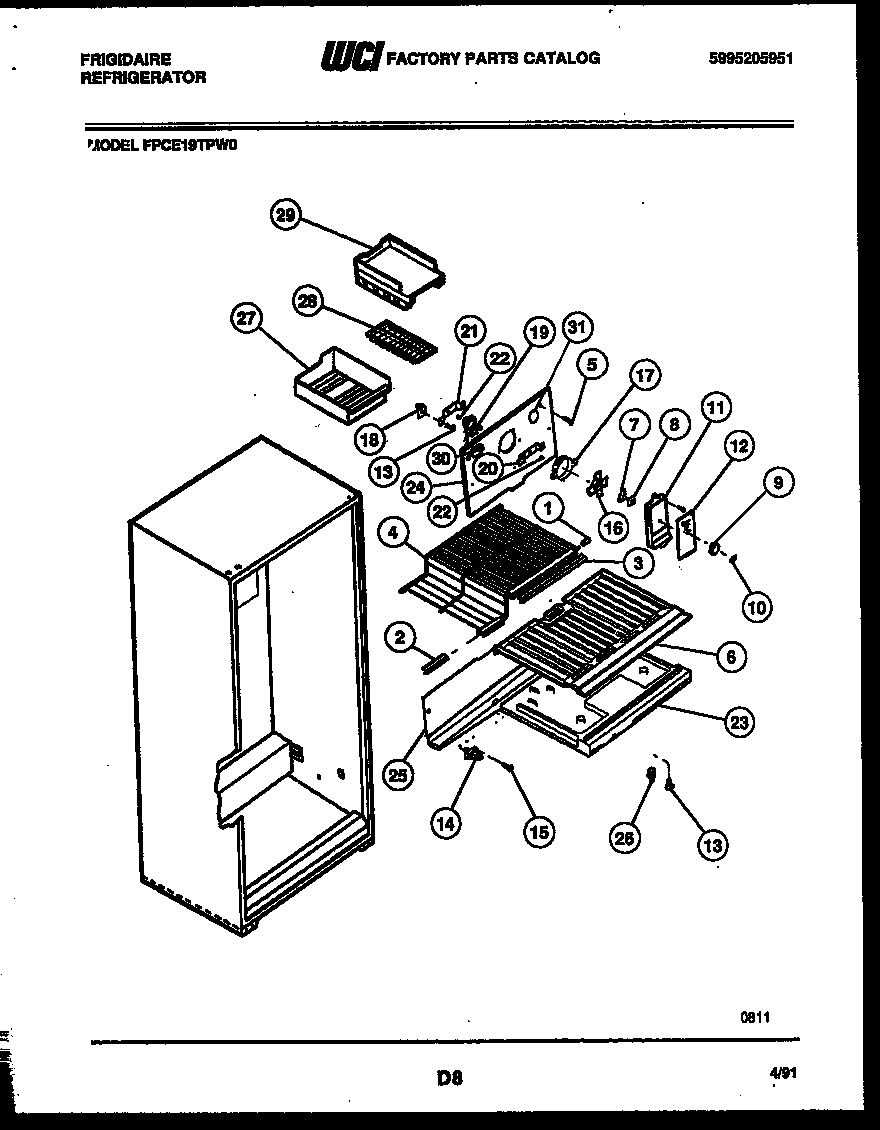

FPCE19TPW0 05 – SHELVES AND SUPPORTSadmin2025-04-26T08:52:38+00:00FPCE19TPW0 05 – SHELVES AND SUPPORTS
Products
| Position | Product |
|---|
| 1 | END CAP-SHELF,PROTECTOR |
| 2 | TRIM-FRZR SHELF, SMALL |
| 3 | TRIM-FRZR SHELF, LARGE |
| 4 | SHELF-FREEZER-STEP |
| 6 | WCI 5303211427 |
| 7 | DAMPER-FAN COVER |
| 8 | Nut,push-on |
| 9 | KNOB, DAMPER |
| 10 | LABEL, KNOB |
| 11 | WCI 8009817 |
| 11A | 5304455650 Frigidaire Refrigerator Screw |
| 12 | WCI 08009924 |
| 13 | 5304455651 Frigidaire Refrigerator Screw |
| 14 | WCI 5308000056 |
| 15 | WCI 5303001361 |
| 16 | 5308000010 Frigidaire Refrigerator Evaporator Fan Blade |
| 17 | RING-FAN ORIFICE |
| 18 | WCI 5308000107 |
| 19 | 5300158289 Frigidaire Evaporator Fan Motor |
| 20 | WCI 5303205118 |
| 21 | BRACKET-MOTOR MTG, REAR |
| 22 | G187559 Frigidaire Refrigerator Bushing |
| 23 | DIVIDER-FOAM |
| 24A | NUT, ``U`` TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED) |
| 24 | WCI 5308009771 |
| 25 | WCI 5303001470 |
| 26 | 5309918806 Frigidaire Refrigerator Light Switch Door |
| 27 | 5303212918 Frigidaire Refrigerator Cont |
| 28 | WCI 01121808 |
| 29 | WCI 08009824 |
| 30 | BUTTON - DECORATIVE PLUG |
| 31 | 5303208309 Frigidaire Refrigerator Plug Hole |
