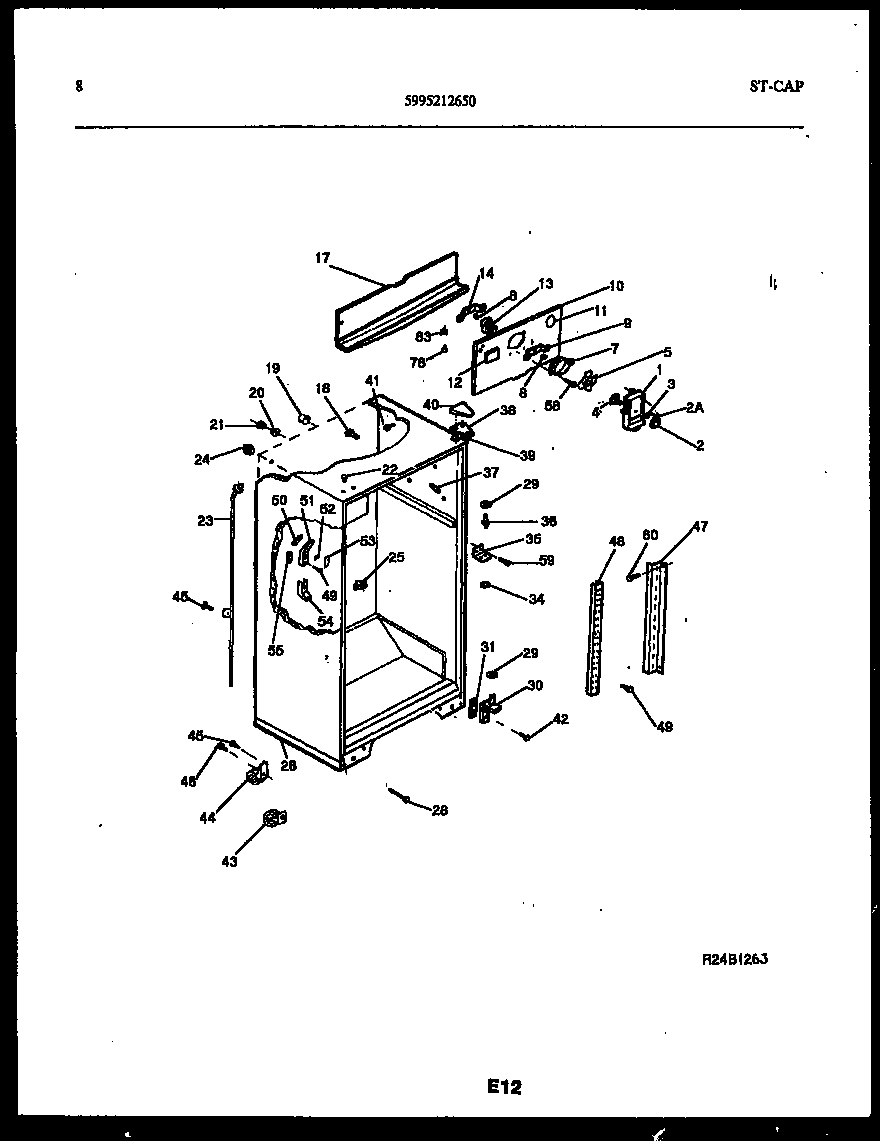

FPCE19TPW1 05 – CABINET PARTSadmin2025-04-26T08:52:05+00:00FPCE19TPW1 05 – CABINET PARTS
Products
| Position | Product |
|---|
| *54302 | PLUG, BUTTON, CABINET LINER (NI) |
| 37 | TRIM-CABINET CORNER, WHITE |
| 38 | BRACKET-UPPER HINGE |
| 38B | TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED) |
| 39 | SHIM - UPPER HINGE |
| 41A | 5304500407 Frigidaire Refrigerator Shelf Mounting Grommet |
| 42 | 241710601 Frigidaire Refrigerator Screw |
| 43 | WCI 5303212490 |
| 44 | WCI 5308009773 |
| 45 | 5304455651 Frigidaire Refrigerator Screw |
| 46 | BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2) |
| 47 | CHANNEL, RH & LH |
| 48 | WCI 5303015409 |
| 49 | WCI 5308016568 |
| 50 | INSULATION-AIR DUCT, UPPER |
| 51 | WCI 08009767 |
| 52 | CONTROL-DAMPER, MEAT KPR DUCT |
| 53 | WCI 3200588 |
| 54 | DUCT-MEAT KEEPER, LOWER |
| 55 | INSULATION-AIR DUCT, LOWER |
| 59 | WCI 5308012258 |
| 60 | 5304455852 Frigidaire Refrigerator Screw |
| 83 | WCI 5308000107 |
