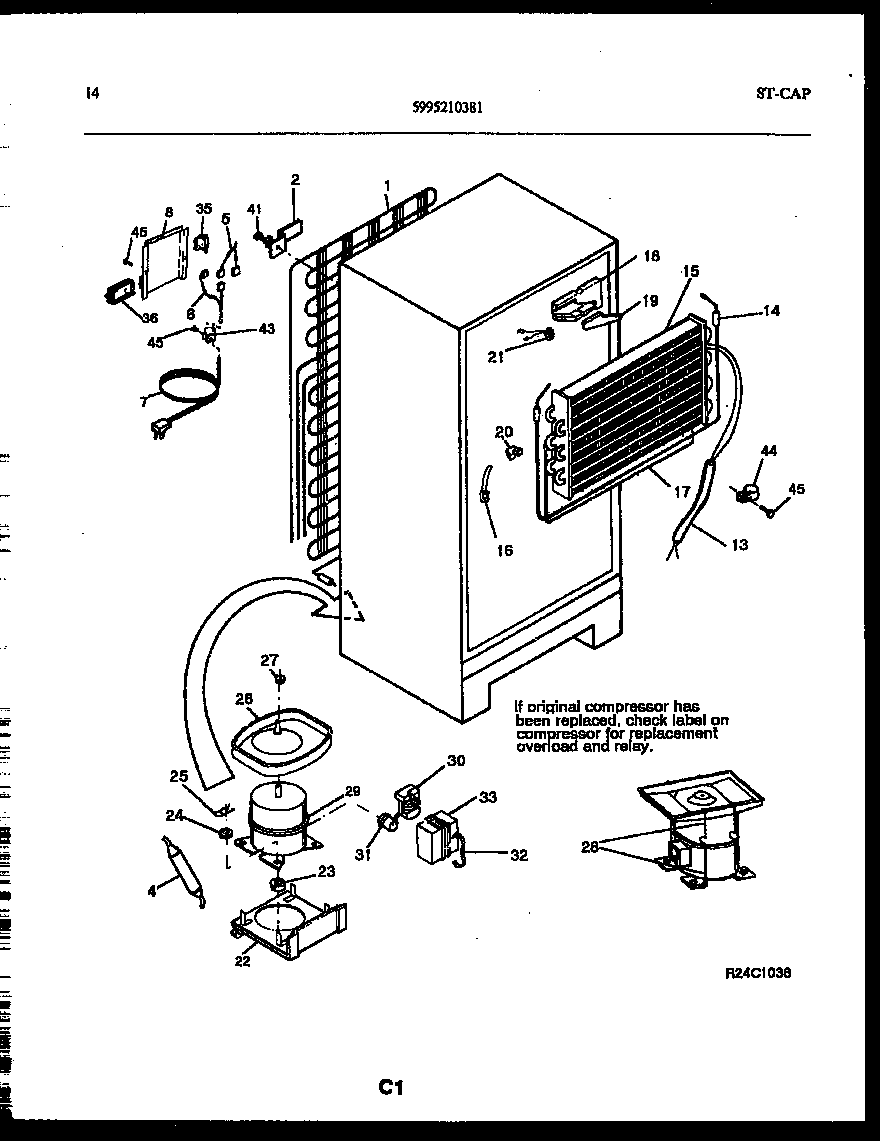

FPCE19TRL0 08 – SYSTEM AND AUTOMATIC DEFROST PARTS

FPCE19TRL0 08 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

FPCE19TRL0 08 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*54031HOT TUBE REPAIR KIT-SERVICE
1WCI 5300163133
2AWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
2BRACKET-MTG (4)
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 5303211926
6WIRING HARNESS, COMPRESSOR,
7CORD-ELECTRIC POWER
8WCI 5303211914
13WCI 5308000728
145317842502 Frigidaire Defrost Heater
15EVAPORATOR
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17INSULATOR-EVAP, PLASTIC
18INSULATION BLOCK, RH
19INSULATION PLUG, RH
20INSULATION BLOCK, LH
215303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22WCI 5308013663
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
24WASHER-COMPR MTG
25CLIP – COMPRESSOR MTG
26PAN-DEFROST DRAIN, ORIG/SVCE COMPR
26A5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
27Nut,lock `1/4-20 ,drain pan mtg
28PAN RETAINER KIT, SERVICE
29ACAPACITOR
29COMPRESSOR W/ ELEC
30RELAY-TL
31WCI 5303274700
325303006412 Frigidaire Refrigerator Cover Mounting Strap
35WCI 5303211915
36AWCI 5303212893
36WCI 5303211916
415308000039 Frigidaire Refrigerator Screw
435303001199 Frigidaire Refrigerator Wiring Harness Clamp
445308000133 Frigidaire Refrigerator Clamp
455304455651 Frigidaire Refrigerator Screw
