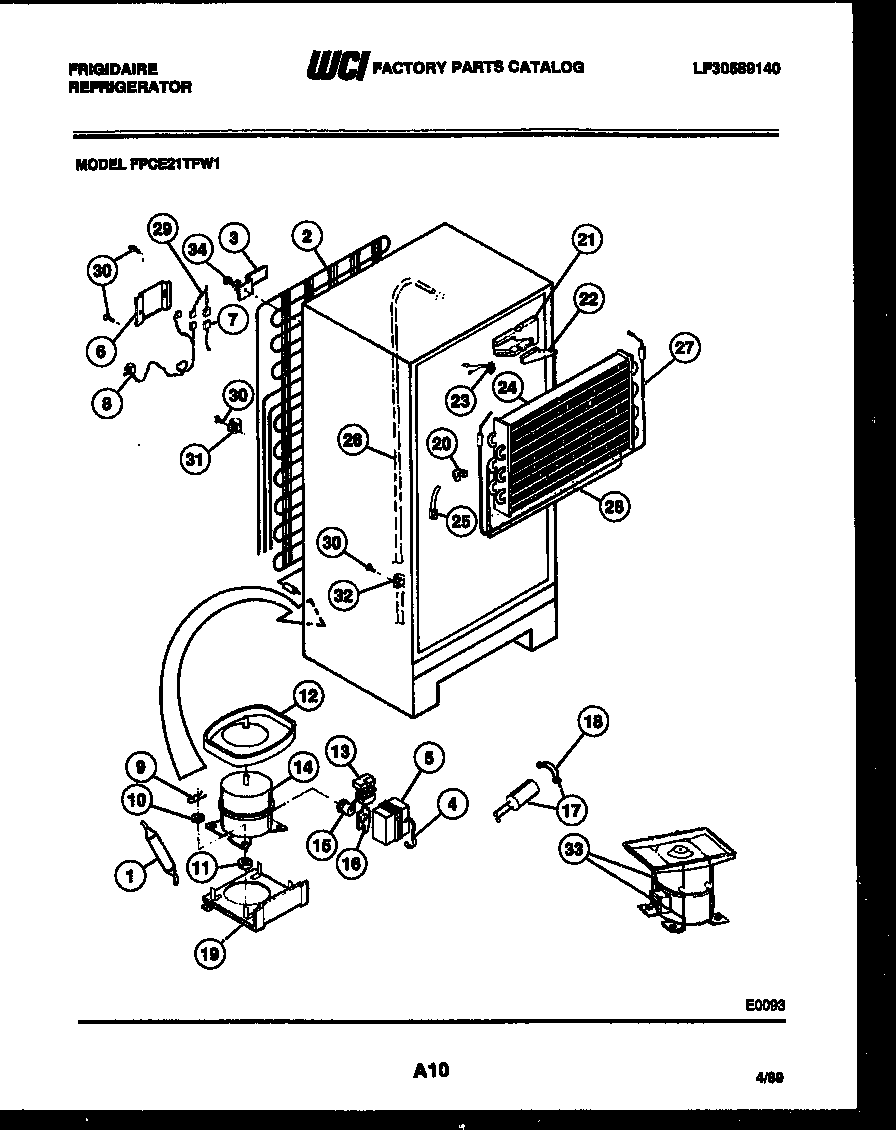

FPCE21TFA1 06 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
1	5303305677 Frigidaire Replacement Filter Dryer Filters
2	WCI 08000094
3	WCI 08003600
3A	WCI 08009617
4	STRAP-BALE
5	WCI 08016583
6	WCI 08013644
7	WCI 08009628
8	WCI 08000064
9	CLIP (4)
10	WCI 08003597
11	218513300 Frigidaire Refrigerator Compressor Mount Grommet
12A	DEFROST PAN & NUT
12B	NUT
12	PAN-DEFROST
13	WCI 08017226
14	WCI 08950230
15	WCI 3202863
16	WCI 3202891
17	CAPACITOR-RUN
18	STRAP-CAPACITOR MTG
19	WCI 08013663
20	WCI 08017227
21	WCI 08013648
22	WCI 08013646
23	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
24	EVAPORATOR
25	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
26	WCI 08000728
27	5317842502 Frigidaire Defrost Heater
28	WCI 08009569
29	HARNESS-WIRING, CONTROL/DIVIDER (NOT ILLUSTRATED)
30	5304455651 Frigidaire Refrigerator Screw
31	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
32	240396801 Frigidaire Refrigerator Tube Clamp
33	WCI 08950024
33A	5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
33B	WCI 09960001
34	5308000039 Frigidaire Refrigerator Screw
