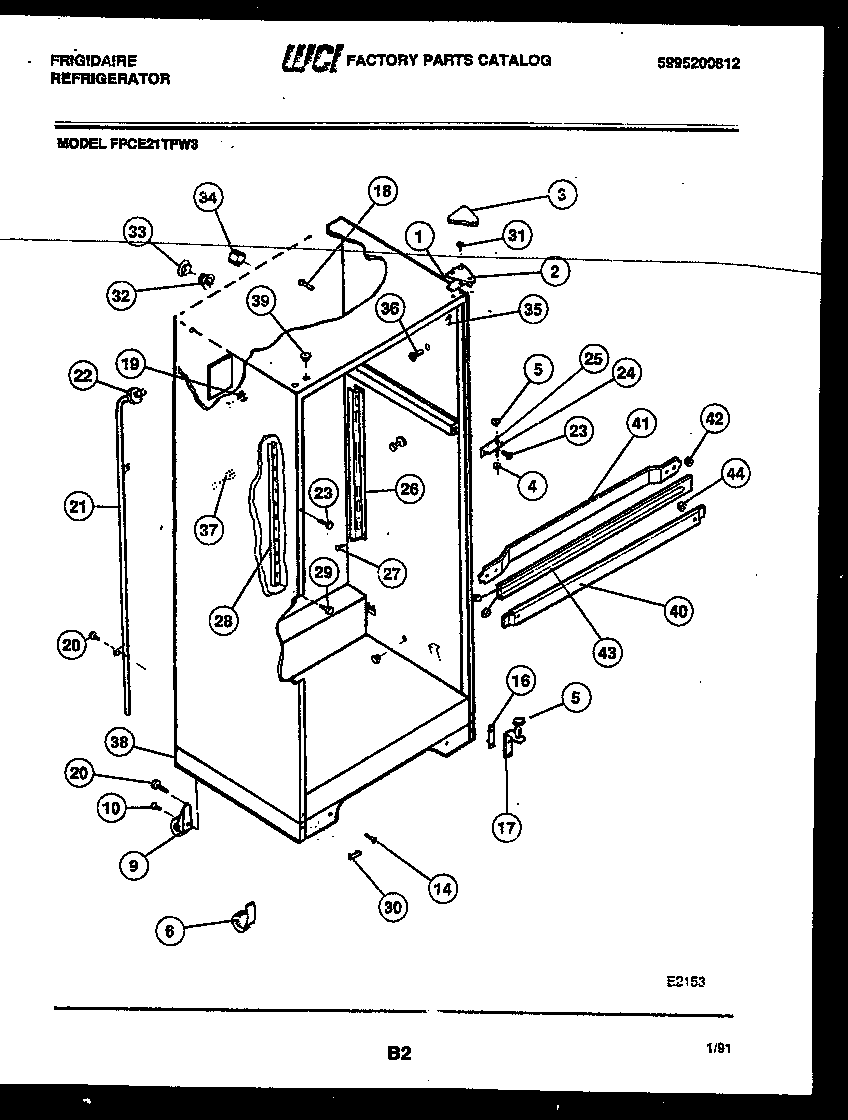

FPCE21TFL3 03 – CABINET PARTS

Products

Position	Product
*40383	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
1	SHIM - UPPER HINGE
2	BRACKET-UPPER HINGE
3	COVER-UPPER HINGE, ALMOND
4	WCI 5308000186
5	WCI 08000007
6	WCI 5303212490
9	WCI 5308009773
10	BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
14	WCI 5303212598
16	WCI 5303212488
17	BRACKET-LOWER HINGE, W/ HINGE PIN
17A	TAPPING PLATE, GUSSET, LH (NOT ILLUSTRATED)
17B	TAPPING PLATE, GUSSET, RH (NOT ILLUSTRATED)
17C	241710601 Frigidaire Refrigerator Screw
18	SUPPORT-COIL COVER
19	PLUG, BUTTON, CABINET LINER (NI)
20	5304455651 Frigidaire Refrigerator Screw
21	WCI 5303210377
22	WCI 5303207353
23	WCI 5308012258
24	BRACKET-CTR HINGE
25	WCI 5308000184
26	CHANNEL, RH & LH
27	5304455852 Frigidaire Refrigerator Screw
28	WCI 5303015409
29	WCI 5308016568
30	WCI 5303212923
32	WCI 5303001286
33	WCI 5303001287
34	TUBE-RUBBER
35	TRIM-CABINET CORNER, ALMOND
36	5304509705 Frigidaire Refrigerator Grommet
37	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
38	WCI 5303212487
39	PLUG-BUTTON, ALMOND, UPR HINGE HOLES
40	WCI 5303200370
41	WCI 5308010008
42	SPACER-MULLION MTG, STEEL
43	WCI 5303210351
44	WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
