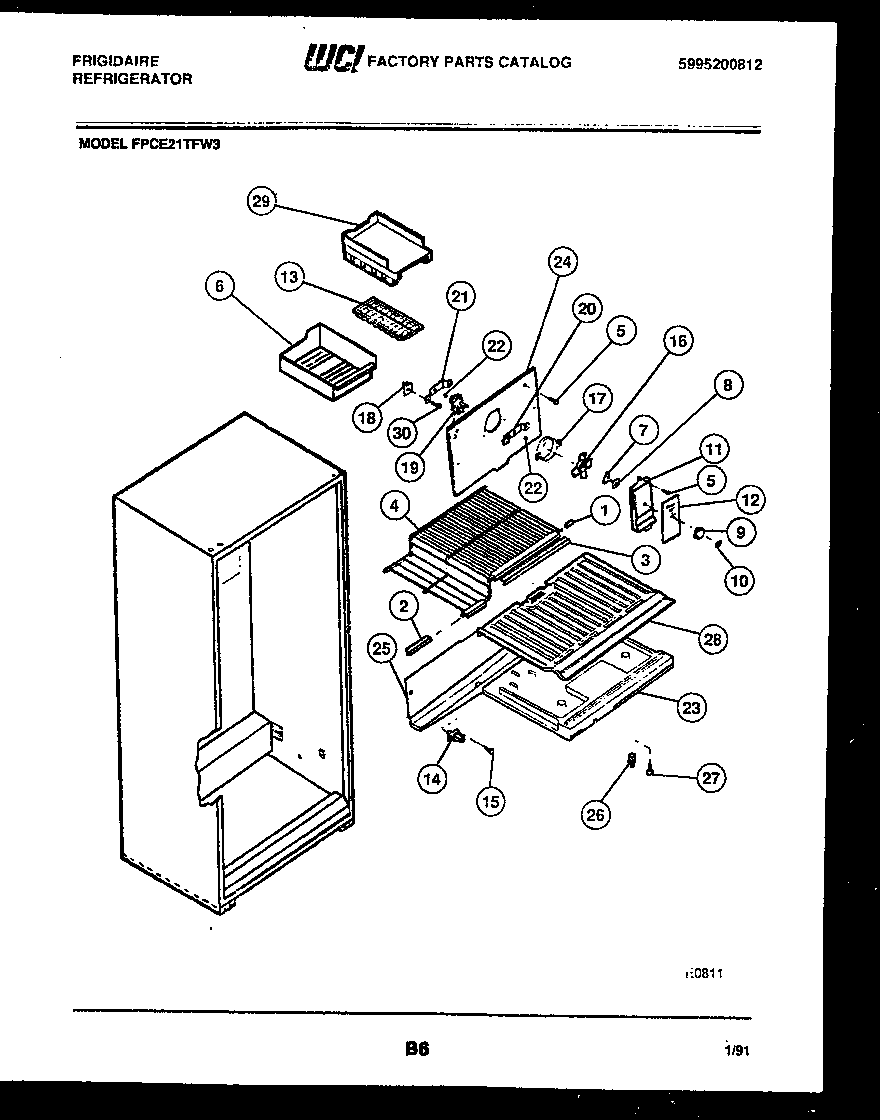

FPCE21TFW3 05 – SHELVES AND SUPPORTS

FPCE21TFW3 05 – SHELVES AND SUPPORTS

Written by

in

FPCE21TFW3 05 – SHELVES AND SUPPORTS

Products

PositionProduct
*40389BUTTON – DECORATIVE PLUG
1END CAP-SHELF,PROTECTOR
2TRIM-SHELF-FREEZER
3WCI 3017428
4WCI 3019033
65303212918 Frigidaire Refrigerator Cont
7DAMPER-FAN COVER
8Nut,push-on
9KNOB, DAMPER
10LABEL, KNOB
11WCI 08009825
12WCI 08009937
13WCI 01121808
14WCI 5308000056
15WCI 5303001361
165308000010 Frigidaire Refrigerator Evaporator Fan Blade
17RING-FAN ORIFICE
18WCI 5308000107
195300158289 Frigidaire Evaporator Fan Motor
20WCI 5303001226
21BRACKET-MOTOR MTG, REAR
22G187559 Frigidaire Refrigerator Bushing
23WCI 5303019039
24A5304455650 Frigidaire Refrigerator Screw
24COVER, COIL
24CNUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
24B5303208309 Frigidaire Refrigerator Plug Hole
25WCI 5303001470
265309918806 Frigidaire Refrigerator Light Switch Door
27WCI 08000070
28BOTTOM, FREEZER
29WCI 08009824
29A5304455852 Frigidaire Refrigerator Screw
30218843801 Frigidaire Refrigerator Screw
