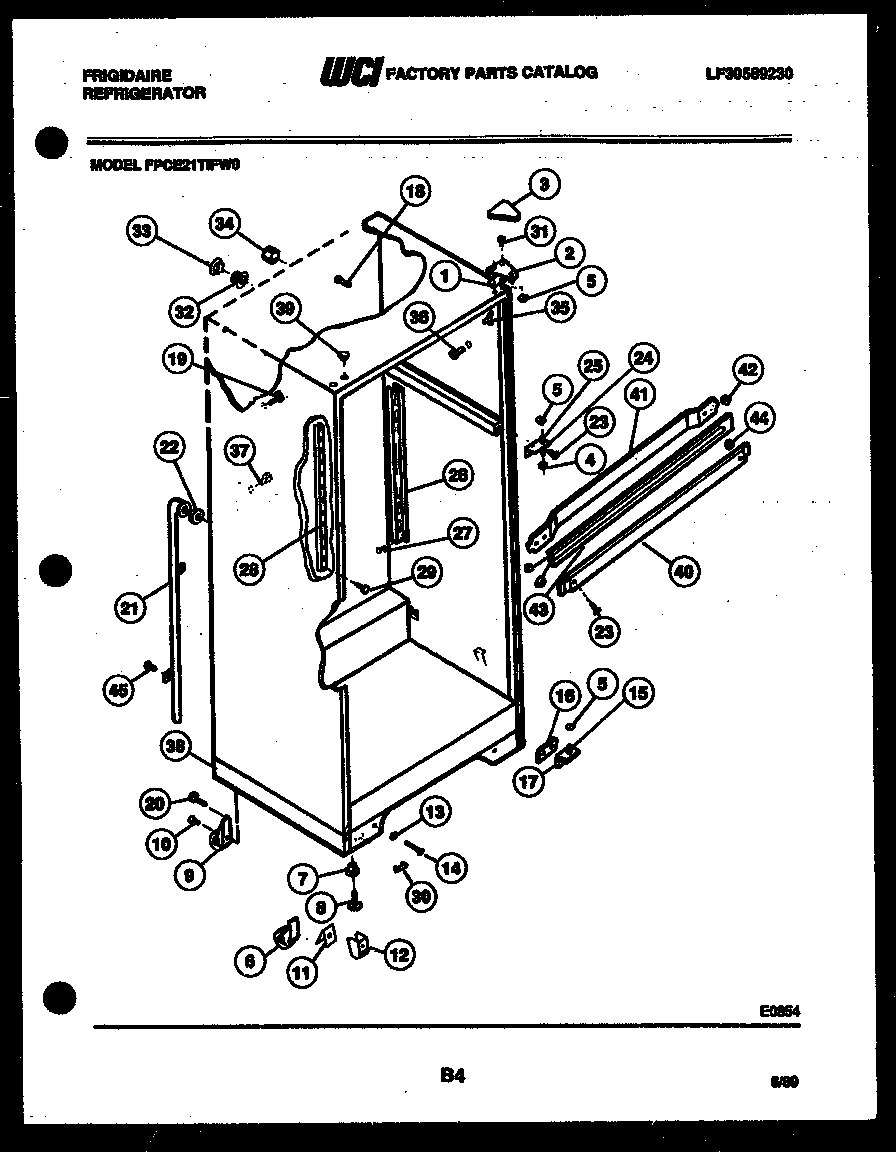

FPCE21TIFF0 03 – CABINET PARTS

Products

Position	Product
*26679	TAPPING PLATE (2)
1	WCI 08012829
2	WCI 08012843
3	WCI 08012932
4	WCI 08000100
5	WCI 08000007
6	WCI 08009760
7	WCI 08003584
8	WCI 08003583
9	WCI 08009773
10	WCI 08009762
11	WCI 08009790
12	WCI 08013678
13	WCI 08011326
14	WCI 08009761
15	5303001321 Frigidaire Refrigerator Lower Hinge Pin
16	SHIM
17	HINGE-BRACKET-BOTTOM
18	WCI 08000097
21	WCI 08010012
22	RING-SEAL
23	WCI 08012258
24	WCI 08000757
25	WCI 08000184
26	WCI 08000302
27	5304455852 Frigidaire Refrigerator Screw
28	CHANNEL-CENTER (NON-ILLUSTRATED)
29	WCI 08016568
30	WCI 08003585
31	241710601 Frigidaire Refrigerator Screw
32	FERRULE
33	FERRULE
34	TUBE
35	WCI 3202339
36	5304509705 Frigidaire Refrigerator Grommet
37	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
38	WCI 08010092
39	WCI 08007128
40	WCI 3200369
41	WCI 08010008
42	SPACER (NON-ILLUSTRATED)
43	WCI 3018916
44	WASHER-MULLION (4)
45	5304455651 Frigidaire Refrigerator Screw
