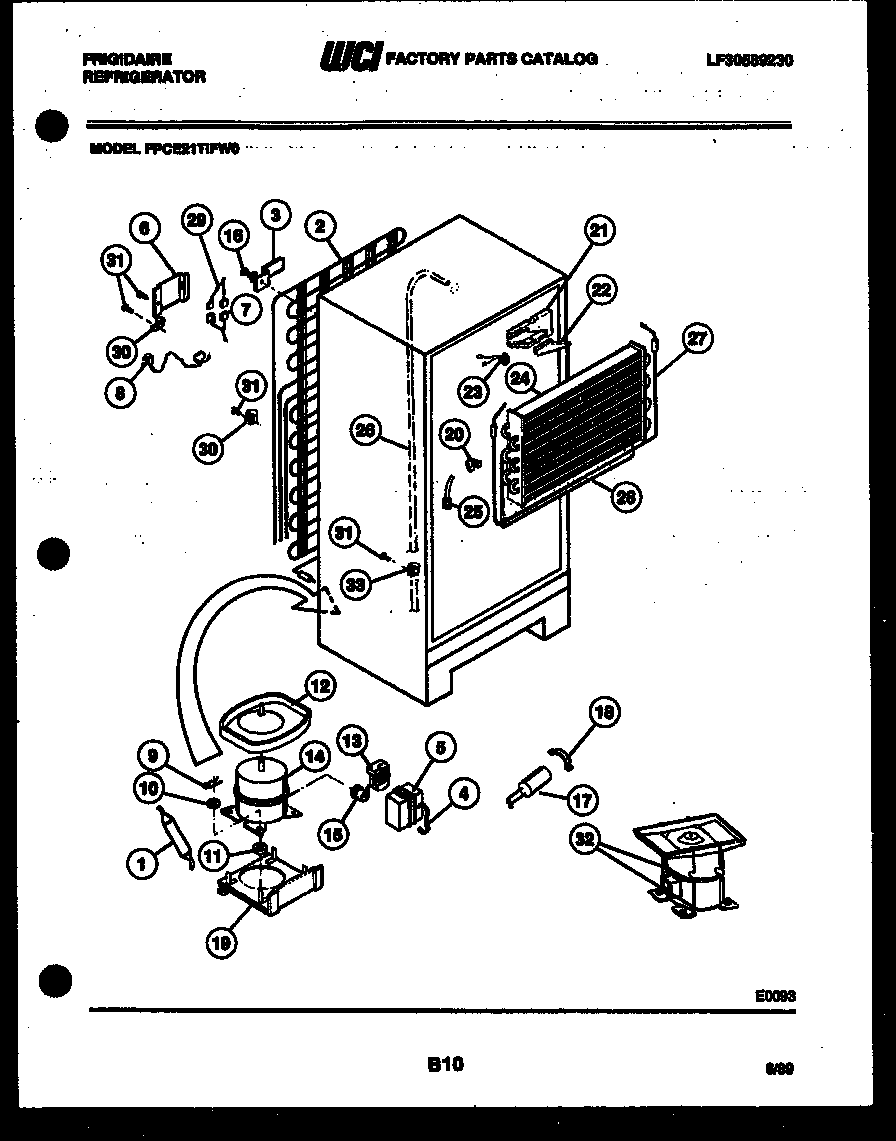

FPCE21TIFH0 06 – SYSTEM AND AUTOMATIC DEFROST PARTS

FPCE21TIFH0 06 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

FPCE21TIFH0 06 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*26742WCI 09960001
*267415303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
15303305677 Frigidaire Replacement Filter Dryer Filters
2WCI 08000094
3WCI 08003600
3AWCI 08009617
45303006412 Frigidaire Refrigerator Cover Mounting Strap
5WCI 08006982
6WCI 08013644
7WCI 08009628
8WCI 08000064
9CLIP (4)
10WCI 08003597
11218513300 Frigidaire Refrigerator Compressor Mount Grommet
12ANUT
12PAN-DEFROST
13WCI 08017226
14COMPR W/ ELECT
15WCI 08017532
165308000039 Frigidaire Refrigerator Screw
17CAPACITOR-RUN
18STRAP-CAPACITOR MTG
19WCI 08013663
20WCI 08017227
21WCI 08013648
22WCI 08013646
235303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
24WCI 08000062
255308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
26WCI 08000728
275317842502 Frigidaire Defrost Heater
28INSULATOR
29HARNESS-WIRING, CONTROL/DIVIDER (NOT ILLUSTRATED)
305303001199 Frigidaire Refrigerator Wiring Harness Clamp
315304455651 Frigidaire Refrigerator Screw
32PAN RETAINER KIT-SERVICE
33240396801 Frigidaire Refrigerator Tube Clamp
