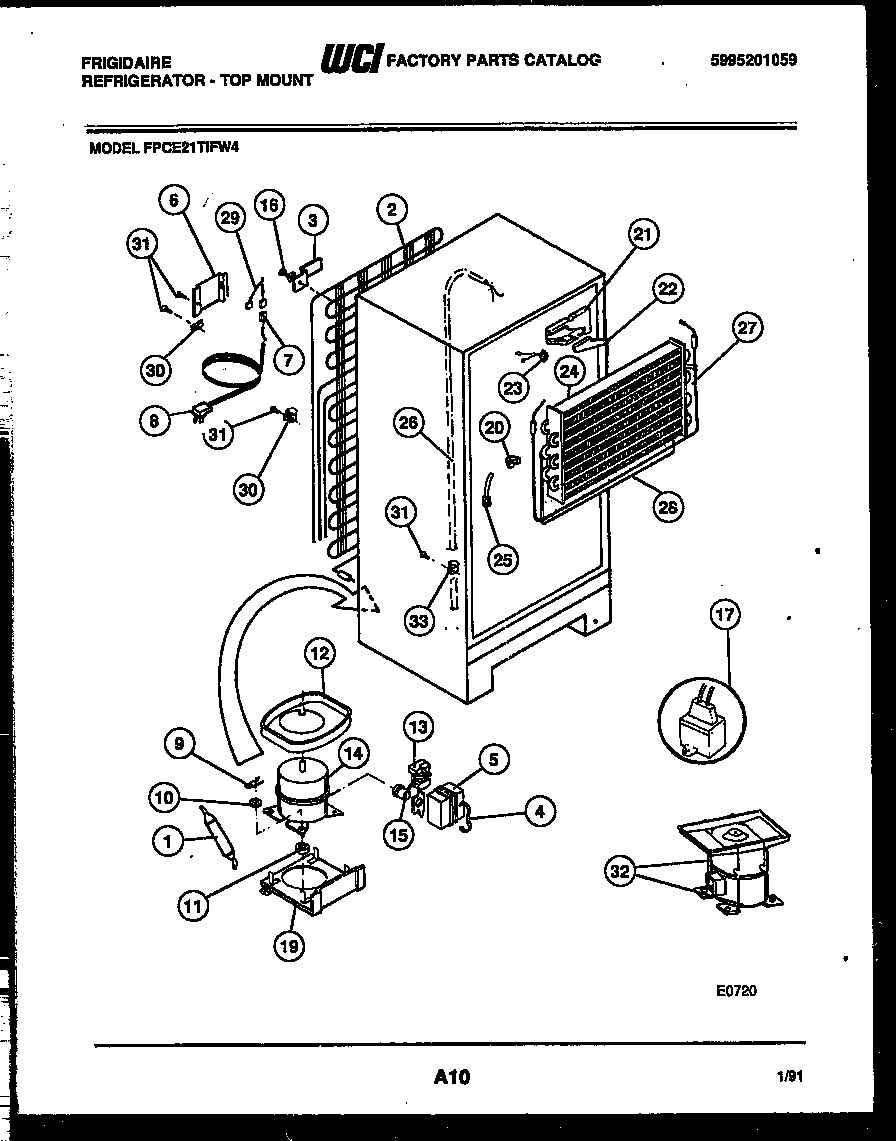

FPCE21TIFH4 06 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*409145303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
*40914HOT TUBE REPAIR KIT-SERVICE
15303305677 Frigidaire Replacement Filter Dryer Filters
2WCI 5300163133
3BRACKET-MTG (4)
3AWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
45303006412 Frigidaire Refrigerator Cover Mounting Strap
6WCI 5303001197
7WIRING HARNESS, COMPRESSOR,
8CORD-ELECTRIC POWER
9CLIP – COMPRESSOR MTG
10WASHER-COMPR MTG
11218513300 Frigidaire Refrigerator Compressor Mount Grommet
12ANut,lock `1/4-20 ,drain pan mtg
12PAN-DEFROST DRAIN, ORIG/SVCE COMPR
13RELAY-TL
14COMPRESSOR W/ ELECTRICALS
15WCI 5308017532
165308000039 Frigidaire Refrigerator Screw
17CAPACITOR
19WCI 5308013663
20INSULATION BLOCK, LH
21INSULATION BLOCK, RH
22INSULATION PLUG, RH
235303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
24WCI 5300162506
255308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
26WCI 5308000728
275317842502 Frigidaire Defrost Heater
28INSULATOR-EVAP, PLASTIC
29HARNESS-WIRING, CONTROL/DIVIDER (NOT ILLUSTRATED)
305303001199 Frigidaire Refrigerator Wiring Harness Clamp
315304455651 Frigidaire Refrigerator Screw
32PAN RETAINER KIT-SERVICE
335308000133 Frigidaire Refrigerator Clamp
