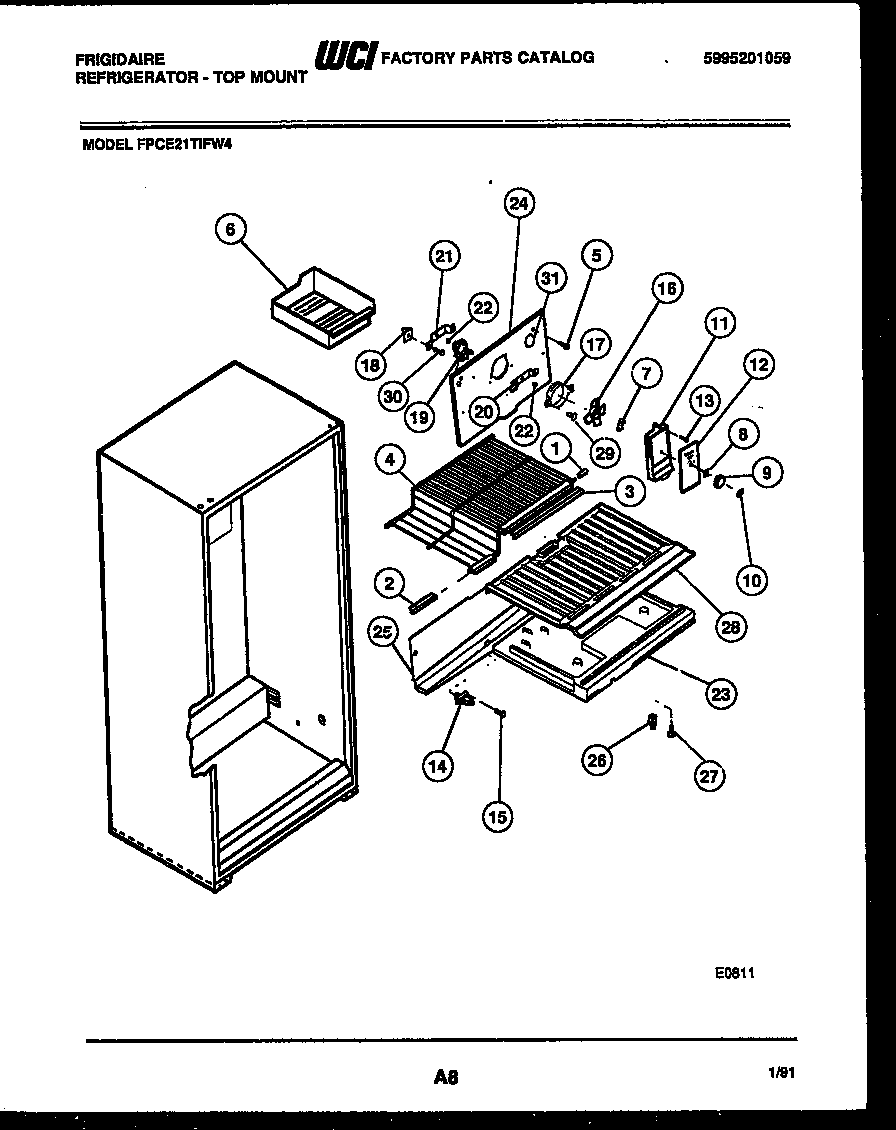

FPCE21TIFL4 05 – SHELVES AND SUPPORTS

FPCE21TIFL4 05 – SHELVES AND SUPPORTS

Written by

in

FPCE21TIFL4 05 – SHELVES AND SUPPORTS

Products

PositionProduct
1END CAP-SHELF,PROTECTOR
2TRIM-SHELF-FREEZER
3WCI 3017428
4WCI 3019033
65303212918 Frigidaire Refrigerator Cont
7DAMPER-FAN COVER
8Nut,push-on
9KNOB, DAMPER
10LABEL, KNOB
11WCI 08009825
12WCI 08009937
135304455650 Frigidaire Refrigerator Screw
14WCI 5308000056
15WCI 5303001361
165308000010 Frigidaire Refrigerator Evaporator Fan Blade
17RING-FAN ORIFICE
195300158289 Frigidaire Evaporator Fan Motor
20WCI 5303001226
21BRACKET-MOTOR MTG, REAR
22G187559 Frigidaire Refrigerator Bushing
23WCI 5303019039
24ANUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
24COVER, COIL
25WCI 5303001470
265309918806 Frigidaire Refrigerator Light Switch Door
27WCI 5303001380
28BOTTOM, FREEZER
295304455651 Frigidaire Refrigerator Screw
30WCI 5308000107
315303208309 Frigidaire Refrigerator Plug Hole
