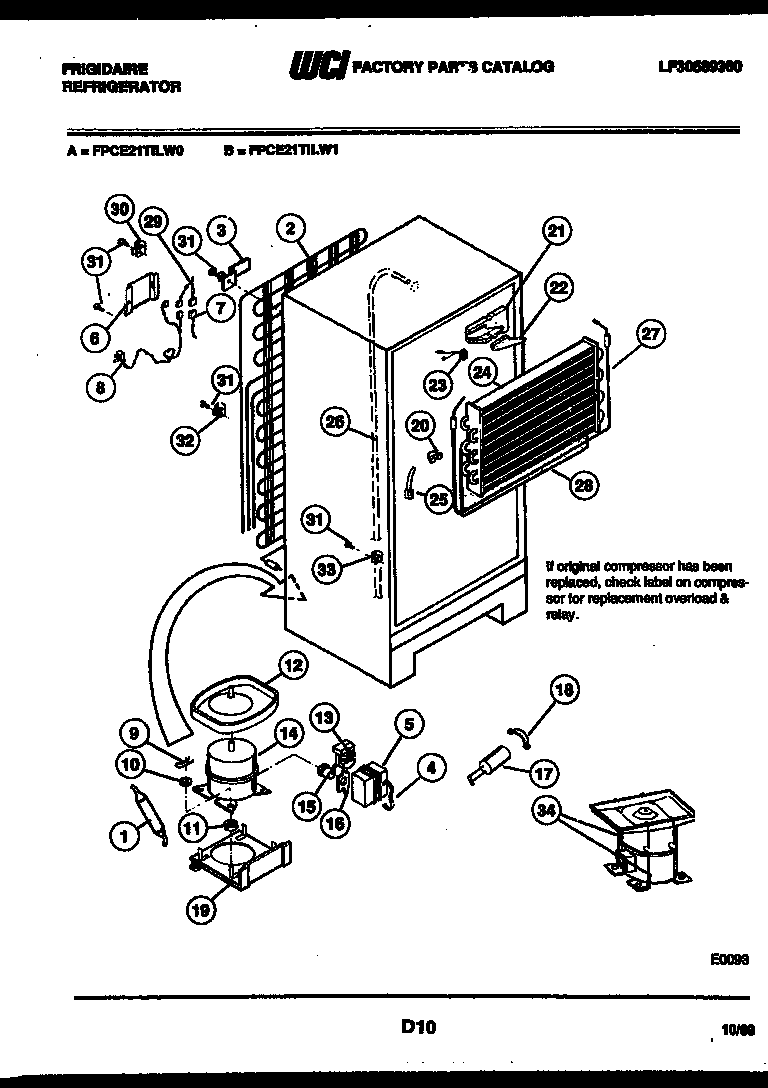

FPCE21TILW0 06 – SYSTEM AND AUTOMATIC DEFROST PARTS

FPCE21TILW0 06 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

FPCE21TILW0 06 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*27067WCI 09960001
*270675303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
15303305677 Frigidaire Replacement Filter Dryer Filters
2WCI G163133
3WCI 08003600
45303006412 Frigidaire Refrigerator Cover Mounting Strap
5WCI 08006982
6WCI 08013644
7HARNESS-COMPRESSOR
8WCI 08000064
9CLIP (4)
10WCI 08003597
11218513300 Frigidaire Refrigerator Compressor Mount Grommet
12ANUT
12DEFROST PAN & NUT
13WCI 3007173
14WCI 3916012
15WCI 08017532
16WCI 3007335
17CAPACITOR-RUN
18STRAP-CAPACITOR MTG
19WCI 08013663
20WCI 08017227
21WCI 08013648
22WCI 08013646
235303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
24WCI 08000062
255308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
26WCI 08000728
275317842502 Frigidaire Defrost Heater
28WCI 08009569
29HARNESS-WIRING, CONTROL/DIVIDER (NOT ILLUSTRATED)
30WCI 08000187
315304455651 Frigidaire Refrigerator Screw
325303001199 Frigidaire Refrigerator Wiring Harness Clamp
33240396801 Frigidaire Refrigerator Tube Clamp
34PAN RETAINER KIT-SERVICE
