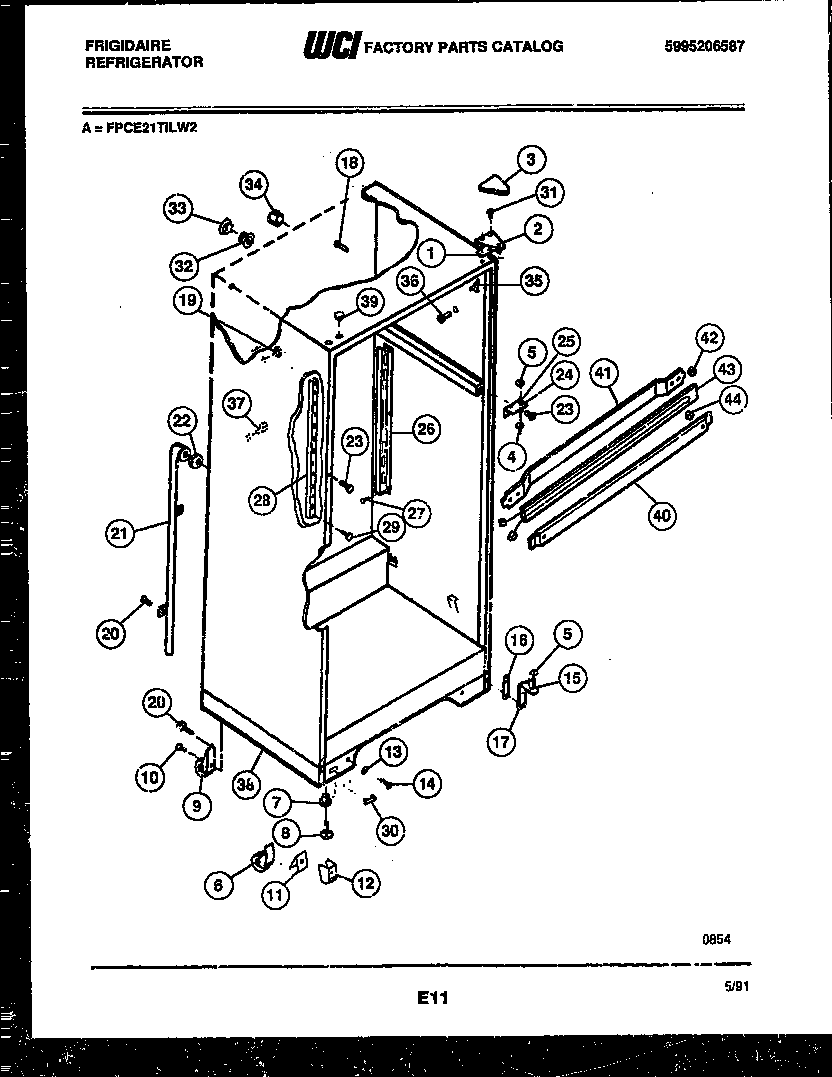

FPCE21TILW2 03 – CABINET PARTS

Products

Position	Product
1	SHIM - UPPER HINGE
2A	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
2	BRACKET-UPPER HINGE
3	COVER-UPPER HINGE, WHITE
4	WCI 5308000186
5	WASHER, .34 X .62 X .05, NYLON
6	WCI 5308009760
7	WCI 5308003584
8	SCREW-LEVELING (4)
9	WCI 5308009773
10	BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
11	WCI 5308009790
12	SUPPORT, BASE (2)
13	WCI 5308011326
14	BOLT-ROLLER ADJ, (2) (NON-ILLUSTRATED)
15	5303001321 Frigidaire Refrigerator Lower Hinge Pin
16	SHIM-LOWER HINGE
17	HINGE BRACKET - BOTTOM
17A	241710601 Frigidaire Refrigerator Screw
18	SUPPORT-COIL COVER
19	PLUG, BUTTON, CABINET LINER (NI)
20	5304455651 Frigidaire Refrigerator Screw
21	WCI 5303210377
22	WCI 5303207353
23	WCI 5308012258
24	BRACKET-CTR HINGE
25	WCI 5308000184
26	CHANNEL, RH & LH
27	5304455852 Frigidaire Refrigerator Screw
28	WCI 5303015409
29	WCI 5308016568
30	COVER-HOLE, LOWER HINGE
32	WCI 5303001286
33	WCI 5303001287
34	TUBE-RUBBER
35	TRIM-CABINET CORNER, WHITE
36	5304509705 Frigidaire Refrigerator Grommet
37	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
38	CABINET BASE
39	PLUG-BUTTON, WHITE
40	WCI 5303200366
41	WCI 5308010008
42	SPACER-MULLION MTG, STEEL
43	WCI 5303210351
44	WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
