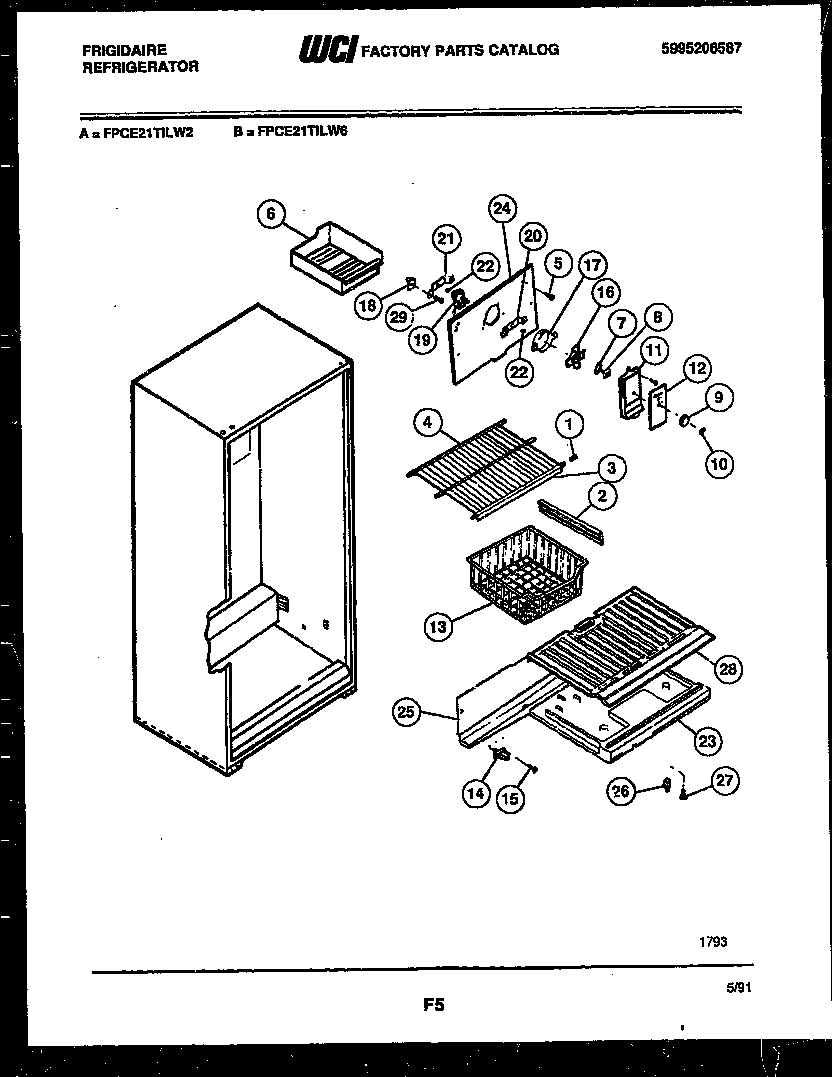

FPCE21TILW2 07 – SHELVES AND SUPPORTSadmin2025-04-26T08:52:40+00:00FPCE21TILW2 07 – SHELVES AND SUPPORTS
Products
| Position | Product |
|---|
| *93189 | 5303208309 Frigidaire Refrigerator Plug Hole |
| *93190 | NUT, ``U`` TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED) |
| 1 | END CAP-SHELF,PROTECTOR |
| 2 | WCI 5303206521 |
| 2A | HANGER-BASKET, LH (NON-ILLUSTRATED) |
| 3 | WCI 530320647 |
| 4 | SHELF |
| 6 | 5303212918 Frigidaire Refrigerator Cont |
| 7 | DAMPER-FAN COVER |
| 8 | Nut,push-on |
| 9 | WCI 5303206677 |
| 10 | LABEL, KNOB |
| 11A | 5304455650 Frigidaire Refrigerator Screw |
| 11 | WCI 3205541 |
| 12 | WCI 5303207206 |
| 13 | WCI 5303206649 |
| 14 | WCI 5308000056 |
| 15 | WCI 5308013647 |
| 16 | 5308000010 Frigidaire Refrigerator Evaporator Fan Blade |
| 17 | RING-FAN ORIFICE |
| 18 | WCI 5308000107 |
| 19 | 5300158289 Frigidaire Evaporator Fan Motor |
| 20 | WCI 5303205118 |
| 21 | BRACKET-MOTOR MTG, REAR |
| 22 | G187559 Frigidaire Refrigerator Bushing |
| 23 | WCI 5303019039 |
| 23A | HARNESS-WIRING, CONTROL/DIVIDER (NOT ILLUSTRATED) |
| 24 | COVER, COIL |
| 25 | WCI 5303001470 |
| 26 | 5309918806 Frigidaire Refrigerator Light Switch Door |
| 27 | WCI 5303001380 |
| 28 | BOTTOM, FREEZER |
| 29 | 5304455651 Frigidaire Refrigerator Screw |
