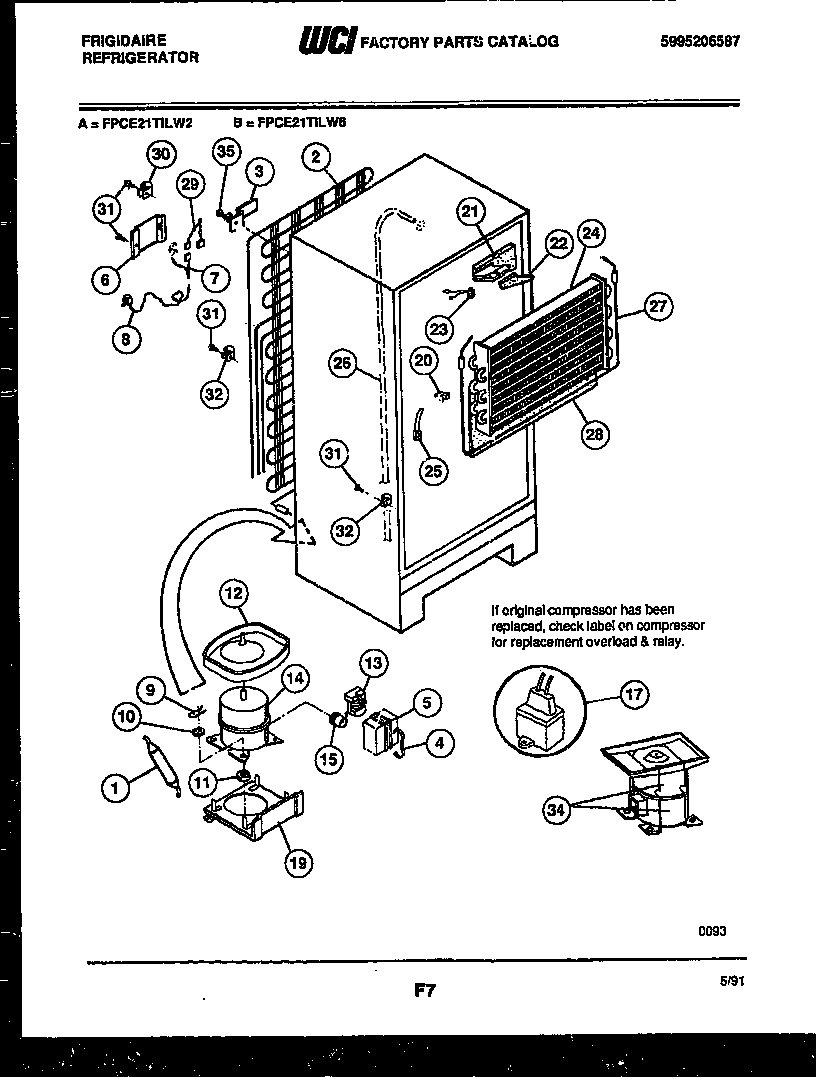

FPCE21TILW2 08 – SYSTEM AND AUTOMATIC DEFROST PARTS

FPCE21TILW2 08 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

FPCE21TILW2 08 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*93212WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
*932145304455846 Frigidaire Refrigerator Clamp
15303305677 Frigidaire Replacement Filter Dryer Filters
2WCI 5300163133
3WCI 5393001342
45303006412 Frigidaire Refrigerator Cover Mounting Strap
6WCI 5303001197
7WIRING HARNESS, COMPRESSOR,
8CORD-ELECTRIC POWER
9WASHER-COMPR MTG
10WCI 08003597
11218513300 Frigidaire Refrigerator Compressor Mount Grommet
12PAN-DEFROST DRAIN, ORIG/SVCE COMPR
12ANut,lock `1/4-20 ,drain pan mtg
13RELAY-TL
14COMPRESSOR W/ ELECTRICALS
15WCI 5303273111
17CAPACITOR
19WCI 5308013663
20INSULATION BLOCK, LH
21AINSULATION BLOCK, RH
22AINSULATION PLUG, RH
235303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
24WCI 5300162506
255308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
26WCI 5308000728
275317842502 Frigidaire Defrost Heater
28INSULATOR-EVAP, PLASTIC
29HARNESS-WIRING, CONTROL/DIVIDER (NOT ILLUSTRATED)
305303001199 Frigidaire Refrigerator Wiring Harness Clamp
315304455651 Frigidaire Refrigerator Screw
325308000133 Frigidaire Refrigerator Clamp
34BHOT TUBE REPAIR KIT-SERVICE
34A5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
34PAN RETAINER KIT, SERVICE
355308000039 Frigidaire Refrigerator Screw
