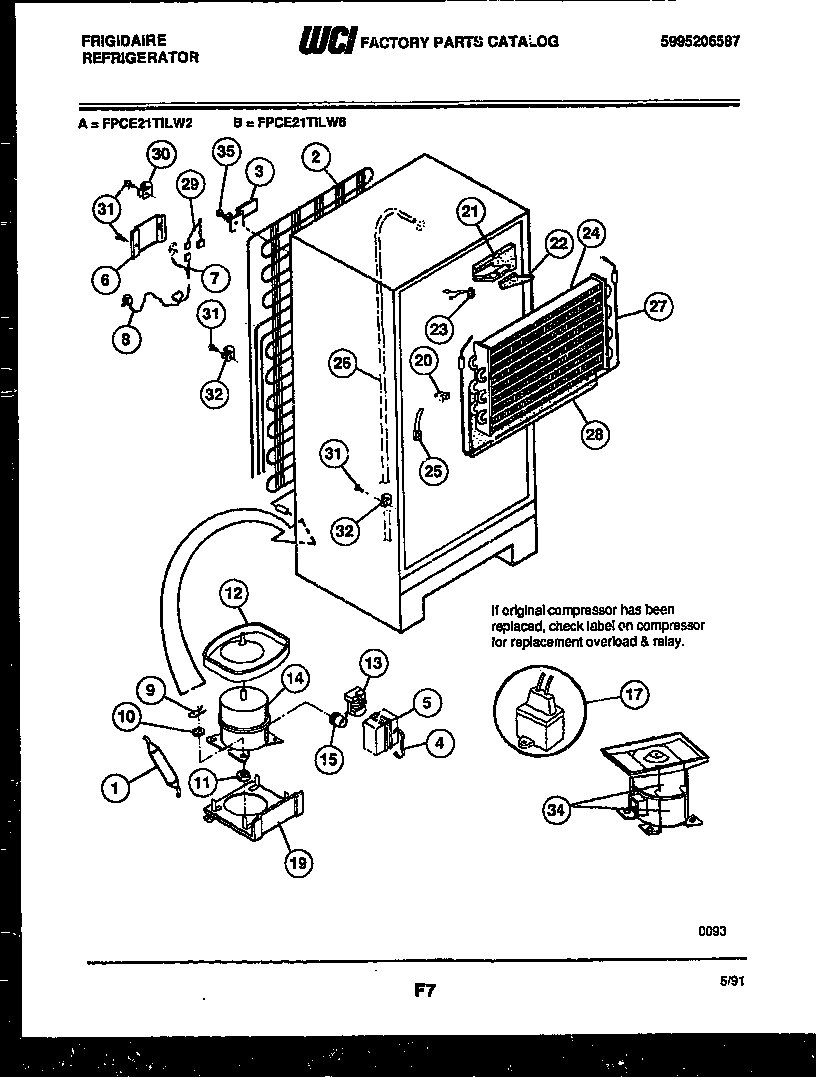

FPCE21TILW6 08 – SYSTEM AND AUTOMATIC DEFROST PARTS

FPCE21TILW6 08 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

FPCE21TILW6 08 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*932145304455846 Frigidaire Refrigerator Clamp
*93212WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
15303305677 Frigidaire Replacement Filter Dryer Filters
2WCI 5300163133
3WCI 5393001342
45303006412 Frigidaire Refrigerator Cover Mounting Strap
6WCI 5303001197
7WIRING HARNESS, COMPRESSOR,
8CORD-ELECTRIC POWER
9ACLIP – COMPRESSOR MTG
10AWASHER-COMPR MTG
11218513300 Frigidaire Refrigerator Compressor Mount Grommet
12PAN-DEFROST DRAIN, ORIG/SVCE COMPR
12ANut,lock `1/4-20 ,drain pan mtg
13RELAY-TL
14COMPRESSOR W/ ELECTRICALS
15WCI 5308017532
17CAPACITOR
19WCI 5308013663
20INSULATION BLOCK, LH
21AINSULATION BLOCK, RH
22AINSULATION PLUG, RH
235303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
24AEVAPORATOR
255308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
26WCI 5308000728
275317842502 Frigidaire Defrost Heater
28INSULATOR-EVAP, PLASTIC
29HARNESS-WIRING, CONTROL/DIVIDER (NOT ILLUSTRATED)
305303001199 Frigidaire Refrigerator Wiring Harness Clamp
315304455651 Frigidaire Refrigerator Screw
325308000133 Frigidaire Refrigerator Clamp
34PAN RETAINER KIT, SERVICE
34A5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
34BHOT TUBE REPAIR KIT-SERVICE
355308000039 Frigidaire Refrigerator Screw
