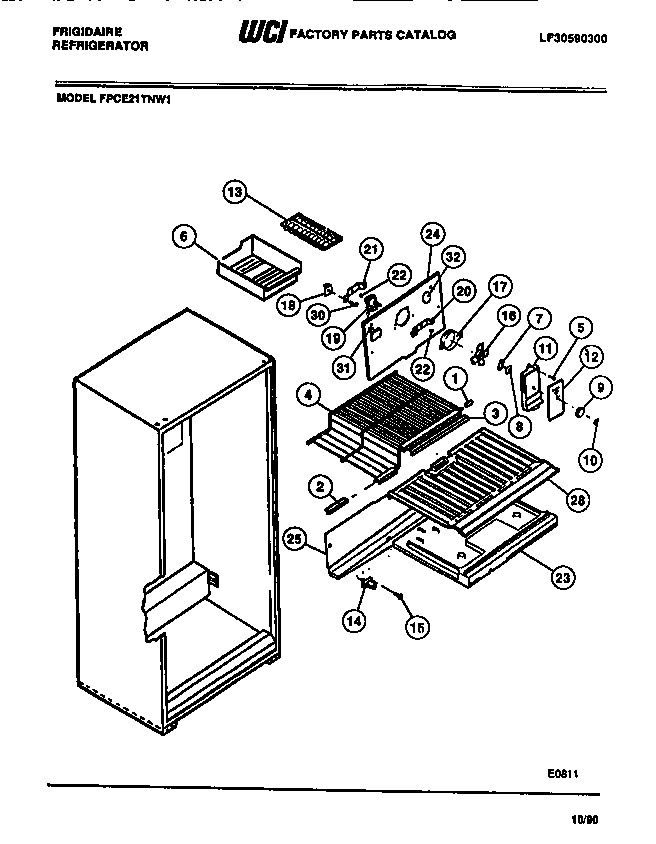

FPCE21TNH1 05 – FREEZER COMPARTMENT, SHELF, BLOWER

Products

Position	Product
1	END CAP-SHELF,PROTECTOR
2	TRIM-SHELF-FREEZER
3	WCI 3017428
4	WCI 3019033
6	5303212918 Frigidaire Refrigerator Cont
7	DAMPER-FAN COVER
8	Nut,push-on
9	KNOB, DAMPER
10	LABEL, KNOB
11	WCI 08009825
12	WCI 08009937
13	WCI 01121808
14	WCI 5308000056
15	WCI 5303001361
16	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
17	RING-FAN ORIFICE
17A	218843801 Frigidaire Refrigerator Screw
18	WCI 5308000107
19	5300158289 Frigidaire Evaporator Fan Motor
20	WCI 5303001226
21	WCI 5303001227
22	G187559 Frigidaire Refrigerator Bushing
23	WCI 5303019039
23A	3205266 Frigidaire Refrigerator Edge Protector
24	COVER, COIL
24B	NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
24A	5304455650 Frigidaire Refrigerator Screw
25	WCI 5303001470
28C	WCI 08012329
28B	5304455852 Frigidaire Refrigerator Screw
28A	WCI 08009824
28	BOTTOM, FREEZER
30	5304455651 Frigidaire Refrigerator Screw
31	BUTTON – DECORATIVE PLUG
32A	WCI 5303211926
32	5303208309 Frigidaire Refrigerator Plug Hole
