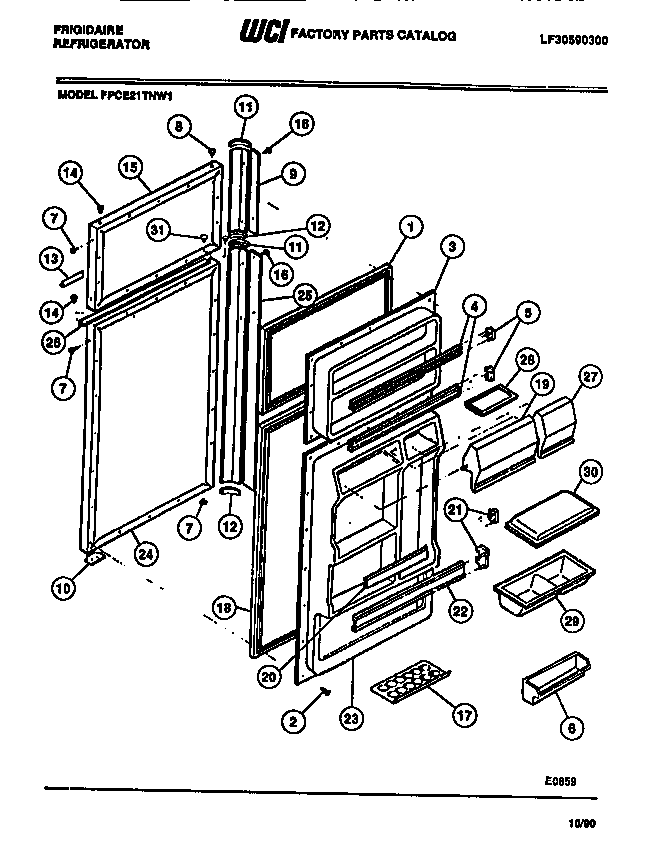

FPCE21TNL1 02 – FOOD & FREEZER DOORS

FPCE21TNL1 02 – FOOD & FREEZER DOORS

Written by

in

FPCE21TNL1 02 – FOOD & FREEZER DOORS

Products

PositionProduct
1WCI 5308017483
2218843801 Frigidaire Refrigerator Screw
3WCI 3019030
4WCI 3017419
5A5303323481 Frigidaire Refrigerator Left Hand Door Bar End Cap
55303323480 Frigidaire Refrigerator Door Bar End Cap Rh
6WCI 5303200412
7BPLUG-BUTTON, ALMOND, HANDLE/DR STOP
8BPLUG-BUTTON, ALMOND, HINGE BRG HOLE
9HANDLE-COMPLETE FRZR (W/ TRIM & END CAPS)
10WCI 5308000255
10ADOOR STOP, REFR SECTION
10BWCI 5308011745
11WCI 5308010239
12END CAP-BOTTOM (2)
13WCI 3201581
14BEARING-HINGE
15BPANEL, FREEZER, ALMD
16SCREW-HANDLE MTG, 8 CR TRUSS HD, 10(D) X 1/2
17215817806 Frigidaire Refrigerator Egg Tray
18GASKET-REFR DOOR, BROWN, MAGNETIC
19WCI 3018868
21A5303325991 Frigidaire Refrigerator Door Bar Endcap
215303325990 Frigidaire Refrigerator Door Bar End Cap
22215516220 Frigidaire Refrigerator Door Rack
22ASNUGGER-FINGER (NON-ILLUSTRATED)
23WCI 5303200596
24BWCI 5308009930
25HANDLE-COMPLETE
26WCI 5308009857
27DOOR-DAIRY
285308000716 Frigidaire Refrigerator Dish
29WCI 5303200413
30WCI 5303200414
31WCI 5308009601
31AINSULATION-BULK (NON-ILLUSTRATED)
