FPCE21TNL1 03 – CABINET

FPCE21TNL1 03 – CABINET

Written by

in

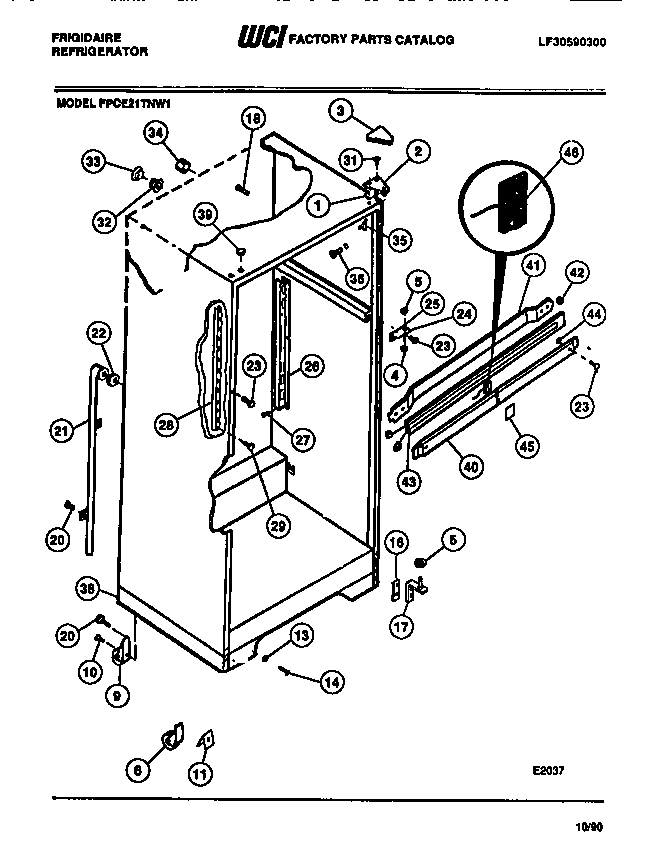

FPCE21TNL1 03 – CABINET

Products

PositionProduct
1SHIM – UPPER HINGE
2BRACKET-UPPER HINGE
3BCOVER-UPPER HINGE, ALMOND
4WCI 5308000186
5WASHER, .34 X .62 X .05, NYLON
6WCI 5303212490
9WCI 5308009773
10BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
11WCI 5308009790
13WCI 5308011326
14WCI 5303212598
16WCI 5303212488
17A241710601 Frigidaire Refrigerator Screw
17BRACKET-LOWER HINGE, W/ HINGE PIN
18SUPPORT-COIL COVER
205304455651 Frigidaire Refrigerator Screw
21WCI 5303210377
22WCI 5303207353
23WCI 5308012258
24BRACKET-CTR HINGE
25WCI 5308000184
26CHANNEL, RH & LH
275304455852 Frigidaire Refrigerator Screw
28WCI 5303015409
29WCI 08016568
32WCI 5303001286
33WCI 5303001287
34TUBE-RUBBER
35BTRIM-CABINET CORNER, ALMOND
365304509705 Frigidaire Refrigerator Grommet
36A5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
38WCI 5303212487
39BPLUG-BUTTON, ALMOND, UPR HINGE HOLES
40BWCI 5303211922
41WCI 5308010008
42SPACER-MULLION MTG, STEEL
43WCI 5303210351
44WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
45BWCI 5303211919
46CTAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
46BPLUG, BUTTON, CABINET LINER (NI)
46ETAPPING PLATE, GUSSET, RH (NOT ILLUSTRATED)
46AWCI 5303211925
46WCI 5303211924
46DTAPPING PLATE, GUSSET, LH (NOT ILLUSTRATED)
