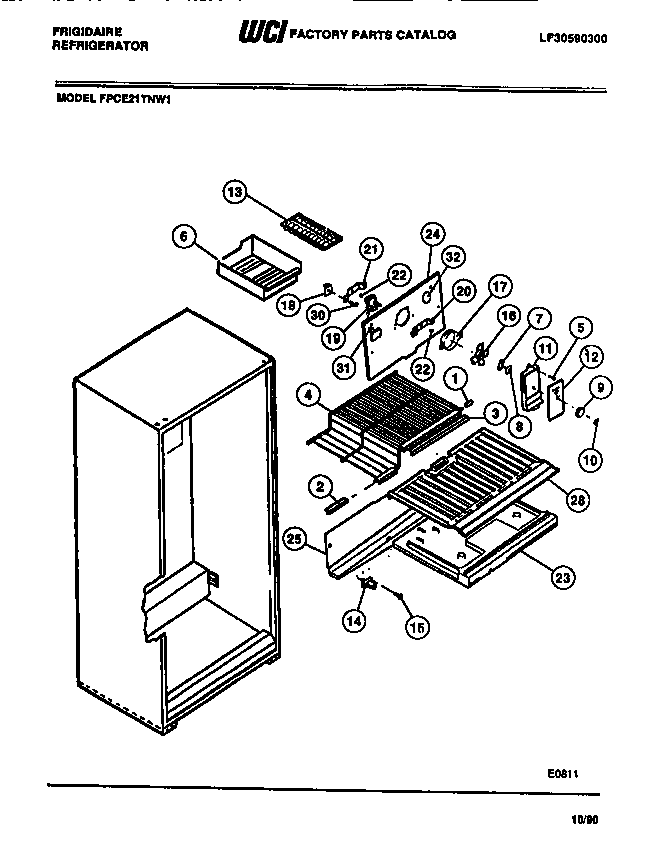

FPCE21TNL1 05 – FREEZER COMPARTMENT, SHELF, BLOWER

FPCE21TNL1 05 – FREEZER COMPARTMENT, SHELF, BLOWER

Written by

in

FPCE21TNL1 05 – FREEZER COMPARTMENT, SHELF, BLOWER

Products

PositionProduct
1END CAP-SHELF,PROTECTOR
2TRIM-SHELF-FREEZER
3WCI 3017428
4WCI 3019033
65303212918 Frigidaire Refrigerator Cont
7DAMPER-FAN COVER
8Nut,push-on
9KNOB, DAMPER
10LABEL, KNOB
11WCI 08009825
12WCI 08009937
13WCI 01121808
14WCI 5308000056
15WCI 5303001361
165308000010 Frigidaire Refrigerator Evaporator Fan Blade
17RING-FAN ORIFICE
17A218843801 Frigidaire Refrigerator Screw
18WCI 5308000107
195300158289 Frigidaire Evaporator Fan Motor
20WCI 5303001226
21WCI 5303001227
22G187559 Frigidaire Refrigerator Bushing
23WCI 5303019039
23A3205266 Frigidaire Refrigerator Edge Protector
24COVER, COIL
24BNUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
24A5304455650 Frigidaire Refrigerator Screw
25WCI 5303001470
28CWCI 08012329
28B5304455852 Frigidaire Refrigerator Screw
28AWCI 08009824
28BOTTOM, FREEZER
305304455651 Frigidaire Refrigerator Screw
31BUTTON – DECORATIVE PLUG
32AWCI 5303211926
325303208309 Frigidaire Refrigerator Plug Hole
