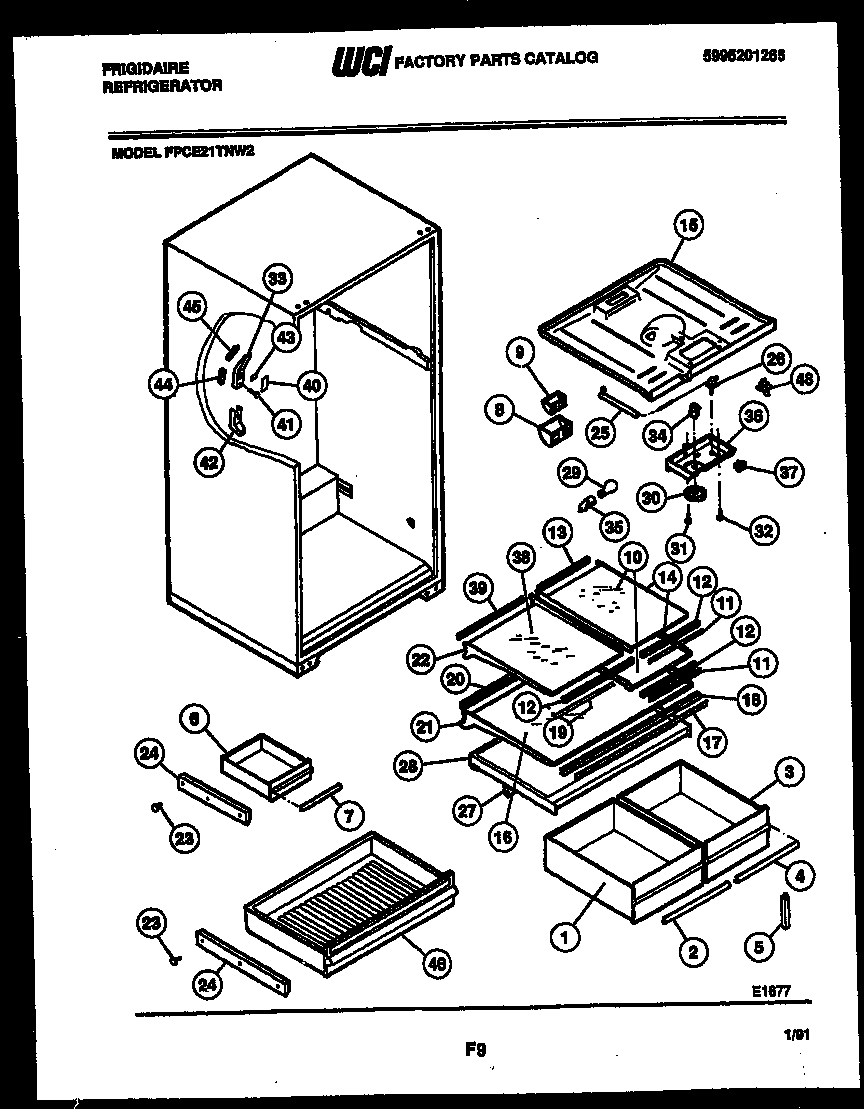

FPCE21TNL2 04 – SHELVES AND SUPPORTS

Products

PositionProduct
*40162LOCK-SHELF TRIM, REAR
*40162EXTENSION, AIR DEFLECTOR, WITH INSULATION
1PAN, CRISPER, LH
2TRIM-PAN
3WCI 3200571
4TRIM-PAN
5SUPPORT, COVER
6WCI 3200572
7WCI 3018986
8WCI 5303001448
9A5303001449 Frigidaire Refrigerator Seal
9DEFLECTRO, AIR, W/SEAL
10WCI 5303211959
11WCI 3019036
12RETAINER-GLASS, (3) (NON-ILLUSTRATED)
13TRIM, REAR (2)
14WCI 5303209266
15AWCI 5303001380
15WCI 3019038
16WCI 5303211964
17WCI 3200575
18WCI 5303211965
19TRIM, MEAT SHELF
20AWCI 5303211966
20WCI 5303211962
21WCI 5303211963
22WCI 5303209270
23WCI 08014528
24AHANGER-PAN RH (NON-ILLUSTRATED)
24HANGER-PAN LH
25WCI 3018891
26215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
27GASKET-CRISPER COVER (NON-ILLUSTRATED)
28WCI 5303019035
28BWCI 5303211968
28CWCI 5303200580
28AWCI 3200579
29316538904 Frigidaire Oven Lamp Light
30KNOB, TEMP CONTROL
31WCI 5303001260
325304455649 Frigidaire Refrigerator Screw
33WCI 08009767
34WCI 5303018894
35218906802 Frigidaire Light Lamp Socket
36CONTROL BOX
36A5304455650 Frigidaire Refrigerator Screw
37WCI 5303018896
38GLASS, MEAT SHELF
39TRIM-HALF SHELF, MEAT KPR SHELF, REAR
40WCI 3200588
41WCI 5308016568
42DUCT-MEAT KEEPER, LOWER
43CONTROL-DAMPER, MEAT KPR DUCT
44INSULATION-AIR DUCT, LOWER
45INSULATION-AIR DUCT, UPPER
46WCI 3200584
46AWCI 3200589
46BWCI 3200585
485309918806 Frigidaire Refrigerator Light Switch Door
