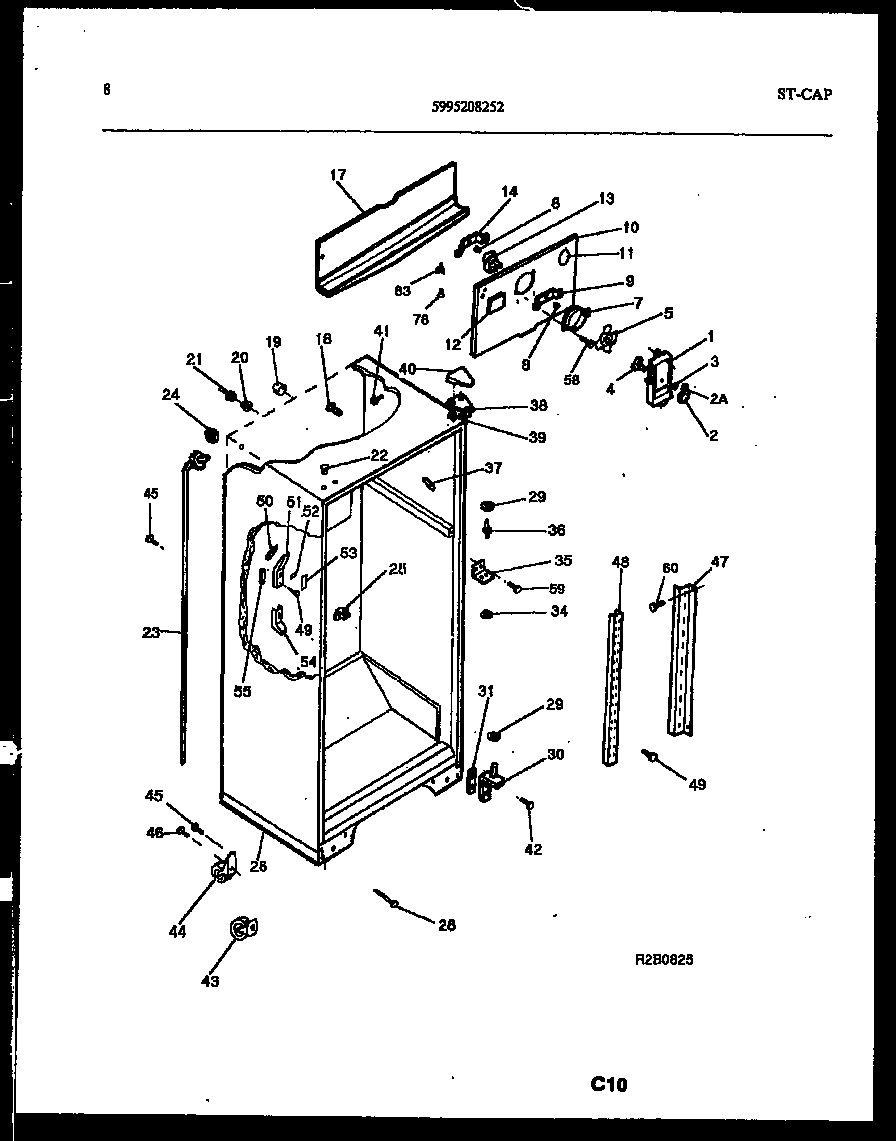

FPCE21TPH0 05 – CABINET PARTS

Products

Position	Product
*54114	WCI 08012329
*54114	PLUG, BUTTON, CABINET LINER (NI)
36	WCI 5308000184
37	WCI 5303202338
38	BRACKET-UPPER HINGE
38B	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
39	SHIM - UPPER HINGE
40	COVER - HINGE-WHEAT
41	5304509705 Frigidaire Refrigerator Grommet
41A	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
42	241710601 Frigidaire Refrigerator Screw
43	WCI 5303212490
44	WCI 5308009773
45	5304455651 Frigidaire Refrigerator Screw
46	BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
47	CHANNEL, RH & LH
48	WCI 5303015409
49	WCI 5308016568
50	INSULATION-AIR DUCT, UPPER
51	WCI 08009767
52	CONTROL-DAMPER, MEAT KPR DUCT
53	WCI 3200588
54	DUCT-MEAT KEEPER, LOWER
55	INSULATION-AIR DUCT, LOWER
59	WCI 5308012258
60	5304455852 Frigidaire Refrigerator Screw
83	WCI 5308000107
