FPCE21TRL0 04 – CABINET PARTS

FPCE21TRL0 04 – CABINET PARTS

Written by

in

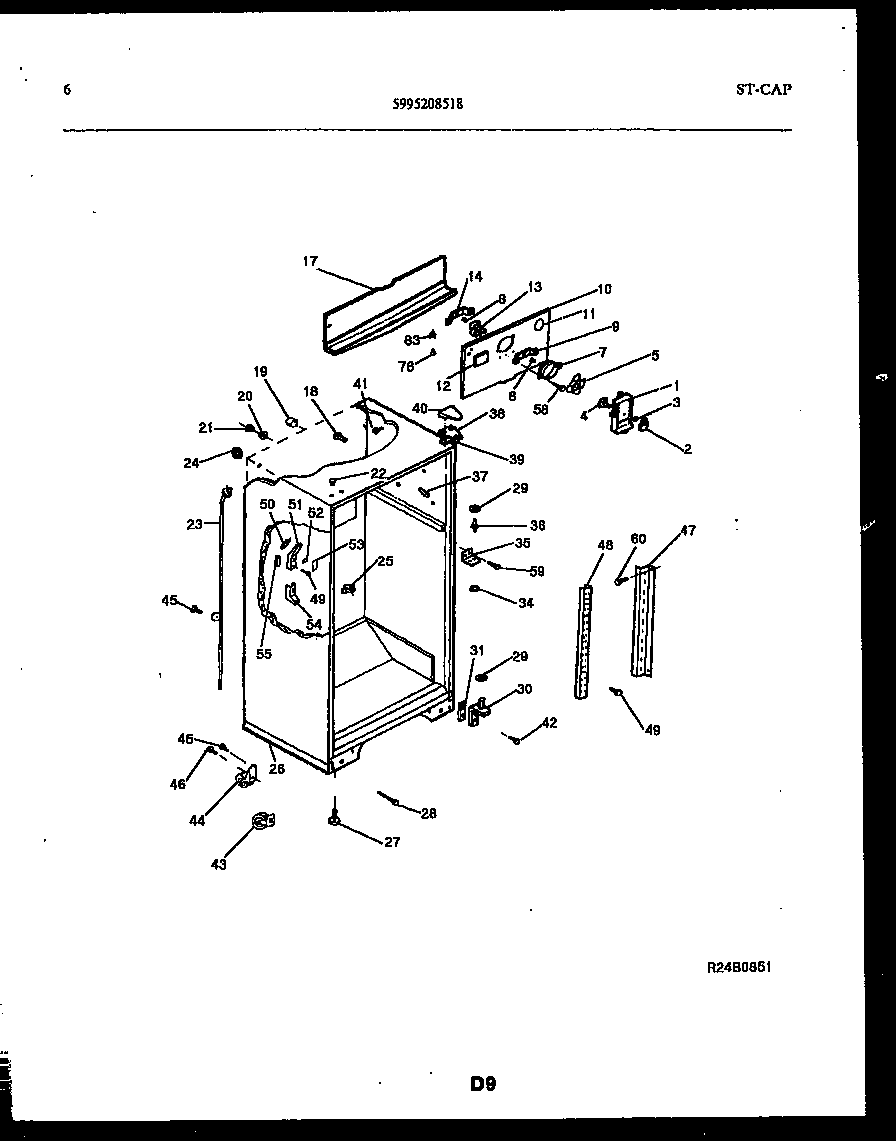

FPCE21TRL0 04 – CABINET PARTS

Products

PositionProduct
1WCI 5303275708
1A5304455650 Frigidaire Refrigerator Screw
2WCI 5303275839
3Nut,push-on
4DAMPER-FAN COVER
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
10ANUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
10COVER, COIL
115303208309 Frigidaire Refrigerator Plug Hole
12BUTTON – DECORATIVE PLUG
135300158289 Frigidaire Evaporator Fan Motor
14BRACKET-MOTOR MTG, REAR
17WCI 5303001470
18SUPPORT-COIL COVER
19TUBE-RUBBER
20WCI 5303001286
21WCI 5303001287
22PLUG-BUTTON, ALMOND, UPR HINGE HOLES
23WCI 5303210377
24WCI 5303207353
25WCI 5308000056
25AWCI 5303001361
26WCI 5303212487
27Screw-leveling,(2)
28BOLT-ROLLER ADJ, HEX HD, 1/4-28 X 2.750
29WASHER, .34 X .62 X .05, NYLON
30ATAPPING PLATE, GUSSET, RH (NOT ILLUSTRATED)
30BRACKET-LOWER HINGE, W/ HINGE PIN
30BTAPPING PLATE, GUSSET, LH (NOT ILLUSTRATED)
31WCI 5303212488
34WCI 5308000186
35BRACKET-CTR HINGE
