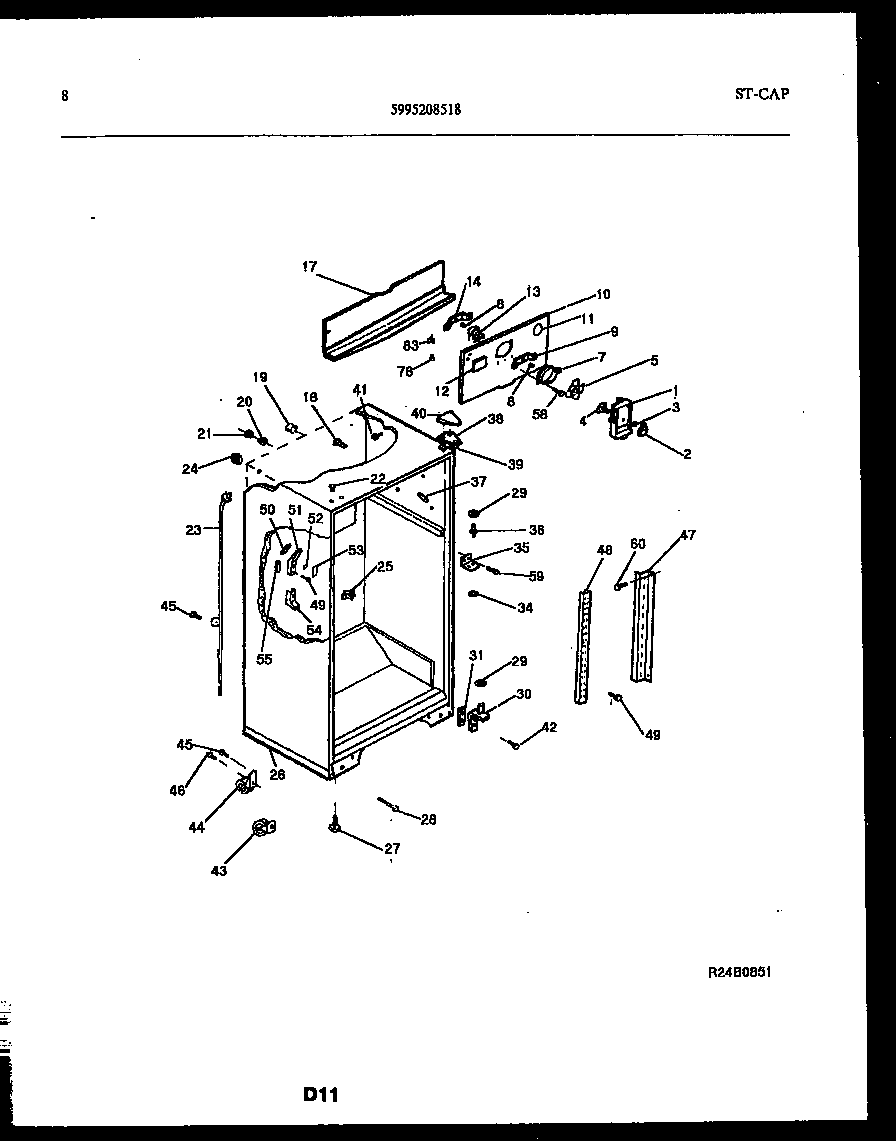

FPCE21TRW1 05 – CABINET PARTS

Products

Position	Product
*53595	WCI 08012329
*53595	PLUG, BUTTON, CABINET LINER (NI)
11	WCI 5303275755
17	WCI 5303275835
36	WCI 5308000184
37	TRIM-CABINET CORNER, WHITE
38	BRACKET-UPPER HINGE
38B	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
39	SHIM – UPPER HINGE
40	COVER-UPPER HINGE, WHITE
41	5304509705 Frigidaire Refrigerator Grommet
41A	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
42	241710601 Frigidaire Refrigerator Screw
43	WCI 5303212490
44	WCI 5308009773
45	5304455651 Frigidaire Refrigerator Screw
46	BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
47	CHANNEL, RH & LH
48	WCI 5303015409
49	WCI 5308016568
50	INSULATION-AIR DUCT, UPPER
51	WCI 3203820
52	CONTROL-DAMPER, MEAT KPR DUCT
53	WCI 5303275792
54	DUCT-MEAT KEEPER, LOWER
55	INSULATION-AIR DUCT, LOWER
59	WCI 5308012258
60	5304455852 Frigidaire Refrigerator Screw
83	WCI 5308000107
