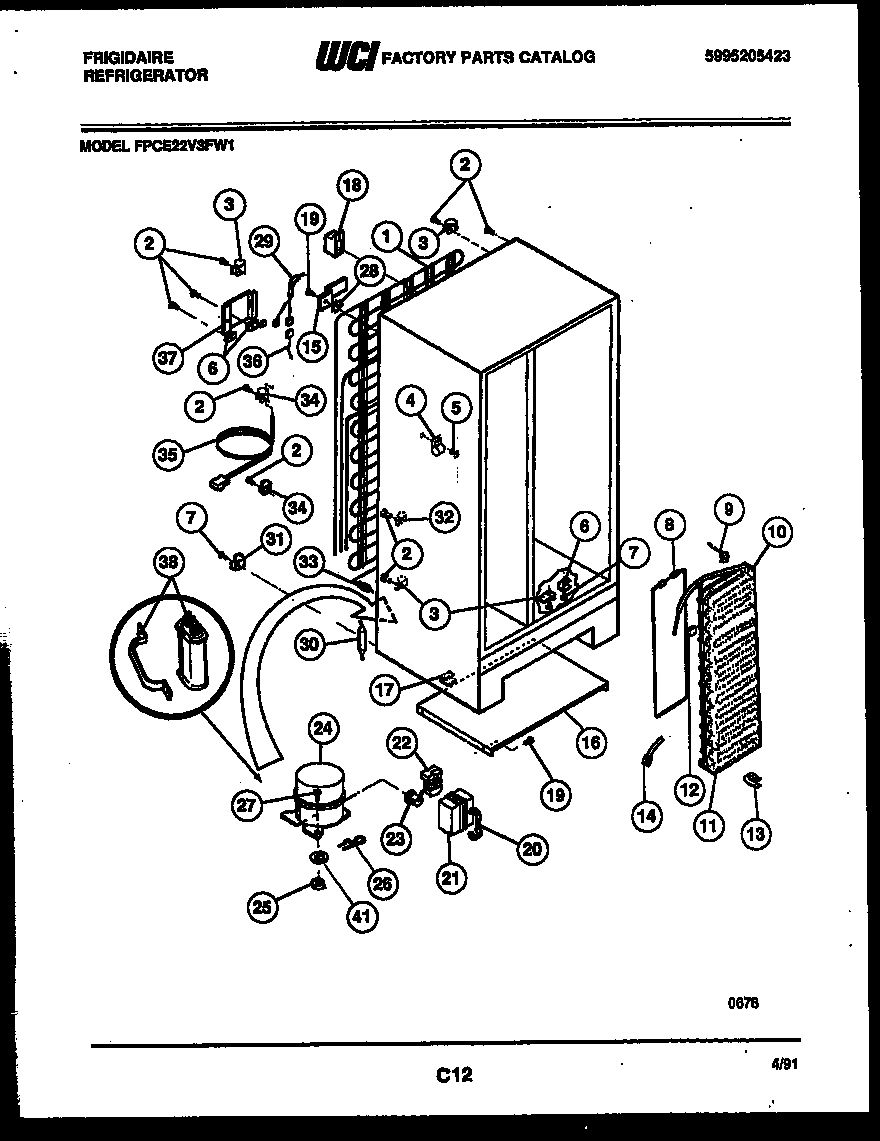

FPCE22V3FA1 07 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
*45746	WCI 5300189379
1	WCI 5303007521
2	5304455651 Frigidaire Refrigerator Screw
3	CLAMP-TUBE
4	WCI 5300166705
7	218843801 Frigidaire Refrigerator Screw
8	WCI 5303007568
9	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
10	WCI 5308017565
11B	WCI 5303001235
11	WCI 5303916605
11A	WCI 5308009619
12	WCI 5308000828
13	WCI 5308002777
14	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
15	BRACKET, MOUNTIN, CONDENSER, (4)
16	WCI 5308017112
17	WCI 08000099
18	WCI 5308002782
19	5308000039 Frigidaire Refrigerator Screw
20	5303006412 Frigidaire Refrigerator Cover Mounting Strap
22	RELAY-TL
23	5303271616 Frigidaire Refrigerator P1-Overload
24	WCI 5308950223
25	218513300 Frigidaire Refrigerator Compressor Mount Grommet
26	CLIP - COMPRESSOR MTG
27	WCI 08000029
28	WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
29	WIRING HARNESS, CONTROLS
30	5303305677 Frigidaire Replacement Filter Dryer Filters
32	5308000133 Frigidaire Refrigerator Clamp
33	SLEEVE-CONNECTOR
34	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
35	CORD-ELECTRIC POWER
36	WCI 5308009616
37	WCI 5303001197
38	CAPACITOR
41	WASHER-COMPR MTG
