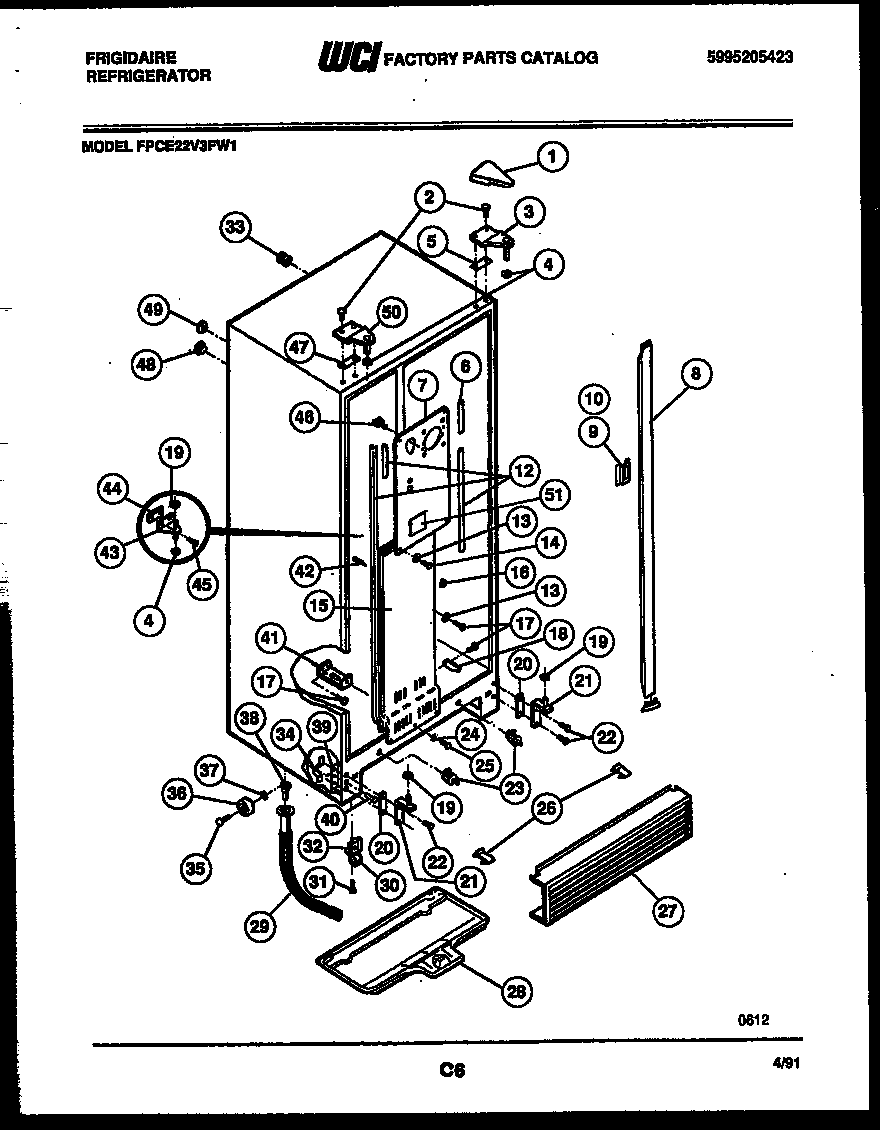

FPCE22V3FH1 04 – CABINET PARTS

Products

Position	Product
*45736	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
1	COVER - HINGE-WHEAT
2	241710601 Frigidaire Refrigerator Screw
3	WCI 5308012934
4	WASHER, .28 X .62 X .19, NYLON
6	WCI 5303001219
7B	5303208309 Frigidaire Refrigerator Plug Hole
7A	NUT, ``U`` TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
7	WCI 5303006543
8	WCI 3916446
9	WCI 5300169100
10	WCI 5303001281
12	WCI 5303001233
13	WASHER-NYLON,3/16 X 5/8 OD
15	WCI 08000824
16	WCI 5303001231
16A	WCI 5303001230
17	5304455650 Frigidaire Refrigerator Screw
18	DAMPER, MEAT KEEPER
19	WCI 5308000186
20	SHIM-BTM HINGE (3)
21	HINGE-BOTTOM
22	SCREW-HINGE MTG (2) (NON-ILLUSTRATED)
23	5303289051 Frigidaire Refrigerator Light Switch
24	WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
25	WCI 08009585
26	CLIP, GRILLE (2)
27	WCI 3200661
28	WCI 5303001026
29	WCI 5303209723
30	ROLLER-FRONT (2)
31	SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
32	SCREW-ROLLER ADJ (2) (NON-ILLUSTRATED)
33	TUBE-RUBBER
34	WCI 5300077210
35	WCI 5308000266
36	WCI 5303001030
37	Nut,push-on
38	WCI 5308000853
39	WCI 5303001273
40	WCI 5308000013
41	WCI 5308000738
42	WCI 5303001250
43	WCI 5300169531
44	WCI 08002788
45	WCI 5308012258
46	SUPPORT-COIL COVER
47	SHIM - UPPER HINGE
48	WCI 5303001286
49	WCI 5303001287
50	WCI 5303001062
51	PLUG-DECORATIVE, ICE MAKER HOLE
