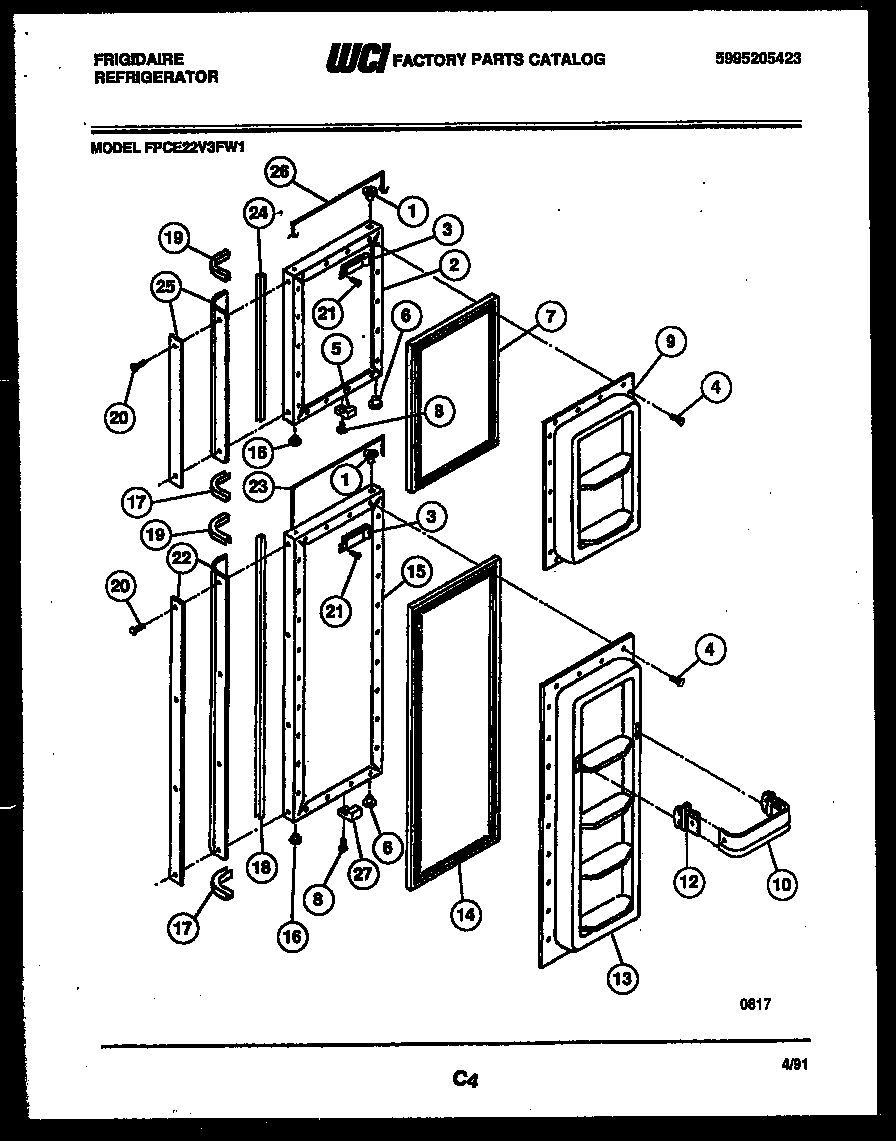

FPCE22V3FL1 03 – FREEZER DOOR PARTS

Products

Position	Product
1	WCI 5303001022
2	WCI 5308009966
3	WCI 5303200272
5	WCI 5308002802
6	BEARING-HINGE
7	GASKET-FRZR DOOR, MAGNETIC, UPPER
8	5304455651 Frigidaire Refrigerator Screw
9	WCI 3018625
10	WCI 3206367
12A	SUPPORT-DOOR RACK, RH, (6)
12	SUPPORT-DOOR RACK, LH, (6)
13	WCI 3200677
14	GASKET-FRZR DOOR, MAGNETIC, LOWER
15	WCI 5308009961
16	WCI 5315230801
17	WCI 5308010239
19	END CAP-BOTTOM (2)
20	SCREW-HANDLE MTG, 8 CR TRUSS HD, 10(D) X 1/2
21	WCI 5303001020
22	WCI 08017428
23	WCI 3018629
24	WCI 5308010229
25	WCI 08017432
26	WCI 3018630
27	WCI 5308000790
