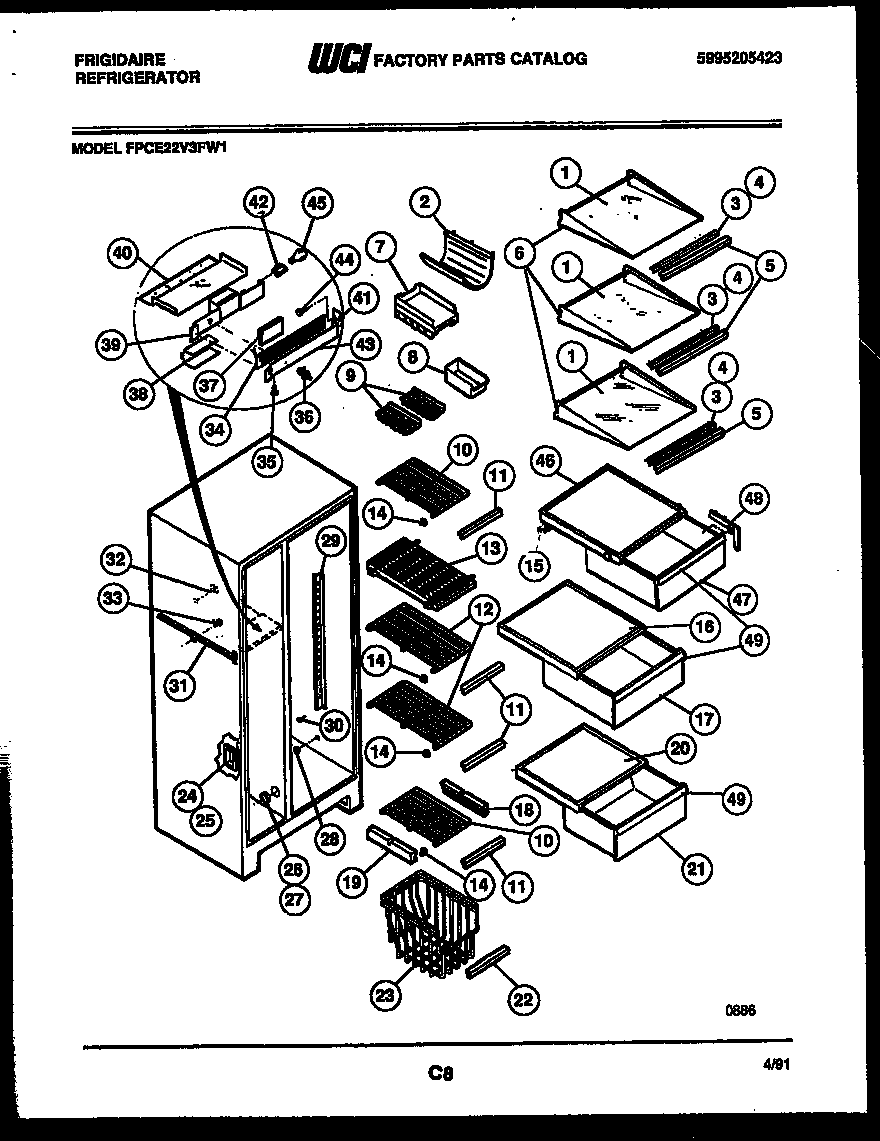

FPCE22V3FL1 05 – SHELVES AND SUPPORTS

Products

Position	Product
1	SHELF-GLASS, REFR SHELF, (3)
2	RACK-WINE
3	TRIM-REFR SHELF, SNAP-ON, REAR, (3)
4	RETAINER-GLASS (3) (NON-ILLUSTRATED)
5	WCI 3200685
6	FRAME-REFR SHELF, CANTILEVER, (3)
7	WCI 08009824
8	5303212918 Frigidaire Refrigerator Cont
9	WCI 01121808
10	WCI 08000908
11	WCI 3018646
12	SHELF-FREEZER (2)
13	WCI 5308001016
14	5304509705 Frigidaire Refrigerator Grommet
15	WCI 5308009648
16	COVER-CRISPER PAN, MIDDLE
16A	GASKET-CRISPER COVER
17	WCI 3200687
18	WCI 5303001098
19	WCI 5303001099
20	WCI 3200663
21	WCI 3200688
22	WCI 3018651
23	WCI 5308017594
24	WCI 5308000808
25	WCI 5308000809
26	WCI 5303001276
27A	WCI 5303001280
27	WCI 5303001277
28	WCI 5303001288
29	CHANNEL-SHELF MTG (2)
30	5304455852 Frigidaire Refrigerator Screw
31	CHANNEL-WIRING
32	PLUG, BUTTON, CABINET LINER (NI)
33	SCREW 8-18 X 3/8 (NON-ILLUSTRATED)
34	WCI 5300176611
36	5303289051 Frigidaire Refrigerator Light Switch
37	INSULATION-MULLION
38	COVER-LIGHT SOCKET
39	STRAP-LIGHT MOUNTING
40	MOLDING, 3-DOOR THROAT
41	WCI 08000833
42	SOCKET-LIGHT/LAMP
43	WCI 08002800
44	WCI 5308012258
45	316538904 Frigidaire Oven Lamp Light
46A	TRIM-CRISPER COVER, UPPER (NON-ILLUSTRATED)
46	COVER-CRISPER PAN, UPPER
47	WCI 3200690
48C	WCI 5303200580
48B	SHELF-GLASS, CRISPER COVER (NON-ILLUSTRATED)
48A	SUPPORT-CRISPER CVR, LH (NON-ILLUSTRATED)
48	SUPPORT-CRISPER CVR, RH
49	WCI 3200544
