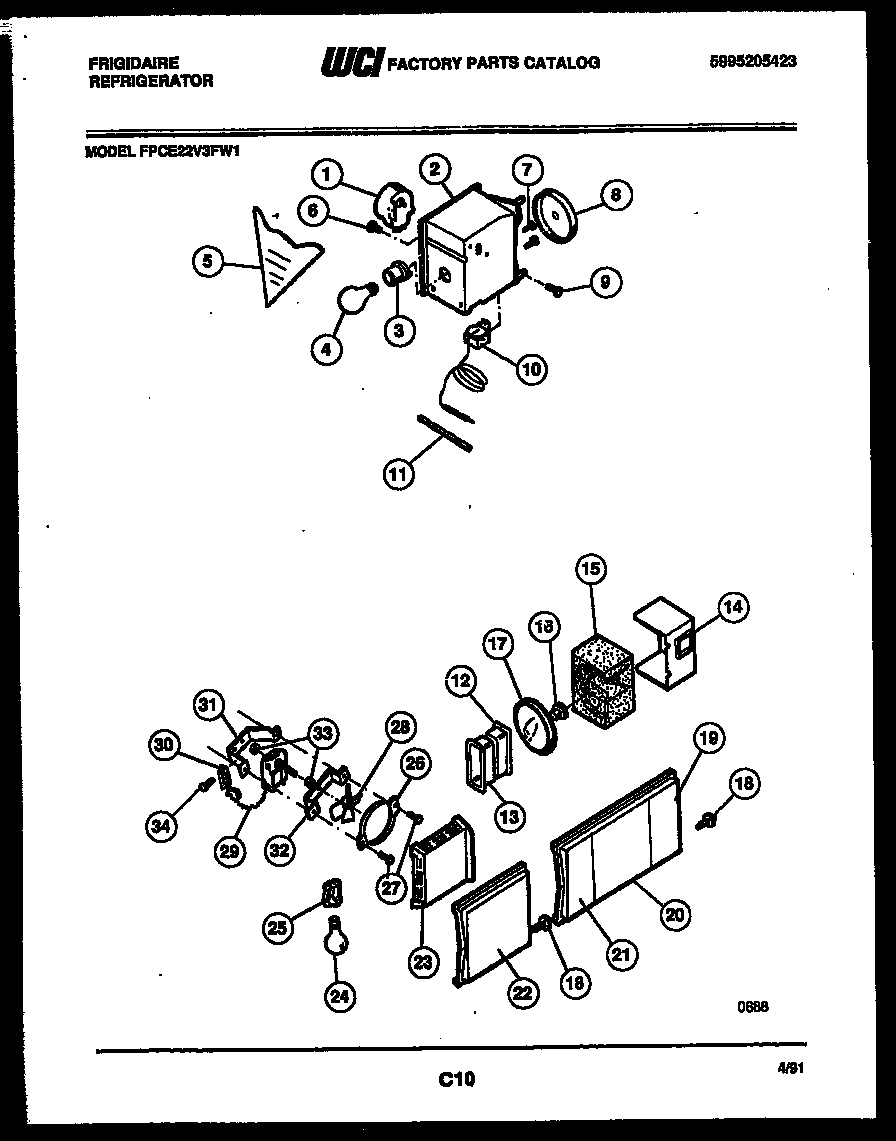

FPCE22V3FW1 06 – REFRIGERATOR CONTROL ASSEMBLY, DAMP

Products

Position	Product
1	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
2	WCI 5308017561
3	SOCKET-LIGHT/LAMP
5	WCI 3001269
6	5304455852 Frigidaire Refrigerator Screw
7	WCI 5303001260
8	WCI 5308010380
9	5304455649 Frigidaire Refrigerator Screw
10	WCI 5308000068
11	TUBE
12	WCI 5303001277
13	WCI 5303001276
14	WCI 5303211383
15	WCI 5308000771
16	WCI 5300185373
17	WCI 5308010379
18	WCI 5303001213
19	LABEL-REF LIGHT SHLD, RH (NON-ILLUSTRATED)
20	SHIELD-LIGHT, REFRIGERATOR
21	LABEL-REF LIGHT SHLD, LH (NON-ILLUSTRATED)
22	SHIELD-LIGHT, FREEZER
23	WCI 5316465401
24	316538904 Frigidaire Oven Lamp Light
25	218906802 Frigidaire Light Lamp Socket
26	RING-FAN ORIFICE
27	5304455650 Frigidaire Refrigerator Screw
28	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
29	5300158289 Frigidaire Evaporator Fan Motor
30	WCI 5308000107
31	BRACKET-MOTOR MTG, REAR
32	WCI 5303205118
33	G187559 Frigidaire Refrigerator Bushing
34	5304455651 Frigidaire Refrigerator Screw
