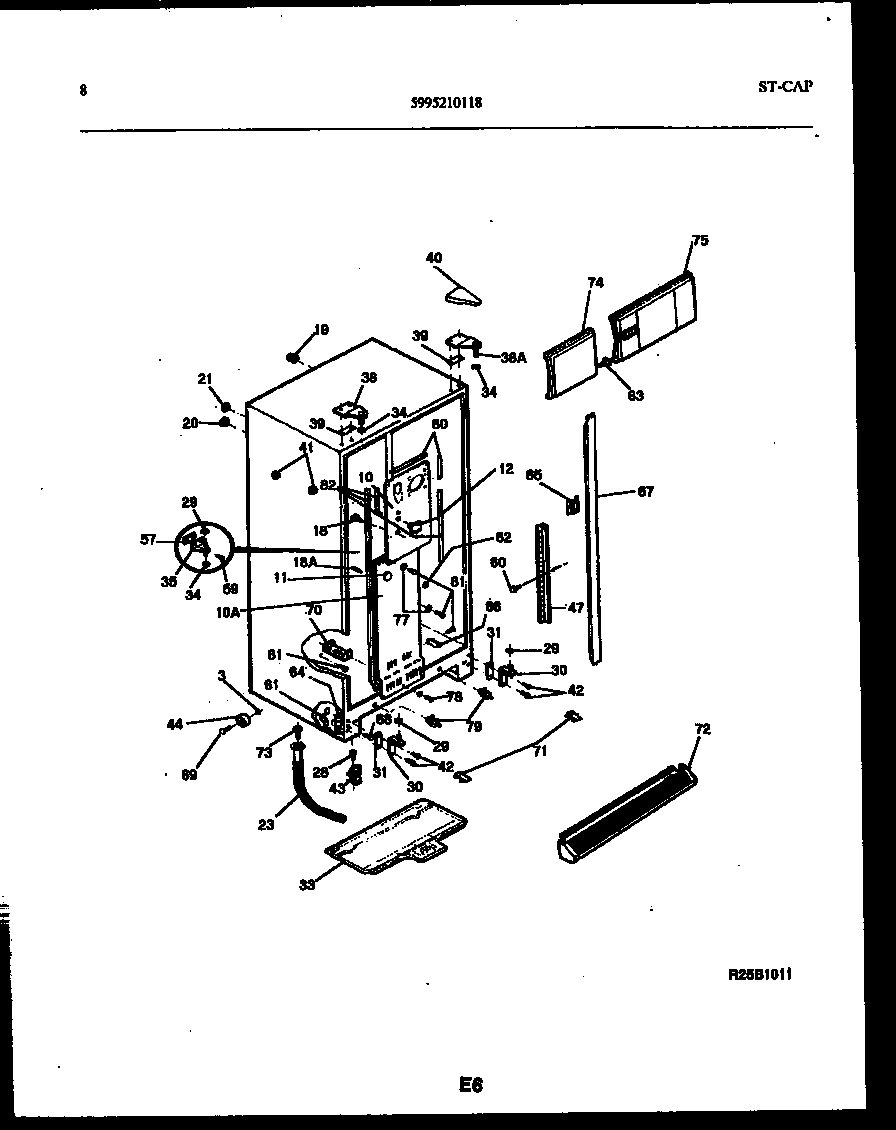

FPCE22V3PL1 05 – CABINET PARTS

Products

Position	Product
*56448	SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
3	Nut,push-on
10	WCI 5303006543
10A	WCI 08000824
10A	NUT, ``U`` TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
11	5303208309 Frigidaire Refrigerator Plug Hole
12	PLUG-DECORATIVE, ICE MAKER HOLE
18	SUPPORT-COIL COVER
18A	WCI 5303001250
19	TUBE-RUBBER
20	WCI 5303001286
21	WCI 5303001287
23	WCI 5303209723
23A	CLAMP-TUBE
28	SCREW-ROLLER ADJ (2) (NON-ILLUSTRATED)
29	WASHER, .28 X .62 X .19, NYLON
30	HINGE-BOTTOM
31	SHIM-BTM HINGE (3)
33	WCI 5303001026
34	WCI 5308000186
35	WCI 5300169531
38B	241710601 Frigidaire Refrigerator Screw
38	WCI 5303001062
38A	WCI 5308012934
38C	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
39	SHIM - UPPER HINGE
40	COVER-UPPER HINGE, WHITE
41	5304509705 Frigidaire Refrigerator Grommet
42	SCREW-HINGE MTG (2) (NON-ILLUSTRATED)
43	ROLLER-FRONT (2)
