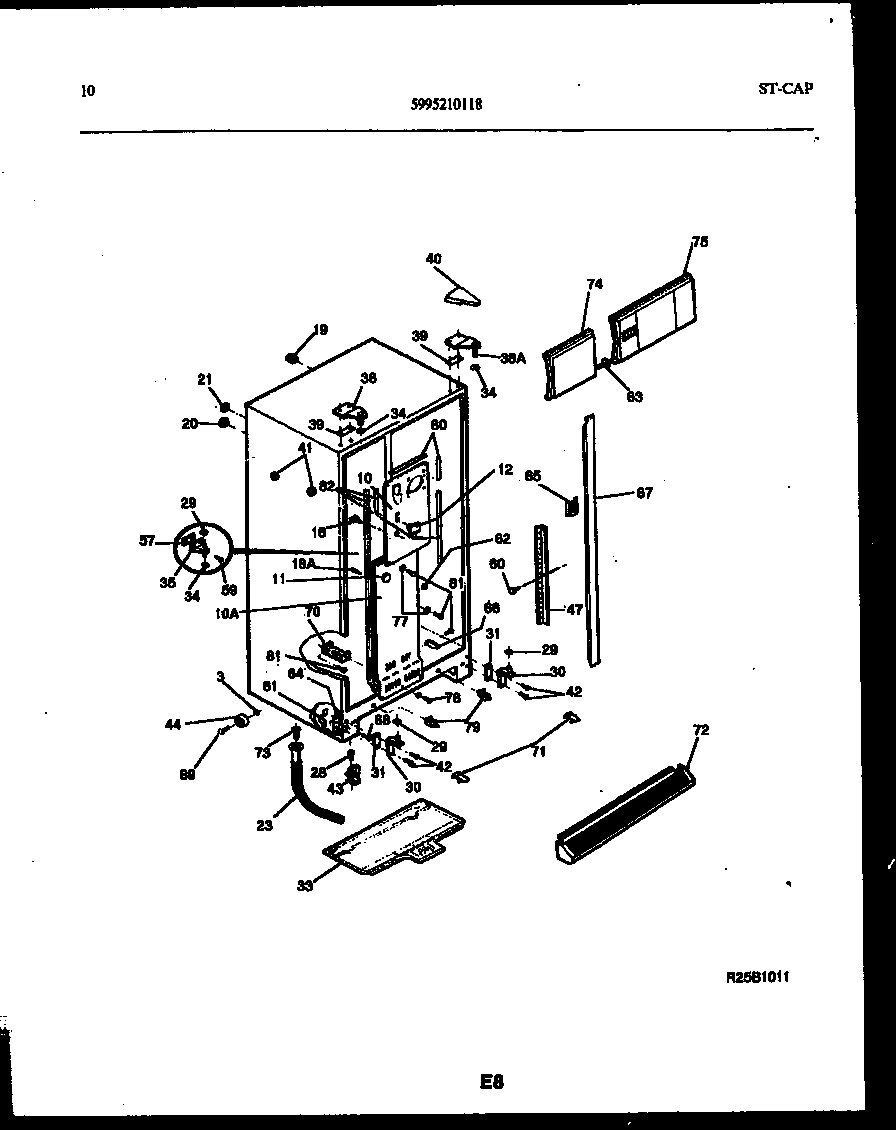

FPCE22V3PL1 06 – CABINET PARTSadmin2025-04-26T08:52:58+00:00FPCE22V3PL1 06 – CABINET PARTS
Products
| Position | Product |
|---|
| *56451 | CLIP-WIRING HARNESS |
| *56451 | PLUG, BUTTON, CABINET LINER (NI) |
| 44 | WCI 5303001030 |
| 47 | CHANNEL-SHELF MTG (2) |
| 57 | WCI 08002788 |
| 59 | WCI 5308012258 |
| 60 | 5304455852 Frigidaire Refrigerator Screw |
| 61 | WCI 5300077210 |
| 62 | WCI 5303001231 |
| 63 | WCI 5303001213 |
| 64 | WCI 5303001273 |
| 65 | WCI 5300169100 |
| 65 | WCI 5303001281 |
| 66 | DAMPER, MEAT KEEPER |
| 67 | WCI 5303916444 |
| 68 | WCI 5308000013 |
| 69 | WCI 5308000266 |
| 70 | WCI 5308000738 |
| 71 | CLIP, GRILLE (2) |
| 72 | WCI 3200661 |
| 73 | WCI 5308000853 |
| 74 | SHIELD-LIGHT, FREEZER |
| 75 | SHIELD-LIGHT, REFRIGERATOR |
| 75A | LABEL-REF LIGHT SHLD, RH (NON-ILLUSTRATED) |
| 75B | LABEL-REF LIGHT SHLD, LH (NON-ILLUSTRATED) |
| 77 | WASHER-NYLON,3/16 X 5/8 OD |
| 78 | 5304455651 Frigidaire Refrigerator Screw |
| 78A | WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED) |
| 79A | CLIP-CABLE |
| 79 | 5303289051 Frigidaire Refrigerator Light Switch |
| 80 | WCI 5303001219 |
| 81 | 5304455650 Frigidaire Refrigerator Screw |
| 82 | WCI 5303001233 |
