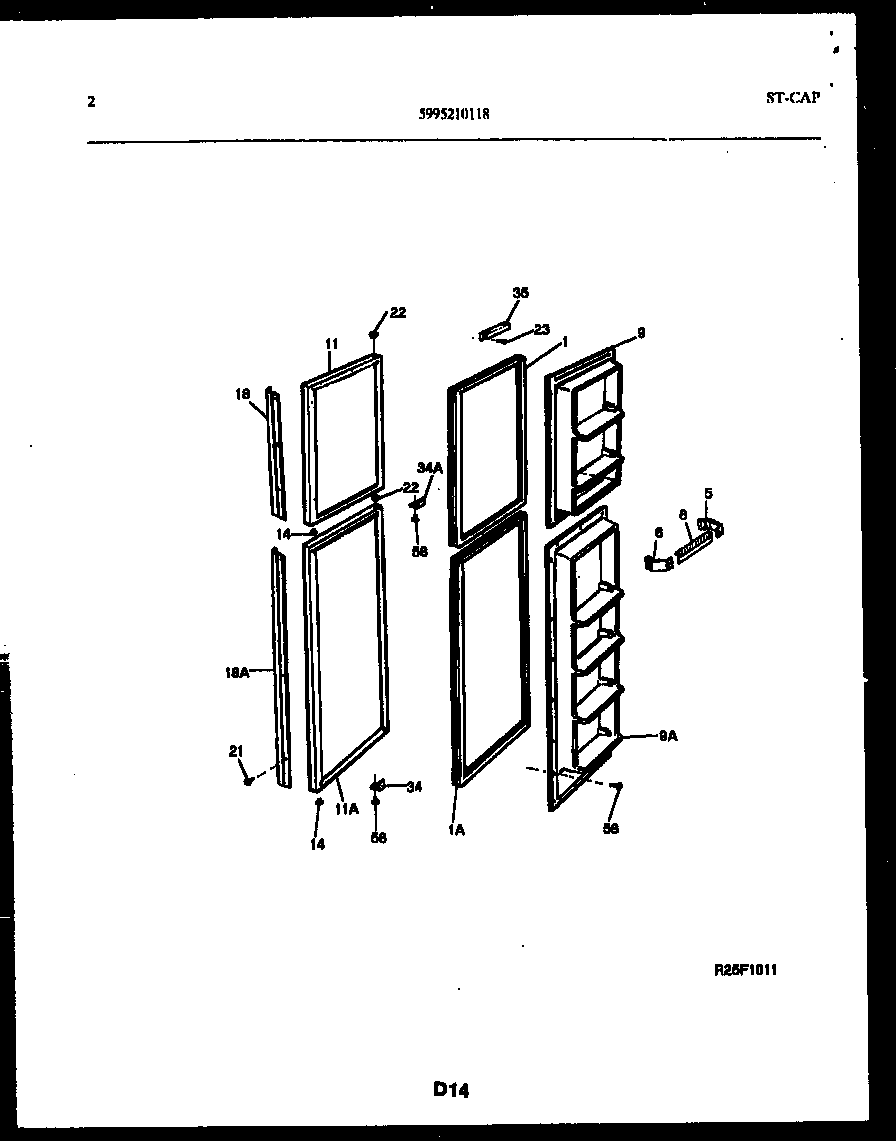

FPCE22V3PW1 02 – FREEZER DOOR PARTS

FPCE22V3PW1 02 – FREEZER DOOR PARTS

Written by

in

FPCE22V3PW1 02 – FREEZER DOOR PARTS

Products

PositionProduct
*56441INSULATION-BULK (NON-ILLUSTRATED)
1AGASKET-FRZR DOOR, MAGNETIC, LOWER
1GASKET-FRZR DOOR, MAGNETIC, UPPER
5SUPPORT-DOOR RACK, RH, (6)
6SUPPORT-DOOR RACK, LH, (6)
8WCI 3206367
9WCI 3018625
9AWCI 3200677
11AWCI 5303916992
11WCI 5303916995
14WCI 5315230801
18WCI 5303279298
18AWCI 5303279300
21SCREW-HANDLE MTG, CR OVAL HEAD, 10-24(D) X 5/8, WHITE,
22BEARING-HINGE
22WCI 5303001022
23WCI 5303001020
34WCI 5308000790
34AWCI 5308002802
35WCI 5303200272
585304455651 Frigidaire Refrigerator Screw
