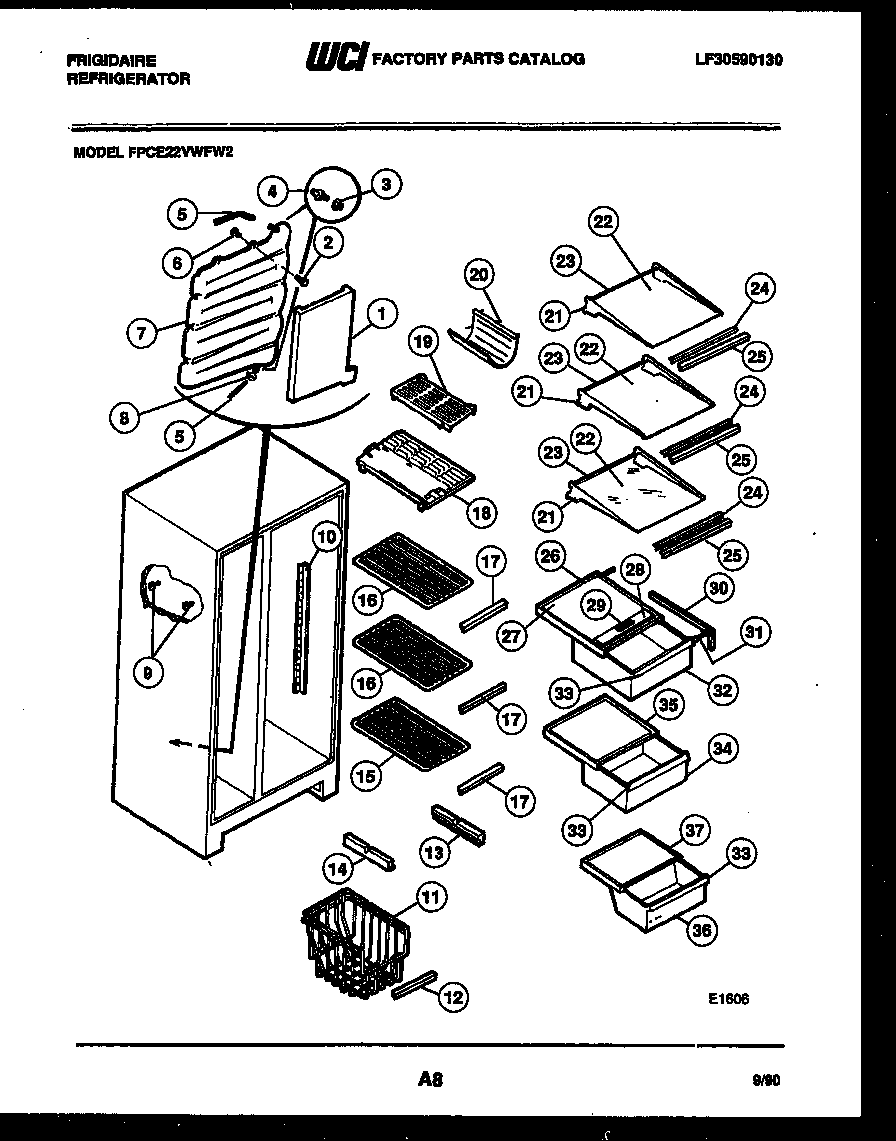

FPCE22VWFF2 05 – SHELVES AND SUPPORTS

Products

Position	Product
1	WCI 5308010332
1A	5304455650 Frigidaire Refrigerator Screw
2	131420300 Frigidaire Screw
3	WCI 5308015613
4	CONNECTOR - TUBE
5	5308010366 Frigidaire Refrigerator P1-Water Inlet Tube
6	SUPPORT-TANK (3)
7	WATER TANK
8	CLAMP-SUCTION TUBE (NON-ILLUSTRATED)
9	5304509705 Frigidaire Refrigerator Grommet
10	CHANNEL-SHELF MTG (2)
11	WCI 5308017594
12	WCI 3018651
13	WCI 5303001098
14	WCI 5303001099
15	WCI 08000908
16	SHELF-FREEZER (2)
17	WCI 3018646
18A	WCI 5308015550
18	WCI 5308015608
18	WCI 5303001213
19A	WCI 08015551
19	WCI 5303017212
20	RACK-WINE
21	FRAME-SHELF (3)
22	WCI 5303211091
23	TRIM-REFR SHELF, SNAP-ON, REAR, (3)
24	RETAINER-GLASS (3) (NON-ILLUSTRATED)
25	WCI 3200685
26A	WCI 5308009648
26	COVER-CRISPER PAN, UPPER
27	SHELF-GLASS, CRISPER COVER (NON-ILLUSTRATED)
28	TRIM-CRISPER COVER, UPPER (NON-ILLUSTRATED)
29	WCI 5303200580
30	SUPPORT-CRISPER CVR, RH
30A	SUPPORT-CRISPER CVR, LH (NON-ILLUSTRATED)
31	5304455852 Frigidaire Refrigerator Screw
32	WCI 3200690
33	WCI 3200544
34	WCI 3200687
35	COVER-CRISPER PAN, MIDDLE
35A	GASKET-CRISPER COVER
36	WCI 3200688
37	WCI 3200663
