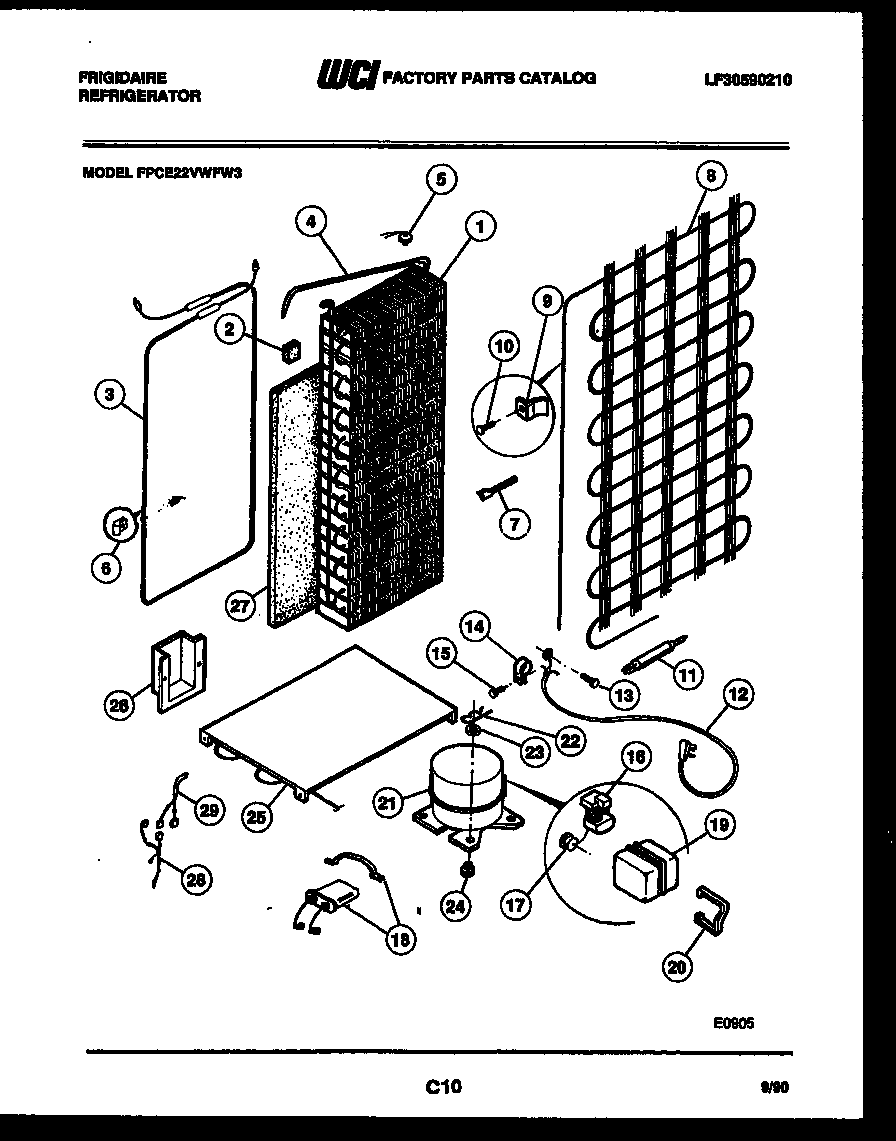

FPCE22VWFL3 10 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
*34280	WCI 09960005
1	WCI 3017362
2	WCI 08000828
3	WCI 08017562
4	WCI 08017565
5	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
6	WCI 08002777
7	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
8	WCI 08017113
9	WCI 08000296
10	5308000039 Frigidaire Refrigerator Screw
11	5303305677 Frigidaire Replacement Filter Dryer Filters
12	WCI 08000064
14	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
15	5304455651 Frigidaire Refrigerator Screw
16	WCI 08017226
17	WCI 08017526
18	CAPACITOR-RUN
20	5303006412 Frigidaire Refrigerator Cover Mounting Strap
21	COMPRESSOR W/ ELEC
22	CLIP (4)
23	WCI 08003597
24	218513300 Frigidaire Refrigerator Compressor Mount Grommet
25B	WCI 08002780
25A	WCI 08002782
25	WCI 08017112
25C	218843801 Frigidaire Refrigerator Screw
26	WCI 08013644
27	WCI 08009640
28	WCI 08009616
29	WIRING HARNESS-MAIN CONTROL
