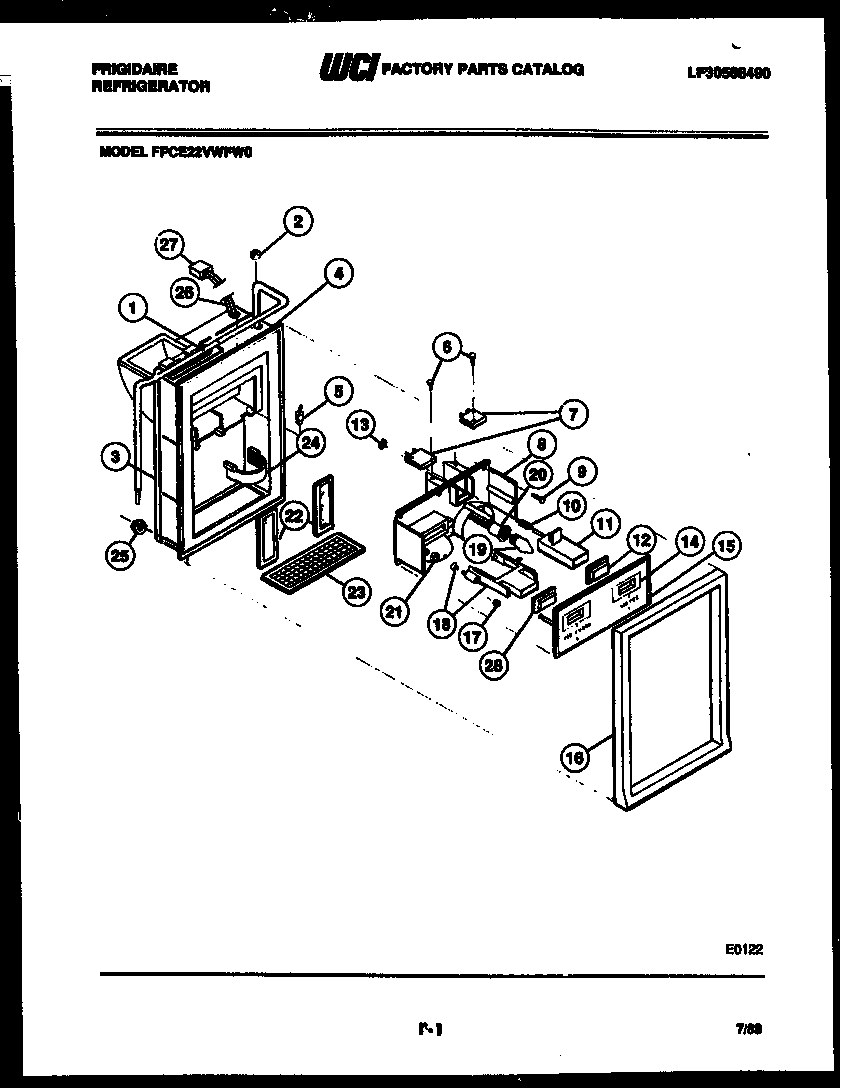

FPCE22VWFW0 07 – ICE DOOR, DISPENSER AND WATER TANKS

FPCE22VWFW0 07 – ICE DOOR, DISPENSER AND WATER TANKS

Written by

in

FPCE22VWFW0 07 – ICE DOOR, DISPENSER AND WATER TANKS

Products

PositionProduct
1WCI 8017048
2WCI 2832218
3WCI 8015588
4WCI 8017053
5WCI 8010326
6WCI 1123574
7WCI 8014530
8WCI 8015612
9WCI 8015610
10WCI 2832212
11WCI 8010320
12WCI 8012815
13WCI 2832214
14WCI 8015599
15WCI 8015587
16WCI 8015581
17WCI 2832213
18ACTUATOR & CUP ASSY-ICE
19WCI 5304506475
20WCI 8010324
21WCI 2832216
22WCI 8015598
23WCI 8015586
24WCI 8010327
25WCI 8017047
26WCI 8015604
27WCI 8010302
27AWCI 8014569
28WCI 8012816
