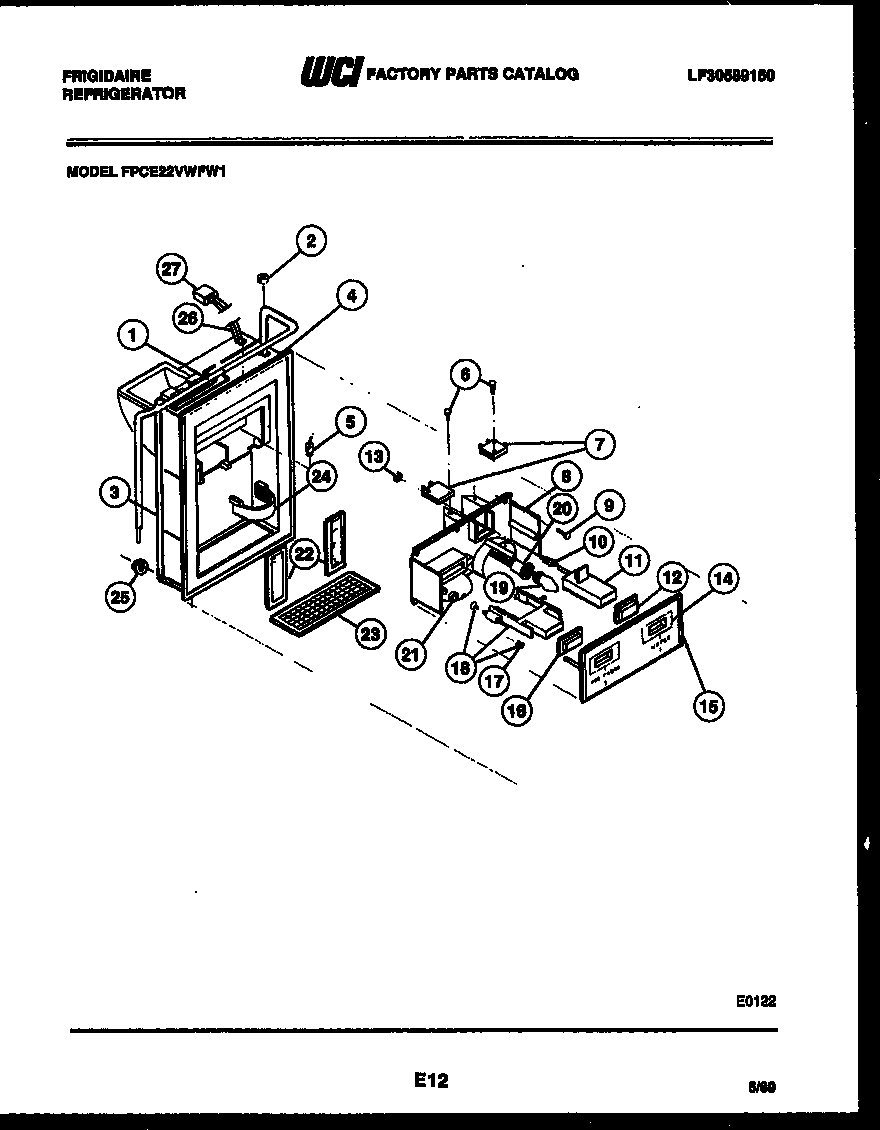

FPCE22VWFW1 07 – ICE DOOR, DISPENSER AND WATER TANKS

Products

PositionProduct
*46326KIT-DIODE
1WCI 08017048
2WCI 02832218
3WCI 08015588
4WCI 3204826
5WCI 08010326
6WCI 01123574
7WCI 08014530
8WCI 3204878
9WCI 08015610
10WCI 02832212
11WCI 08010320
12WCI 08012815
13WCI 02832214
14WCI 08015599
15WCI 08015587
16WCI 08012816
17WCI 02832213
18ACTUATOR & CUP ASSY-ICE
19WCI 5304506475
20WCI 08010324
21WCI 02832216
22WCI 08015598
23WCI 08015586
24WCI 08010327
25WCI 08017047
26WCI 08015604
27WCI 08010302
