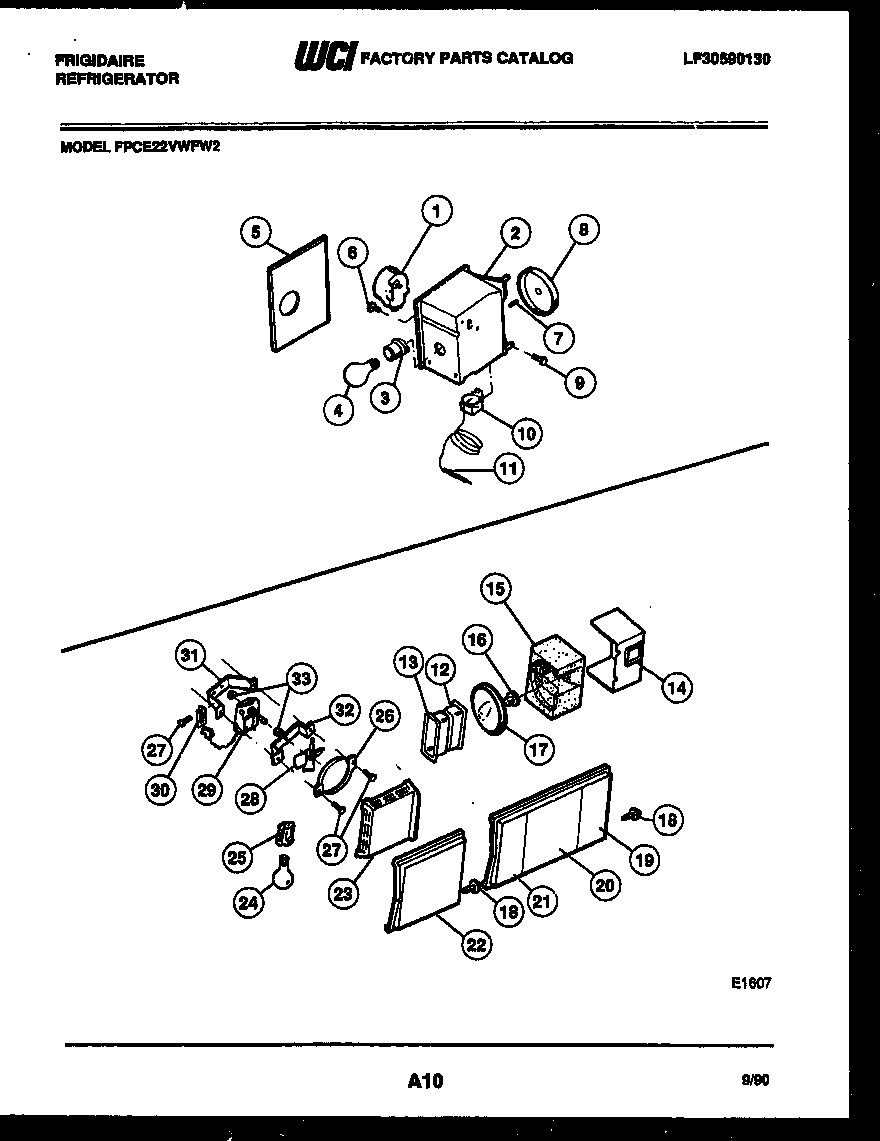

FPCE22VWFW2 06 – REFRIGERATOR CONTROL ASSEMBLY, DAMP

Products

Position	Product
*34134	WCI 5303015135
1	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
2	WCI 5308017561
3	SOCKET-LIGHT/LAMP
5	WCI 3001269
6	5304455852 Frigidaire Refrigerator Screw
7	WCI 5303001260
8	WCI 5308010380
9	5304455649 Frigidaire Refrigerator Screw
10	WCI 5308000068
11	TUBE
12	WCI 5303001276
13	WCI 5303001277
14	WCI 5303001252
15	WCI 5308000771
16	WCI 5308013429
17	WCI 5308010379
19	LABEL-REF LIGHT SHLD, RH (NON-ILLUSTRATED)
20	WCI 5308017596
21	LABEL-REF LIGHT SHLD, LH (NON-ILLUSTRATED)
22	WCI 5308015585
23	WCI 5308015557
24	316538904 Frigidaire Oven Lamp Light
25A	WCI 08015577
25	218906802 Frigidaire Light Lamp Socket
26	RING-FAN ORIFICE
27	218843801 Frigidaire Refrigerator Screw
28	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
29	5300158289 Frigidaire Evaporator Fan Motor
30	WCI 5308000107
31	WCI 5303001227
32	WCI 5303001226
33	G187559 Frigidaire Refrigerator Bushing
